Summary of Contents for Ubiquiti mFi mPort

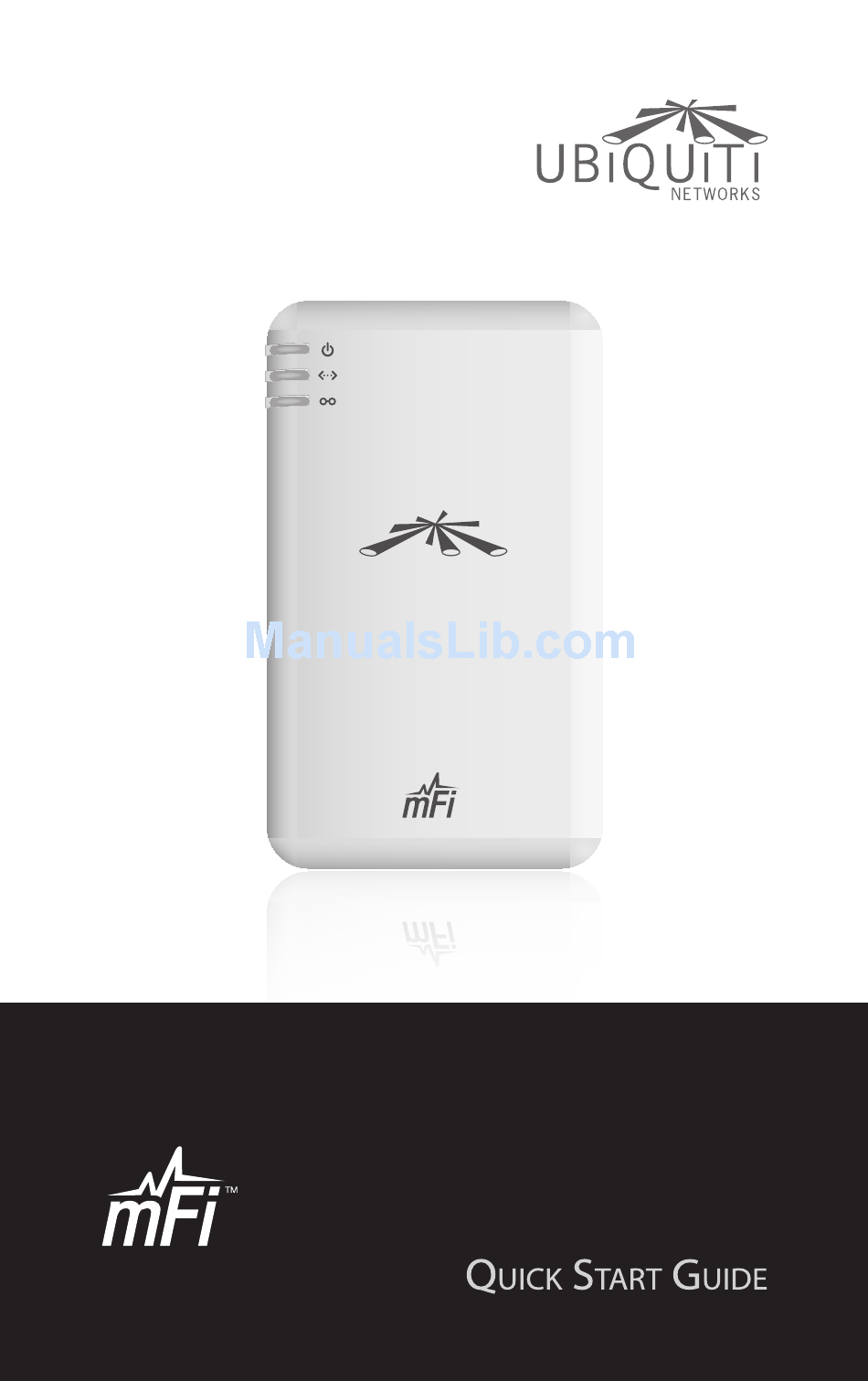

- Page 1 mPort...
-
Page 3: Package Contents
Introduction Introduction Thank you for purchasing the Ubiquiti mFi mPort. The mFi ™ mPort includes the mFi Controller software that allows you to monitor your devices using your Web browser. Package Contents mPort Wall-Mount PoE Adapter & Terminal Bracket Power Cord... -
Page 4: Hardware Overview
mPort ™ Hardware Overview Front View Power LED Ethernet LED Status LED Power The Power LED will light steady green when the mPort is properly connected to a power source. Ethernet The Ethernet LED will light steady green when an active Ethernet connection is made and flash when there is activity. -
Page 5: Side View
Hardware Overview Side View mFi RJ45 Ports Ethernet Port mFi Terminal Block Port Port* Wall-Mount Bracket * The USB Port is reserved for future use. -
Page 6: Hardware Installation
mPort ™ Hardware Installation Remove the Wall-Mount Bracket from the mPort by pressing the Release Tabs. Release Tabs... -
Page 7: Wall-Mount (Optional)
Hardware Installation Wall-Mount (Optional) Position the Wall-Mount Bracket with the Release Tabs on top. Release Tab Release Tab To secure the Wall-Mount Bracket to the wall: a. Use a pencil to mark the holes on the wall. b. Use a 6 mm drill bit to drill the holes in the wall. c. -
Page 8: Connecting Ethernet
mPort ™ Angle the mPort so that the notches on the bottom of the Wall-Mount Bracket are inserted into the mPort. Then press the mPort into the Release Tabs and snap it into place. Connecting Ethernet Connect an Ethernet cable to the Ethernet port on the mPort. - Page 9 Connecting Ethernet Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. Note: The mFi Controller software should be running on a system connected to the same LAN as the mPort.
-
Page 10: Software Installation
mPort ™ Connect the power cord to the power port on the PoE Adapter. Connect the other end of the power cord to a power outlet. The Power LED should light up on the mPort. Software Installation Insert the mFi Controller software CD into your CD-ROM drive and follow the instructions for your specific computer type. - Page 11 Software Installation Mac Users Click the Install icon. Click Continue and follow the on-screen instructions to install the software.
- Page 12 mPort ™ Go to Go > Applications and double-click the mFi icon. Proceed to Configuring the mFi Controller Software on page PC Users Launch mFi-installer.exe. Click Install.
- Page 13 Software Installation If your computer doesn’t have Java 1.6 or above installed, you will be prompted to install it. Click Install to continue. Ensure the Start mFi Controller after installation option is checked and click Finish.
- Page 14 mPort ™ Note: The mFi Controller software can also be launched from Start > All Programs. Configuring the mFi Controller Software The mFi Controller software startup will begin. Click Launch a Browser to Manage Network.
- Page 15 Software Installation The mFi Configuration Wizard will appear the first time you launch the mFi Controller software. On the Welcome screen, select your language and country. Click Next. Select the device(s) that you want to configure. The Refresh button can be used to refresh the list of devices.
- Page 16 mPort ™ Enter an administrator name in the Admin Name field. Enter a password in the Password and Confirm fields. Click Next. Click Finish to confirm your settings.
- Page 17 Software Installation A login screen will appear for the mFi Controller management interface. Enter the Admin Name and Password that you created and click Login. Refer to the User Guide on the CD-ROM for instructions on using the mFi Controller software. Refer to the Quick Start Guide included with your mFi device for details on connecting it to the mPort.
-
Page 18: Specifications
mPort ™ Specifications mPort Dimensions 100 x 60 x 27.5 mm (H x W x D) 100 x 60 x 36.5 mm (with Bracket) Weight 4.2 oz (with Bracket) Power Supply 24V, 0.5A Surge Protection Integrated PoE Adapter (Included) Max. Power Consumption Networking Interface (1) 10/100 Ethernet Port... -
Page 19: General Warranty
Products furnished hereunder shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS sole and exclusive obligation under the foregoing warranty shall be to repair or replace, at its option, any defective Product that fails during the warranty period. -
Page 20: Warranty Conditions
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of the products is error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products for buyer’s... -
Page 21: Electrical Safety Information
Safety Notices Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. -
Page 22: Rf Exposure Warning
™ Compliance Changes or modifications not expressly approved by Ubiquiti Networks, Inc. could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. -
Page 23: Industry Canada
CE marking. Declaration of Conformity Česky [Czech] UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi ustanoveními sm rnice 1999/5/ES. - Page 24 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska [Icelandic] Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger...
- Page 25 UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist tajiem noteikumiem.
- Page 26 ™ mFi Products Ubiquiti Networks offers a variety of products for the mFi platform. For additional details, visit www.ubnt.com/mfi Ceiling Mount Wall Mount Temperature Motion Sensor Motion Sensor Sensor mFI-MSC mFi-MSW mFi-THS Current Sensor Door Sensor Thermostat mFi-CS mFi-DS...
-
Page 28: Ubiquiti Networks Support
Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com w w w . u b n t . c o m © 2012 Ubiquiti Networks, Inc. All rights reserved.
