- Page 1 Electrical Components Ascent Series...
- Page 2 Index Description p3-4 Parts Ascent Series Electrical installation Assembly instructions p6-7 Green Furniture Concept...

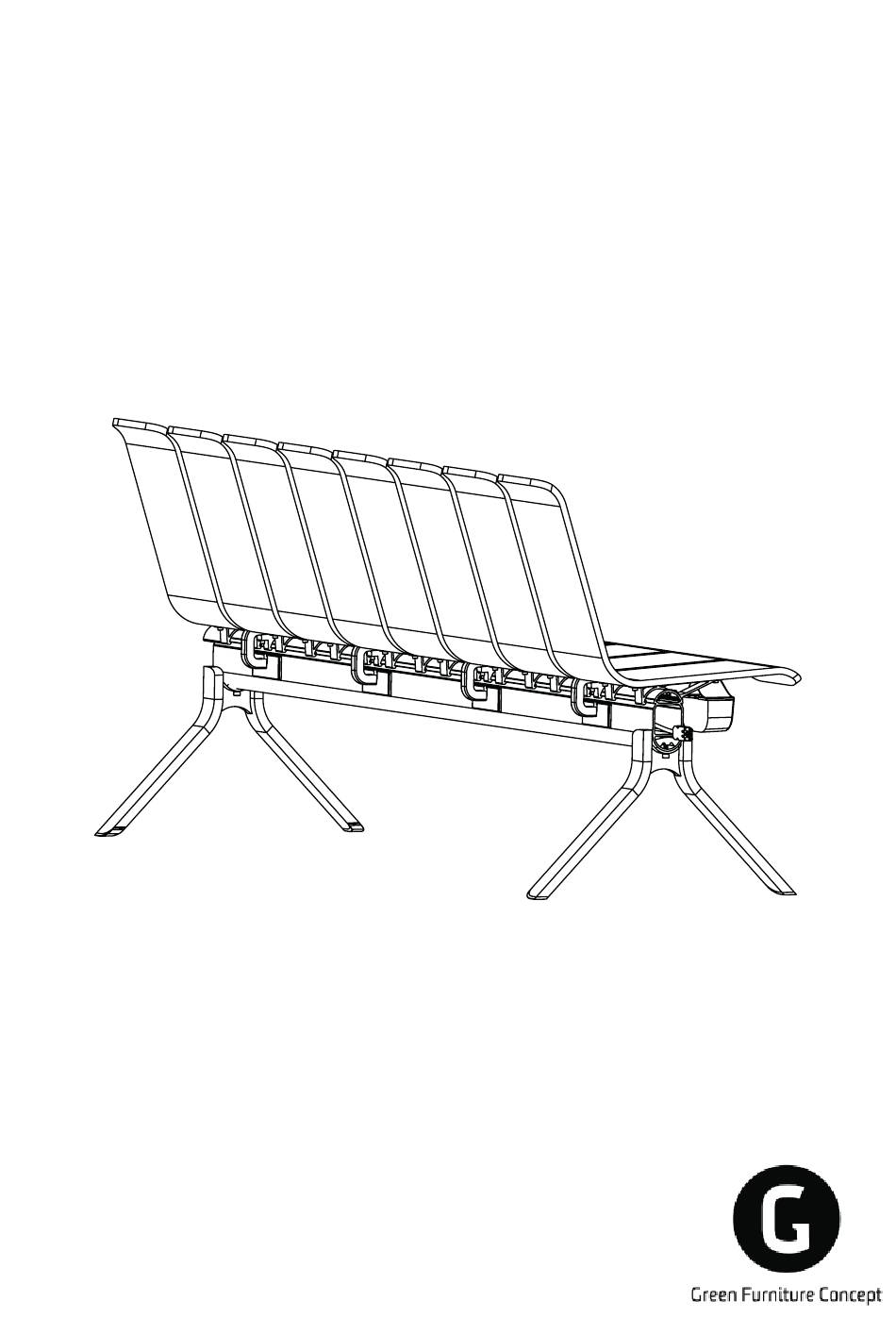

- Page 3 Ascent Single Back configuration as an example but the instructions are applicable to any Asent Series modules. In the Ascent Series all the cabeling are hidden and not visible after in- stalment as a security precaution. Cables should be installed in every module before connecting them in to planned configuration.
- Page 4 Ascent Series Electrical installation Make sure when assembling the electricity that all cables are in the same direction so that the power can flow through the whole configuration. Depending on the position of the starter cable Starter cable position will then have make...
- Page 5 Parts Ascent Series Electrical Installation When connecting an Ascent Series configuration to your electricity source you will need to do the following steps. Each Ascent module comes with one of three different cable kits but the installa- tion process is the same.
- Page 6 Before connecting the cables, make sure To connect two modules, push them that they are inserted to the beams in the close together and connect the spiral right direction so that a male connector cables. meets a female connector. Green Furniture Concept...
- Page 7 After attaching cover lids the general assembly of electricity on Ascent modu- les are complete. See seperate manuals for instalation of chargers and how the modules should be assembled together. Green Furniture Concept...
