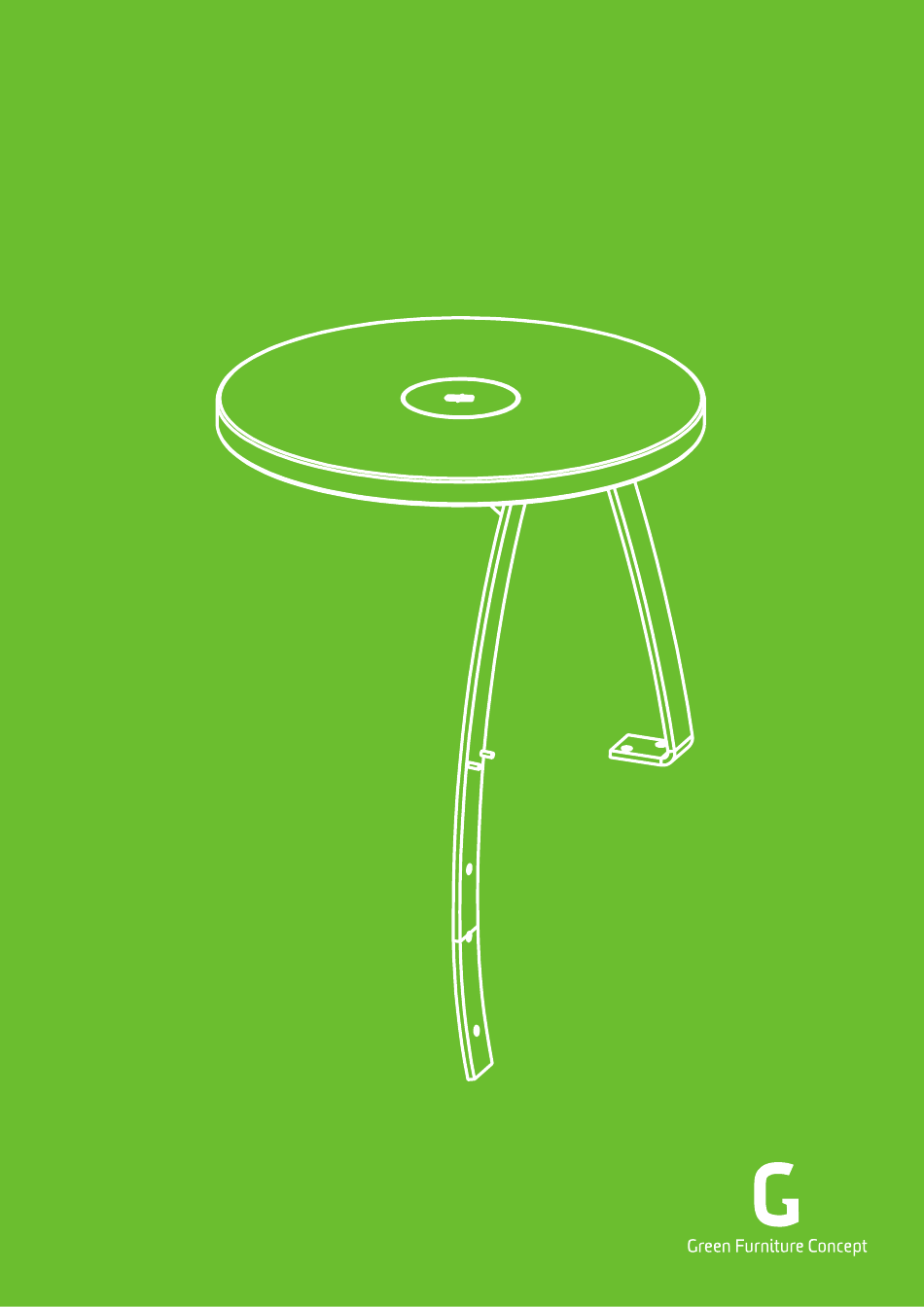

- Page 1 Nova C Series Add Ons Nova C Table Wireless...
- Page 2 Product desription Recycling Assembly instructions Nova C Table Wireless p3-6 Electrical instructions Nova C Table Wireless p7-10...

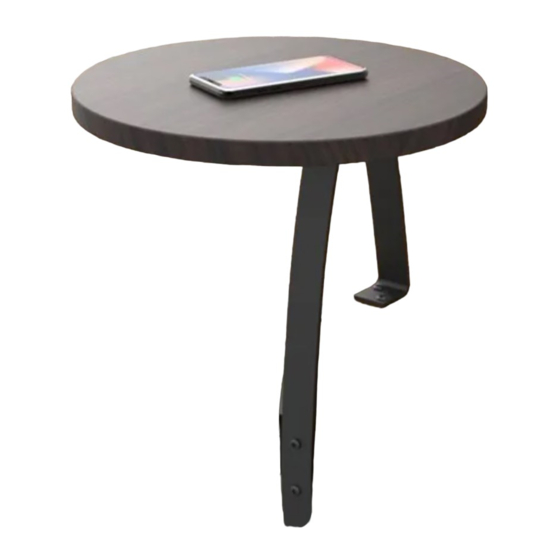

- Page 3 Nova C Table Wireless can be placed in the middle of any Nova C Back or Nova C Double module. Material Table top: Massive oak treated with hardwax oil. Material table holder: Powder coated steel. Nova C Add Ons Green Furniture Concept...
- Page 4 Ribs and table tops are made of wood and adhesive and are sorted as combustible. Glides are made of HDPE and are sorted as plastic. Nova C Add Ons Green Furniture Concept...
-
Page 5: Cable Channel
(x2 Charger screws included) Charger Cable Box Cable Channel Cable clip Domehead-nut Bolt B x5 Screv A 5x20 Torx Washer A x1 Metal plate Cable kit Screw-nut A x5 Grommet x1 Bend protection x1 Nova C Add Ons Green Furniture Concept... - Page 6 Attach the Table top to the Table stand using Screw A in all seven holes. Note: make sure that Thread the charger cable through the hole in the logo on the table top is placed in correct the Table stand. direction. Nova C Add Ons Green Furniture Concept...
- Page 7 Cable channel. Metal plate Attach the Charger Cable Box to the wide rib on Assemble table with Bolt B, Screw-nut A, Metal your bench using screw A. plate and Washer A. Nova C Add Ons Green Furniture Concept...
- Page 8 Assembly instructions Nova C Table Wireless Finnished assembly of Nova C Table Wireless. Nova C Add Ons Green Furniture Concept...
-
Page 9: Product Description
The ZENS Charger comes with a CE marked cable that connects to the Wieland Connector. The length of the cable is 300mm by standard but can be made with a custom length if needed.. Nova C Add Ons Green Furniture Concept... - Page 10 1 x ZENS Charger (Orange) (Green) Cable Kit (Standard: 1 kit per bench) 1 x Interconnector Cable 1 x Slimline Male Wieland 1 x Wieland Adaptor Block 7 x Cable Clip (Yellow) (Red) (Purple) (Blue) Nova C Add Ons Green Furniture Concept...
- Page 11 Wieland. Connect the Wieland cable from the Carger box Attach the Interconnection cable to the and the Interconnection cable to the bench using the Cable clips. Wieland Adaptor Block. Nova C Add Ons Green Furniture Concept...
- Page 12 Product description Nova C Table Wireless Nova C Table Wireless Nova C Table Wireless on a straight Nova C Back configuration. Nova C Add Ons Green Furniture Concept...
