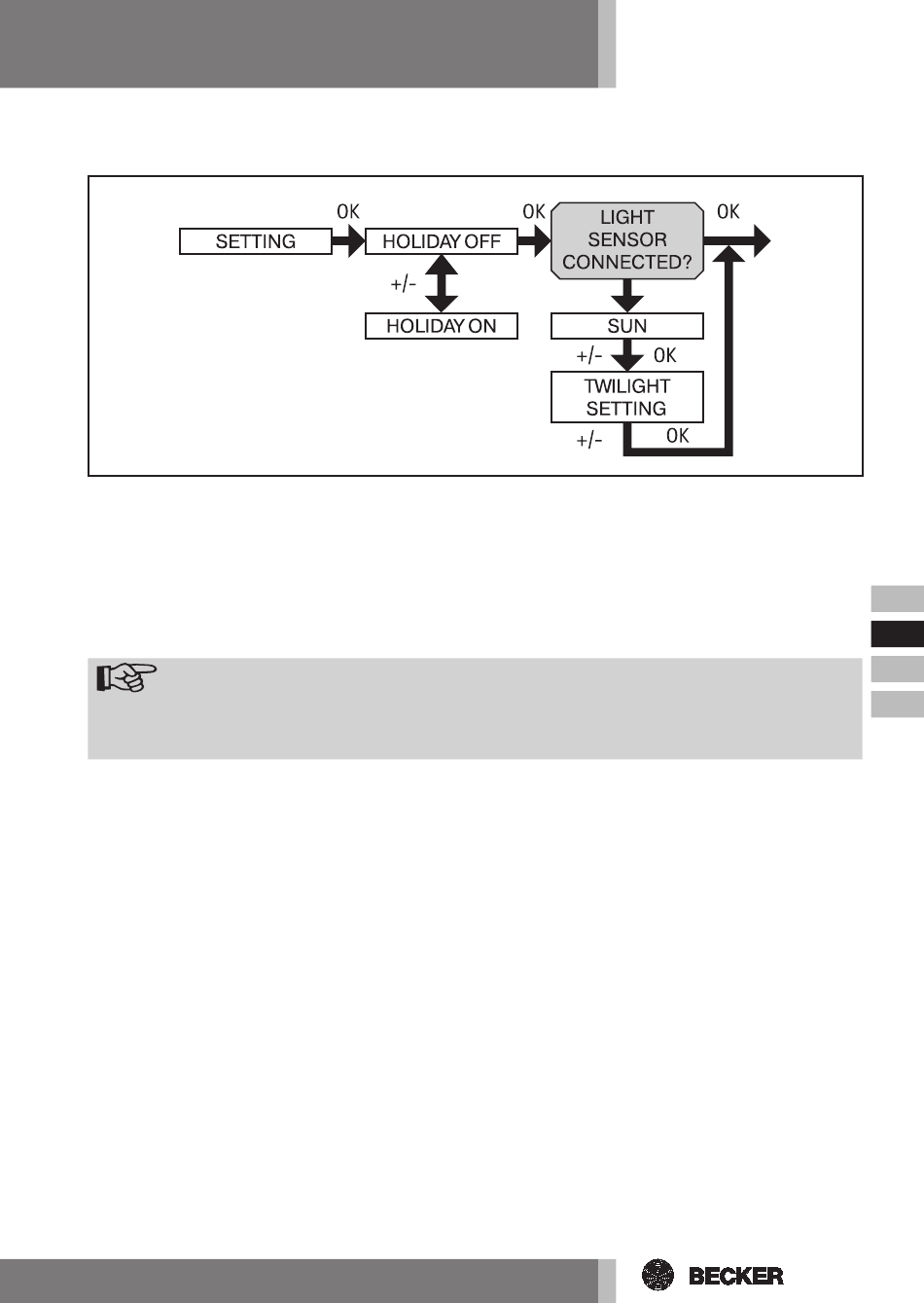

SETTING
HOLIDAY, LIGHT SENSOR (Holiday OFF/ON, sun/twilight setting)
Press the MENU button.
1.
2. To select the SETTING menu, press the + button until SETTING appears.
Confirm by pressing OK.
3.
4. HOLIDAY ON / OFF will appear.
You can set the holiday function to ON or OFF by pressing the +/- button.
5.
Confirm your selection by pressing OK.
6.
Note
This dialog window will only be displayed if a light sensor is connected
to the device.
7. You have confirmed the holiday function. SUN will appear.
8. The value set is displayed.
You can reset the sunlight setting by pressing the +/- button. (The two digits
9.
at the left of the display show the current light value)
10. Confirm your entry by pressing OK.
To set the TWILIGHT SETTING, follow the same procedure as for SUN.
11. The function SUN/TWILIGHT SETTING has now been set.
12. Please read on for further programming options using the SETTING
menu.
