Aiphone AP-10AS/C Instructions

Add-on Selectors for the AP-M/C High Powered System
AP-10AS/C, 10-call
The AP-10AS/C, AP-20AS/C and AP-40AS/C add-on selectors are designed to function with the AP-M/C High
Powered System. Multiple add-on selectors can be added to a master station along with a variety of sub stations to
create a communication system tailored to a user's needs. All standard AP-M system accessories can be used in
conjunction with the add-on selectors.
SPECIFICATIONS:
Power Source: 110V AC
Power Consumption: 45W (Max.), 4W (Standby)
Communication Output: 300mW at 8 or 16 ohms (receive from subs and master to master)
10W at 8 or 16 ohms (transmit to subs)
Communication: Push-to-talk, release-to-listen (TALK button on master), hands free at sub station.
Calling: Master to sub or other master: By voice (TALK on master) or tone (CALL on master)
Sub to master: Call button on sub activates tone and LED at master,
remaining lit for approximately 20 seconds.
Wiring: One pair homerun from sub stations
(Single call subs to nearest master, dual call subs to both masters)
2 pair plus one pair for each station; master to master
Twisted cable is required. Shielded cable is recommended.
Wiring Distance: 510' with 22AWG; 1,225' with 18AWG.
AP-nAS/C
AP-20AS/C, 20-call
- INSTRUCTIONS -
1
3 4 5
Individual Components for System:
AP-nM/C Master station modified for add-on selector connection
AS-3A
AS-3WA
AS-3N
NP-B
AH-108
LS-NVP
LS-NVP-W
SBX-NVP Surface mount box for LS-NVP and LS-NVP-W
2

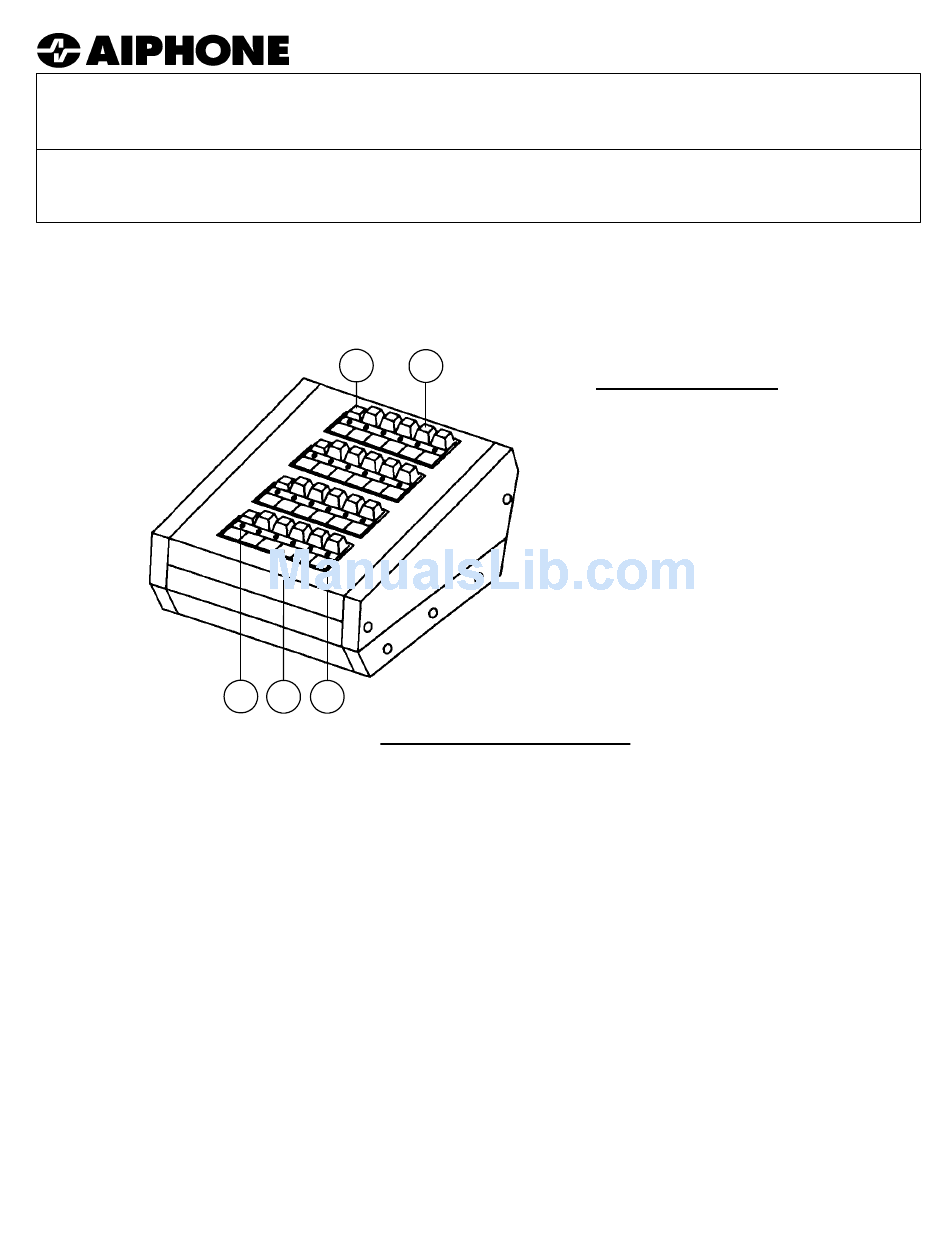

NAMES & FUNCTIONS:
1. OFF button
2. Selector button
3. OFF LED
4. Directory card
5. Station selector LED
AP-nAS/C TERMINAL DEFINITIONS:
1~40
E
Desk or wall mount sub station
2-call desk or wall mount sub station
Ceiling mount sub station
Call button
8 ohm, 10 Watt horn speaker
Vandal resistant sub station
Vandal and weather resistant sub station
AP-40AS/C, 40-call
Station number
Common communication
Special
Order
