There will be one HMI screen to illustrate the outputs on during the cycle time.

Screen Editor Programming

We need to program three screens.
1. The initial screen will display the RTC current time and date, and have two
screen jump buttons: one to jump to the setting the RTC screen, with the
second to jump to the output cycle screen.
2. The RTC setting screen will have 6 numeric data entries and a screen jump
button to go back to the initial screen.
3. Output cycle screen will have 4 lamps to display the state of %Q01 to %Q04.
There will also be a numeric data function to display the RTC seconds and a
text table to display the RTC day of the week.

Initial Screen

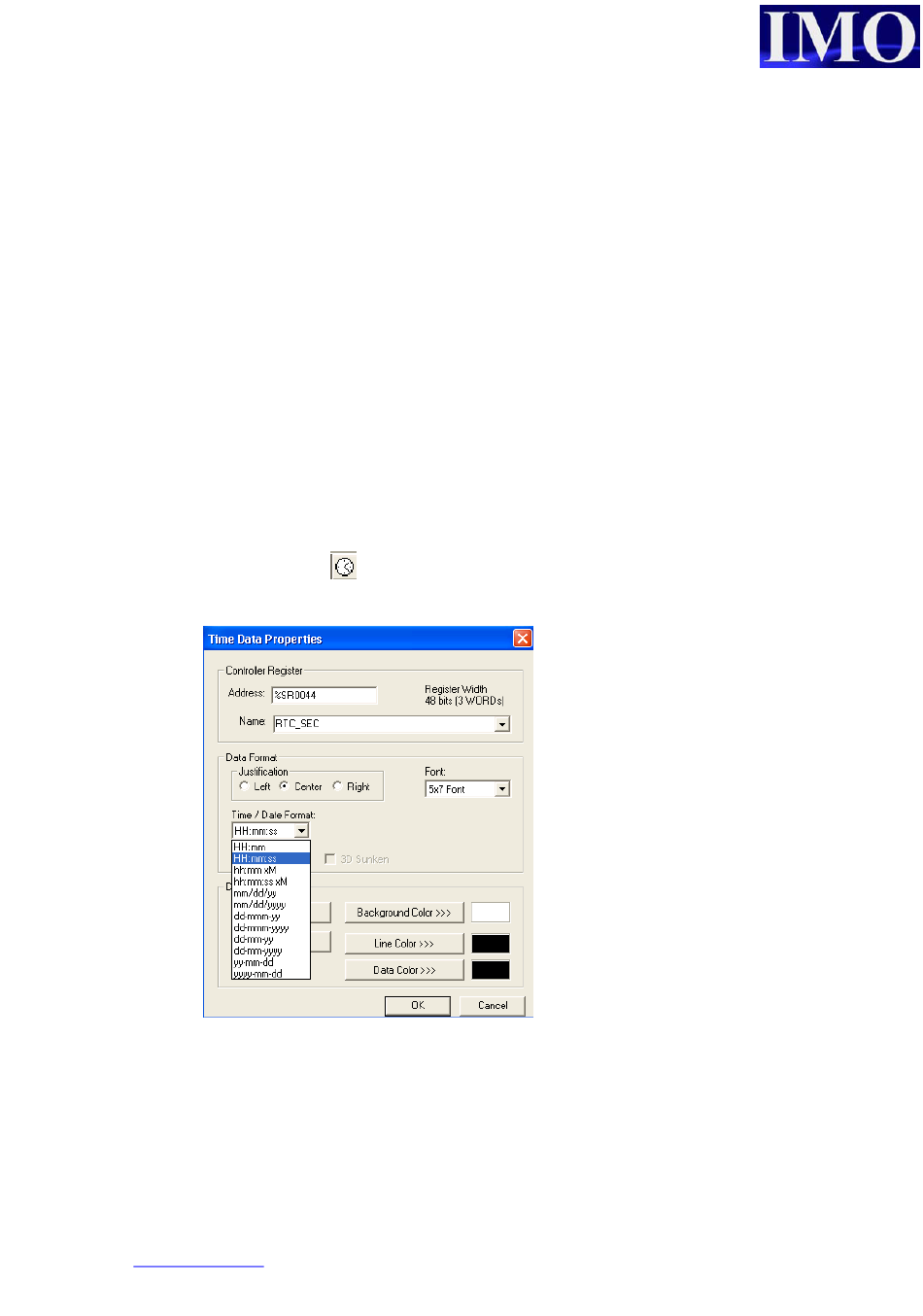

Click the Time Data icon
the screen. Double click and enter the data as shown.
www.imopc.com
an insert it into the screen. Position it to the top left of
9
Enter the starting register as
%SR044 and the next 2
registers will also be used.
This will provide the hours,
minutes and seconds for
display.
Select the format HH:mm:ss
Click OK when complete.
