Synchronising the RTC with the PC

3

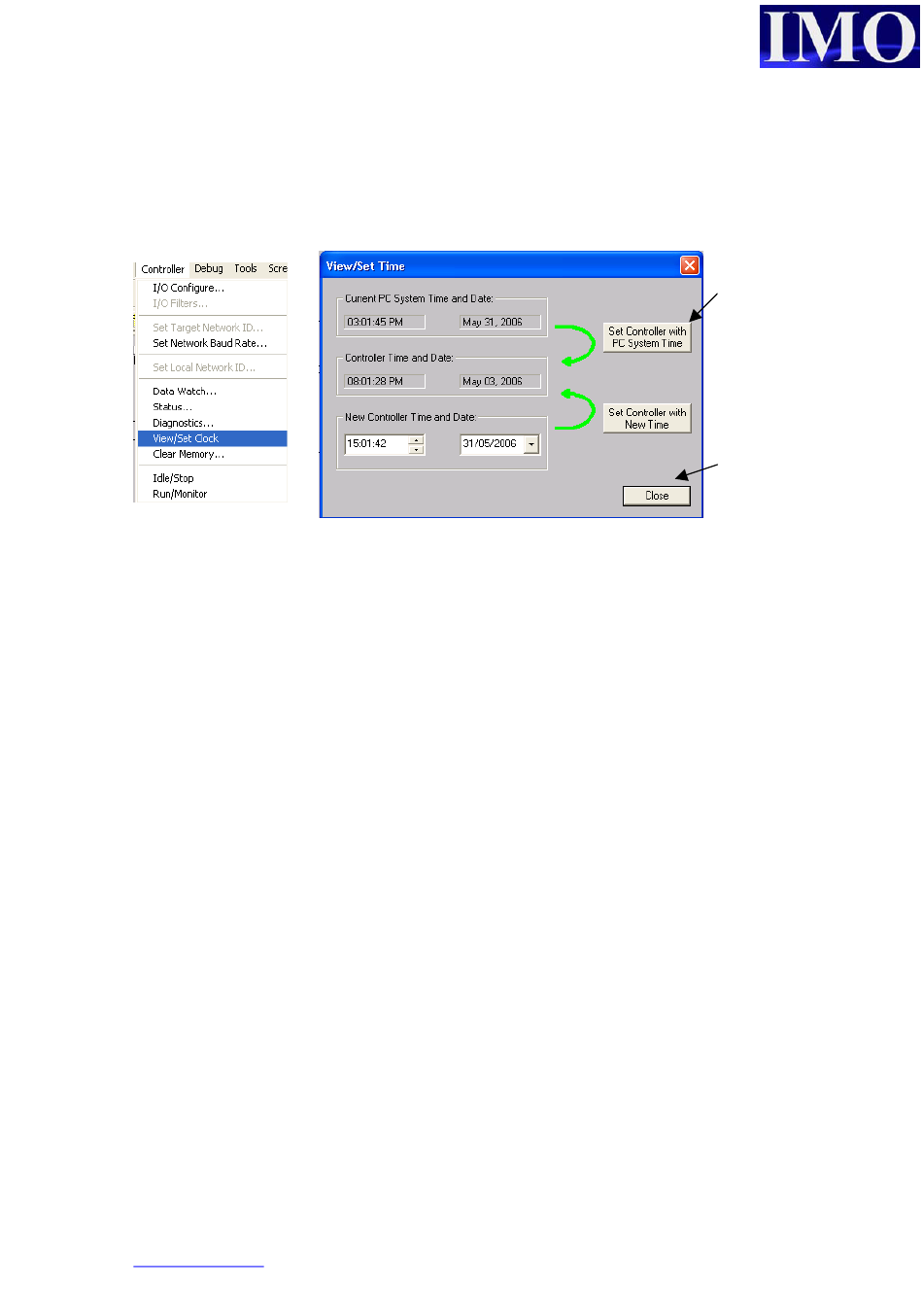

Connect the i to the PC using the programming cable and configure the I/O. Select
from the controller menu " View/Set Clock"

Programming the Ladder Logic

To enable the user to set the RTC we will need to use the function block "S_Clk".
3
However the i must initially synchronise the clock with the programming PC, to
ensure that the clock is correct before the user can edit it.
www.imopc.com 5
Click this
button to
Synchronise the
RTC to the PC
Click the
close
button to
finish.
