Changing the RTC values through Ladder Logic

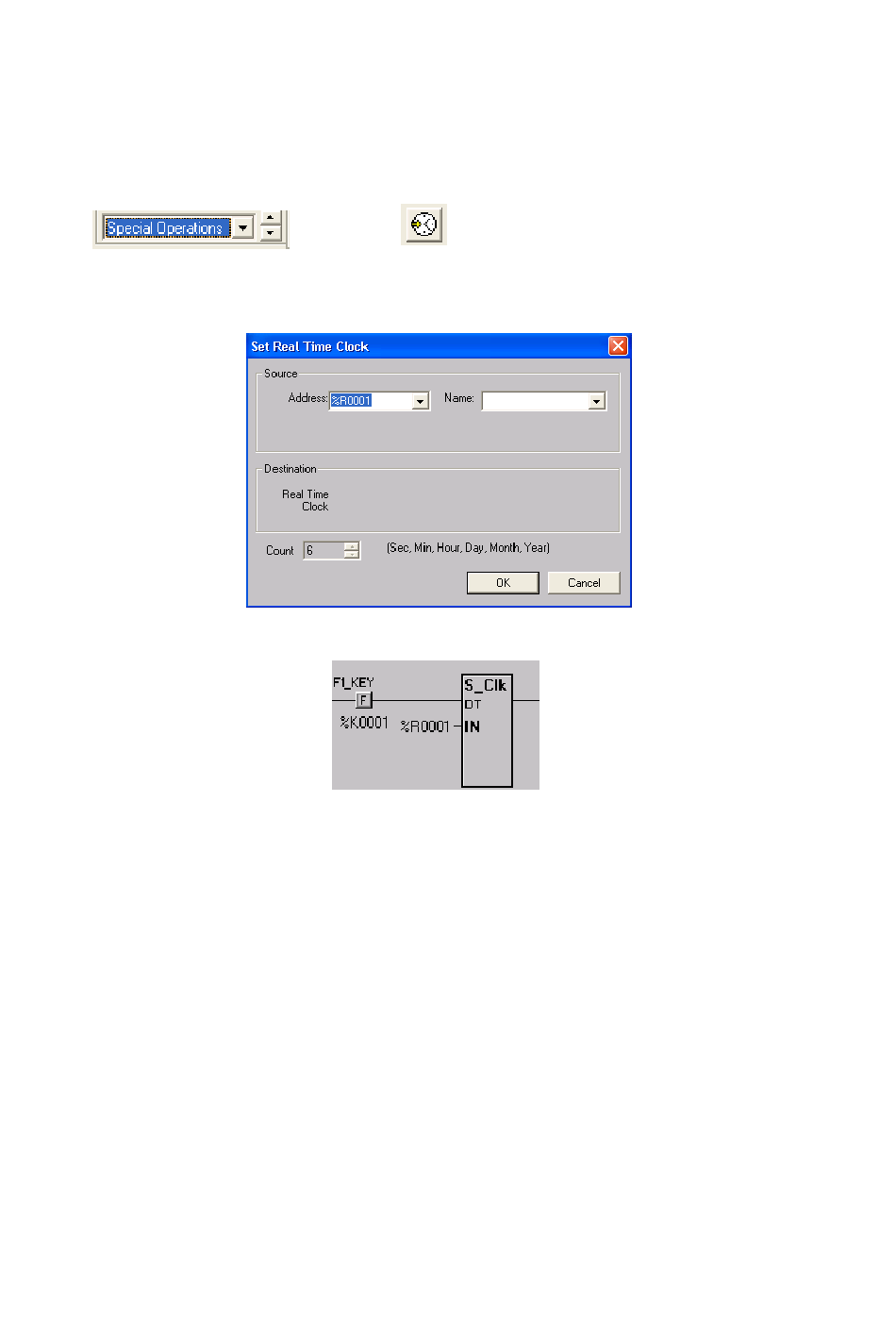

Select the S_Clk function icon from the Special Functions menu.
Select the function and insert it into the ladder diagram.
Enter the starting
register that will
contain data to
be moved into
the SR register.
The next 6
adjacent registers
will also be used.
Insert a NO
contact and
st
assign it to the 1
function key
There will be two screens associated with this piece of code; One to enter the values
into the registers %R01 to %R06 and a second to view the current time and date of the
RTC.
© IMO Precision Controls ltd.
Real Time Clock
6
The RTC will be
updated with the values
in registers %R01 to
%R06 when the F1 key
is pressed
