Fujikura FSR-02 Recoater Basic Operation Manual
Fujikura FSR-02 Recoater Basic Operation Manual
1.
PURPOSE
The purpose of this instruction manual is to provide basic instructions on the common functions of the FSR-02
recoater. The FSR-02 is used to recoat and proof test optical fiber splices.
2.
SCOPE
This instruction manual applies to all work stations and operators involved with optical fiber splicing at Widget
Associates.
3.

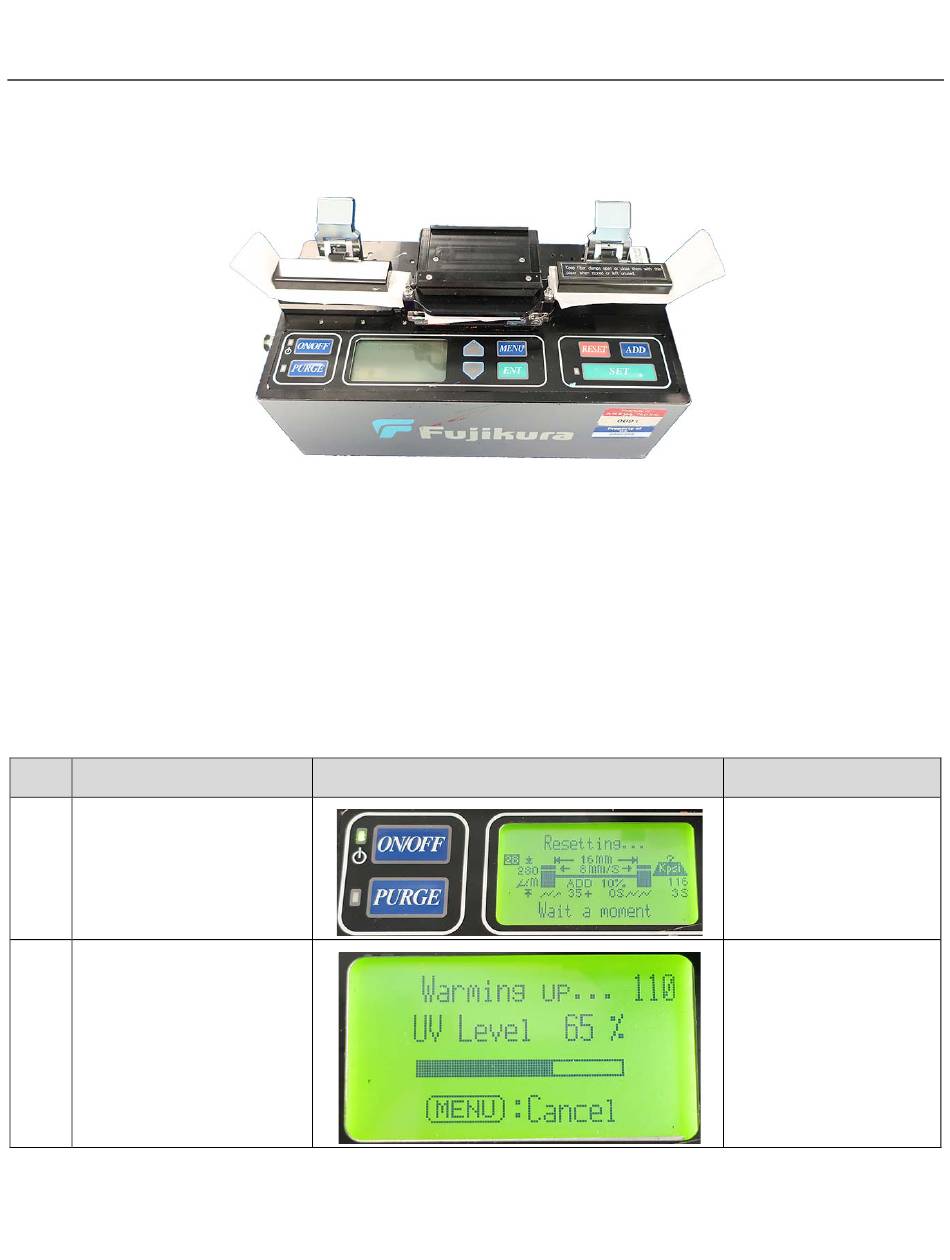

OPERATING THE FSR-02 RECOATER

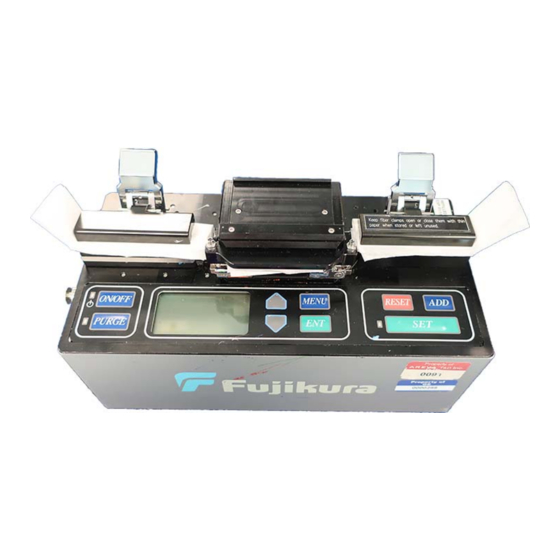

Step
Task
1
Press and hold the ON/OFF
button to turn on the
recoater.
2
Allow the recoater to warm
up.
Illustration
Notes
The resetting function
takes a few moments to
complete.
The mold must be closed
for the warm up function
to proceed.
Page 1 of 4
