Summary of Contents for Shure ShurePlus MOTIV MV88

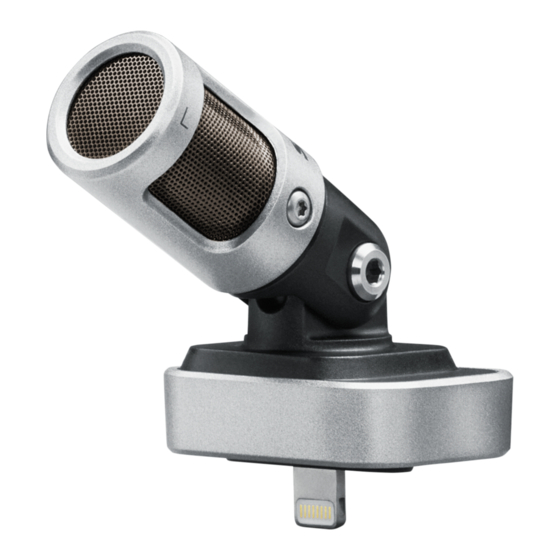

- Page 1 MV88 ™ ShurePlus MOTIV iOS Mid-Side Stereo Con- denser Microphone The Shure digital stereo condenser microphone, MV88, user guide. Version: 5.1 (2021-A)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents My Recordings MV88 ShurePlus MOTIV™ iOS Mid-Side Stereo Con- Converting Multiple Files denser Microphone Playback General Description Editing Your Audio Features Navigating The Timeline Quick Setup Creating A Loop Markers The MV88 Microphone Design Editor... -
Page 3: General Description
The MV88 is compatible with any iOS device equipped with a Lightning connector. Compact and Durable The MV88 features lightweight, all-metal construction and is small enough to carry anywhere. Like all Shure products, the MV88 ensures reliability in the field. -
Page 4: The Mv88 Microphone Design
Shure Incorporated The LED on the MV88 base illuminates when an audio application or the ShurePlus MOTIV recording app is open and recognizes the MV88. Note: The reversible Lightning connector allows the MV88 to be installed in either orientation. Install and open the MOTIV app. -
Page 5: Aiming The Microphone
Experiment with microphone placement and settings to find what works best. Tip: To ensure correct stereo orientation of the microphone at a glance, check to see if the Shure name is clearly visible on the top of the microphone. If the name is not visible, turn the barrel 90°. - Page 6 Shure Incorporated Landscape (Horizontal) Aim the front of the microphone toward the source. The microphone can be connected in either orientation with the Lightning connector, so ensure that the left and right sides of the MV88 are facing the appropriate directions.
-
Page 7: Connecting Headphones With Inline Mics
Shure Incorporated Self-Recording (Voice) Set the device on a flat surface and angle the microphone toward your mouth. Select the MONO CARDIOID preset in the MOTIV app to reduce ambient noise. Connecting Headphones with Inline Mics Headphone Monitor Adapting Cable 7/27... -
Page 8: The Motiv App
Shure Incorporated Use the included headphone monitor adapting cable for the following reasons: • You require a slimmer connection to the headphone input on your recording device. The cable accommodates head phones and earphones with larger connectors. • You want to disable the inline microphone on your headphones. The cable ensures that the recorded sound comes solely from the MV88 and not the headphone inline microphone. -
Page 9: Preset Modes
Shure Incorporated ③ Preset Modes Select a mode to set stereo width, equalization, and compression for specific applications. Refer to the "Preset Modes" top ic for more details. ④ Microphone Gain/Monitoring Adjust to slider to match the volume of the sound source. Tap the headphones icon to monitor the input when making ad justments. Levels are in the target range when they peak in the shaded region of the input meter. ⑤ Polar Pattern Selection Swipe to choose between Stereo, Mono Cardioid, Mono Bidirectional or Raw MidSide pick-up patterns. Then adjust the width of the stereo microphone pickup area. - Page 10 Shure Incorporated Front = On Stereo Sides = On Front = On Mono Cardioid Sides = Off Front = Off Mono Bidirectional Sides = On Front = On Sides = On Raw Mid-Side See "Raw MidSide Output" for more in formation. Raw Mid-Side Output For increased post-processing flexibility, use the Raw MidSide setting. This records signal a 2channel signal with a stereo im...
-
Page 11: Advanced Mic Settings
Shure Incorporated Advanced tip: Using compression with a fast attack setting on the grouped tracks keeps transients (the first part of a sound, such as when a drum stick strikes a cymbal) toward the center of the stereo image and allows them to expand within the stereo field as the sound decays. -
Page 12: Record
Shure Incorporated Equalizer Change the preset modes to hear the DSP changes, and use the equalizer to boost or cut bands of frequencies to improve sound clarity. Note: Equalization within presets will not be displayed. However, the EQ icon in the advanced settings status bar indicates user-selected equalization. - Page 13 Shure Incorporated Record Settings ① Connected Device Status Status will display the model name of the connected MOTIV device. ② Settings Status Displays the icons for the advanced settings currently enabled. ③ Microphone/Headphone Gain Adjust to match the volume of the sound source. Monitor the meter when making adjustments to ensure levels are in the target range (indicated by the shaded region of the input meter).
-
Page 14: Bit Depth And Sample Rate
The MV88 barrel pivots forward on a hinge and rotates 45 degrees to accommodate portrait or landscape recording. L and R are labeled to show stereo orientation of the microphone. The stereo image is accurate if the Shure logo is facing upward. -
Page 15: Capture The Complete Performance
Shure Incorporated You can access the theme appearance setting by going to Menu > Settings > Appearance Capture the Complete Performance To ensure that you capture the entire sound source, start your recording before the performance starts and edit the recording later to trim any silence. -
Page 16: Converting Multiple Files
Tap the three dots to rename, share, convert file format, add artwork, or delete files. Converting Multiple Files Shure MOTIV allows you to convert, share, or delete multiple files at a time. Only WAV files can be converted. Tap Select in the top-right corner of My Recordings. -
Page 17: Editing Your Audio
Shure Incorporated ③ File Information Displays the record date and time, and the microphone that was used. ④ Playback Timeline See where you are in the track as it progresses. The time elapsed and time remaining are displayed be low the timeline. ⑤ Playback Controls Edit, Rewind, Play/Pause, Fast-Forward, and Loop your track. Editing Your Audio Tap Edit to access editing controls for each track. -
Page 18: Creating A Loop
Shure Incorporated Creating A Loop Create a loop to isolate and repeat a selection of audio. • Select the Loop button to select the entire track. The waveform in the highlighted blue area will be looped. • Select and drag the markers on the timeline to adjust your loop. -
Page 19: Editor
Shure Incorporated Editor ① Timeline Display See your entire timeline. Zoom in for precise editing. ② Trim / Split Select Select your edit mode. ③ Marker List All recordings begin with Start and End markers. See "Markers" for more information. -
Page 20: Editing In Split Mode
Shure Incorporated Editing in Split Mode ① Timeline Display See your entire timeline. Zoom in for precise editing. ② Trim / Split Select Select your edit mode. ③ Playback Controls Loop, Rewind, Play/Pause, or Add Bookmarks to your track. ④ Marker List Item Displays name and position in hours, minutes, seconds, and milliseconds. -
Page 21: Customize Track Artwork
Shure Incorporated Note: The first time you save to Camera Roll you will be asked to grant permission for file sharing between apps. If you accidentally dismiss permis sions, you can always change access in the iOS device settings. Granting permission creates a MOTIV folder inside the Camera Roll. -
Page 22: Airdrop With Motiv
Shure Incorporated Now that your file is uploaded to Dropbox, you can store backup copies of your recordings or share them on social media. ® AirDrop with MOTIV MOTIV supports the ability to AirDrop WAV files to selected contacts. Open the MOTIV app and go to My Recordings. -
Page 23: Troubleshooting
LED. Remove the microphone, flip, and re-insert to check microphone status. To ensure that you are receiving audio from the MV88 and not a builtin microphone, un Audio sounds bad or distant. plug and reseat the MV88. The top left corner of the screen will identify the Shure MV88 when the microphone is correctly in place. Headsets with inline microphones can override the MV88 as the audio device. Use the in... -
Page 24: System Requirements And Compatibility
Shure Incorporated System Requirements and Compatibility iOS 10.0 and higher iPhone iPhone 5 and higher iPod Touch 5th gen iPad iPad 4th gen and higher iPad Mini iPad Mini 1st gen and higher Specifications MFi Certified DSP Modes (Presets) Speech/Singing/Acoustic/Loud/Flat Transducer Type Cardioid (10 mm)/Bidirectional Condenser Cartridge (10 mm) - Page 25 Shure Incorporated Compressor Equalizer 5-band Power Requirements Powered through Lightning connector Housing All metal construction Net Weight 40.5 g (1.43oz.) Dimensions 67 x 25 x 35 mm H x W x D 1 Pa=94 dB SPL At Minimum Gain, Flat Mode Frequency Response...
-
Page 26: Accessories
Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B) Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per formance. This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH 26/27... - Page 27 Shure Incorporated Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Fax: +49-7262-92 49 11 4 Email: info@shure.de Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards.
