- Page 1 SM7B Cardioid Dynamic Vocal Microphone Shure SM7B dynamic microphone user guide. Includes information on the frequency response, how to mount, preamp recommendations, and specs. Version: 2.5 (2024-D)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Adjust the Frequency Response Switches SM7B Cardioid Dynamic Vocal Microphone Additional Tips General Description Additional Resources Microphone Placement Specifications Windscreen Accessories Mounting Instructions Furnished Accessories Optional Accessories Preamplifier Use Replacement Parts Install or Remove the Stand Adapter... -
Page 3: Sm7B Cardioid Dynamic Vocal Microphone

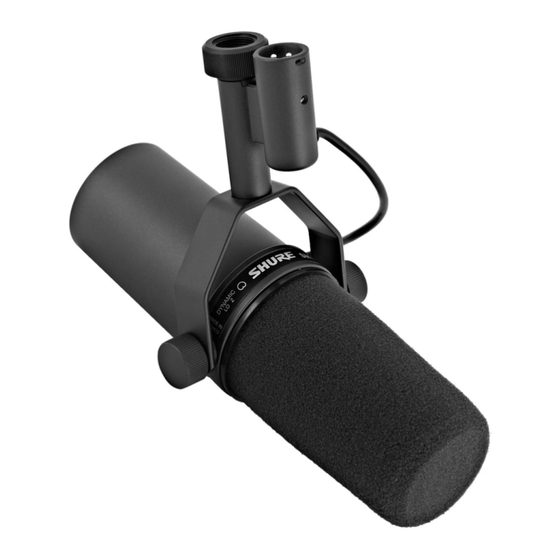

Cardioid Dynamic Vocal Microphone General Description The Model SM7B dynamic microphone has a smooth, flat, wide-range frequency response appropriate for music and speech in all professional audio applications. It features excellent shielding against electromagnetic hum generated by computer moni tors, neon lights, and other electrical devices. In addition to its standard windscreen, it also includes the A7WS windscreen for close-talk applications. -
Page 4: Windscreen
A7WS windscreen. Mounting Instructions The default setup for the SM7B is for a boom mount. To set up the SM7B for a microphone stand: Remove tightening nuts on the sides. Remove the fitted washers, the lock washers, the outer brass washers, and the brass sleeves. - Page 5 Shure Incorporated Mounting Assembly - Exploded View ① Tightening nut ② Fitted washer ③ Lock washer ④ Brass washers ⑤ Brass sleeve ⑥ Mounting bracket ⑦ Plastic washer ⑧ Response switches ⑨ Switch cover ⑩ Windscreen 5/13...
-
Page 6: Preamplifier Use
Shure Incorporated Boom and Microphone Stand Mounting Configuration Preamplifier Use The SM7B has a sensitivity rating at 59 dB and requires more gain than what most entrylevel or midtier preamplifiers can de liver. Use an inline boost amplifier or stronger preamp if your preamp does not have more than 60 dB of gain. Preamplifier Configuration 6/13... -
Page 7: Install Or Remove The Stand Adapter
Shure Incorporated Install or Remove the Stand Adapter To mount the microphone on a 3/8 in. stand, insert the included brass stand adapter and tighten it with a coin or screwdriver. Important: Make sure that the slots on the adapter face outward. - Page 8 Shure Incorporated Flat response: This default setting works for most applications. Bass rolloff: If you want to reduce the bass, push the left switch down. This can help lower background hum from A/C, HVAC, or traffic. 8/13...
-
Page 9: Additional Tips
Shure Educational Articles for more information on recording techniques for different instruments and applications. Additional Resources • Shure Knowledge Base FAQs • Training from the Shure Audio Institute • Microphone Techniques for Recording • Houses of Worship Systems Guide •... - Page 10 Shure Incorporated Output Impedance 150 Ω Sensitivity (@ 1 kHz, open circuit voltage) 59 dBV/Pa[1] (1.12 mV) Hum Pickup (typical, at 60 Hz, equivalent SPL/mOe) 11 dB Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Net Weight 0.764 kg (1.69 lbs)
- Page 11 Shure Incorporated Typical Polar Pattern Internal Connections Overall Dimensions 11/13...
-
Page 12: Accessories
C25F Replacement Parts Cartridge for SM7, SM7A and SM7B RPM106 Black Windscreen for SM7, SM7A, SM7B, also see A7WS RK345 Nut and Washer for SM7, SM7A and SM7B Yoke Mount RPM604 Certifications CE Notice Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/enEU/support/declara... - Page 13 REACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK) chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a concentration above 0.1% weight over weight (w/w) is available upon request.
