- Page 1 POKAYOKE (MISTAKE PREVENTION) TOOLS TW-850T Instruction Manual V1.00 Please use this Instruction manual correctly on reading well. Please keep it carefully to be able to read immediately, when required.
-
Page 3: Table Of Contents
2. Main part and accessories ..........................2 3. Safety Precautions (Be Sure to Read This) ......................3 4. Name and Function of Each Part ........................7 5. Attachment of TW-850T ............................8 6. Setting ................................. 11 7. How to Use the transmitter ..........................12 8. Specifications ..............................14 9. -
Page 4: Overview
TW-850T 1. Overview “TW-850T”（below referred to as “the transmitter”）is a Pokayoke compact transmitter that can be attached to Pokayoke compatible tools, except torque wrenches and pliers wrenches. The transmitter can be attached to various Pokayoke-compatible tools to transmit work completion signals to receivers wirelessly. -
Page 5: Main Part And Accessories
TW-850T 2. Main part and accessories ・Transmitter TW-850T ・Coin battery CR 2032 *TW-850T is delivered with a coin battery installed. ・Cable with a connector Connect the cable to the cable connecting connector of the main body. Connector (Cable lengthApprox.200mm) (ZHR-2 made by JST) Cable color Terminal No. -
Page 6: Safety Precautions (Be Sure To Read This)
TW-850T 3. Safety Precautions (Be Sure to Read This) This section describes the matters to be observed in order to prevent harm to the users and other persons and damages to the property. ■The following marks and displays classify and describe the extent of harm and damage caused by failing to observe the display content and using this product wrongly. - Page 7 〇Also contact us in case of any trouble such as harmful radio interference to specified low-power radio stations for mobile objects identification or amateur radio stations. TW-850T is equipped with the built-in wireless module HRF-2402. Available countries：Japan, Canada, USA, Mexico, China, Thailand, Vietnam, Philippines and India.
- Page 8 TW-850T ■FCC/IC Warning Information about FCC Standard. FCC CAUTION Change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
- Page 9 TW-850T This radio transmitter (10608A-HRF2402) identify the device by certification number or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
-
Page 10: Name And Function Of Each Part

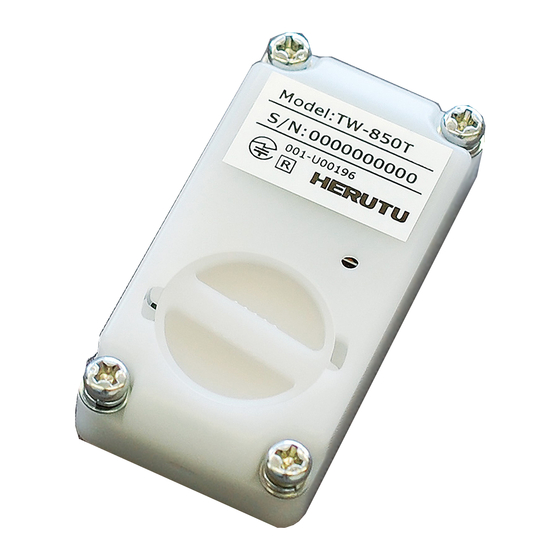

TW-850T 4. Name and Function of Each Part ⑨ Nameplate label ④Monitor LED ⑤Test switch(pairing switch) ⑥Harness connecting connector ③Protective cover ②Battery cap ⑦Buzzer hole ①Main body case ⑧Main body mounting hole （4 places） ①Main body case Main body case. POM, a highly durable material, is used. -
Page 11: Attachment Of Tw-850T
TW-850T 5. Attachment of TW-850T ＜Cable connecting connector＞ Connector for connecting the supplied cable with connector. Connector model：S2B-ZR-SM4A made by JST Terminal Terminal Input condition Name Connect GND to the ground. Terminal for input of the work completion signal (Non-voltage contact input). - Page 12 TW-850T ●Connection examples The area surrounded by dotted lines represents the supplied cable with connector. Connecting a switch Black White Connecting a photocoupler/photo MOS relay Black White Connecting a transistor Black White ＜Input Judgment time for transmitter＞ The transmitter is designed not to transmit signals when the signal input time from the limit switch is 40ms or less.
- Page 13 TW-850T ＜Attachment of the transmitter＞ Attach the transmitter using the main body mounting holes on the main body case and fix it with four ※M3 screws are not included. M3 screws. When using metal as fixing material, it is recommended to use metal with plate thickness of 2 mm or more （1mm or more for burring）.
-
Page 14: Setting
TW-850T 6. Setting The transmitter and a Pokayoke receiver TW-800R-*** need to be paired before use. By pairing them, they recognize an identification signal from each other and communicate with each other. This manual describes how to pair the transmitter with the receiver TW-800R. -
Page 15: How To Use The Transmitter
TW-850T 7. How to Use the transmitter ①Turn ON the power switch of the receiver. Make sure the receiving LED is OFF. When the receiving LED lights up, the transmitter is not paired. Pair the receiver and transmitter. Receiving LED (Green) - Page 16 TW-850T ●Test switch The transmitter is equipped with a test switch for communication and battery voltage checks. When the transmitter transmit the signal by test switch not limit switch, receiver doesn’t output relay output. But LED of receiver only turns on. When the test switch is pressed, the transmitter checks the battery remaining capacity.
-
Page 17: Specifications
TW-850T 8. Specifications Item Specifications <Japan> Radio equipment specified in Article 2 paragraph 1 item(19) of the Radio Law *Specialized radio equipment: Low power data communication system in the 2.4 GHz band Compliance Standards Article 49-20 paragraph 1 of the Ordinance Regulating Radio Equipment <USA：... -
Page 18: Dimensions Drawing
TW-850T 9. Dimensions Drawing... -
Page 19: Before Determining Fault
TW-850T 10. Before Determining Fault Phenomenon Cause and remedy Battery capacity is low. The transmitter does not transmit LED (red or green) does not light up →Please replace the battery (CR2032）. The red LED blinks 3 times after transmitting. Pairing is not done. (not registered) →Perform pairing with the receiver to communicate with the... -
Page 20: When Something Is Wrong
TW-850T 11. When something is wrong I f t h e problem persists even after a remedy action is taken or if it is unclear which remedy action should be taken, then contact the dealer where the product was purchased or our Sales Department with the following information: Product name / Serial No. - Page 21 TW-850T ■ Initial Defect The Warranty for initial defect is valid for 30 days from the date of shipment of the Product. In case an initial defect is found, the defective product should be shipped to your dealer or our Sales Department within the period mentioned above.
- Page 24 HERUTU ELECTRONICS CORPORATION 62-1 Toyooka-cho, Kita-ku, Hamamatsu, Shizuoka, 433-8103 Japan (Sales dept) TEL.+81-053-438-3555 FAX. +81-53-438-3411 Website URL https://www.herutu.co.jp/en/ E-mail info@herutu.co.jp...
