Summary of Contents for Shire Play Hut

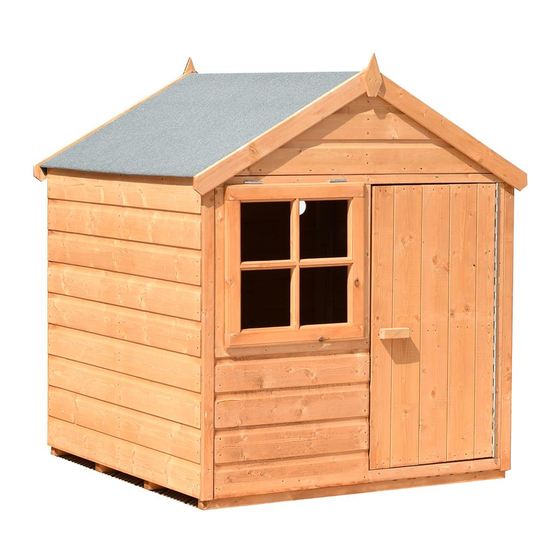

- Page 1 © Play Hut Complies with EN71 These instructions are for your safety. Please read through them thoroughly before use . PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Let’s get started... Important information... Safety Base and positioning Warranty Care maintenance & Recycling In more detail... Hardware Chart & Fascia bag 06-07 Stacked Parts List 08-09 Detailed Technical Drawings 10-11 Before you start Assembly instructions 13-24 For a copy of the instructions or a copy in another language please send an email or write to the address below. -
Page 3: Safety
Safety Check that you have noted all the following instructions We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process We advise the use of protective headwear and safety goggles throughout the assembly process Where a ladder is in use another person must hold the ladder. -
Page 4: Base And Positioning

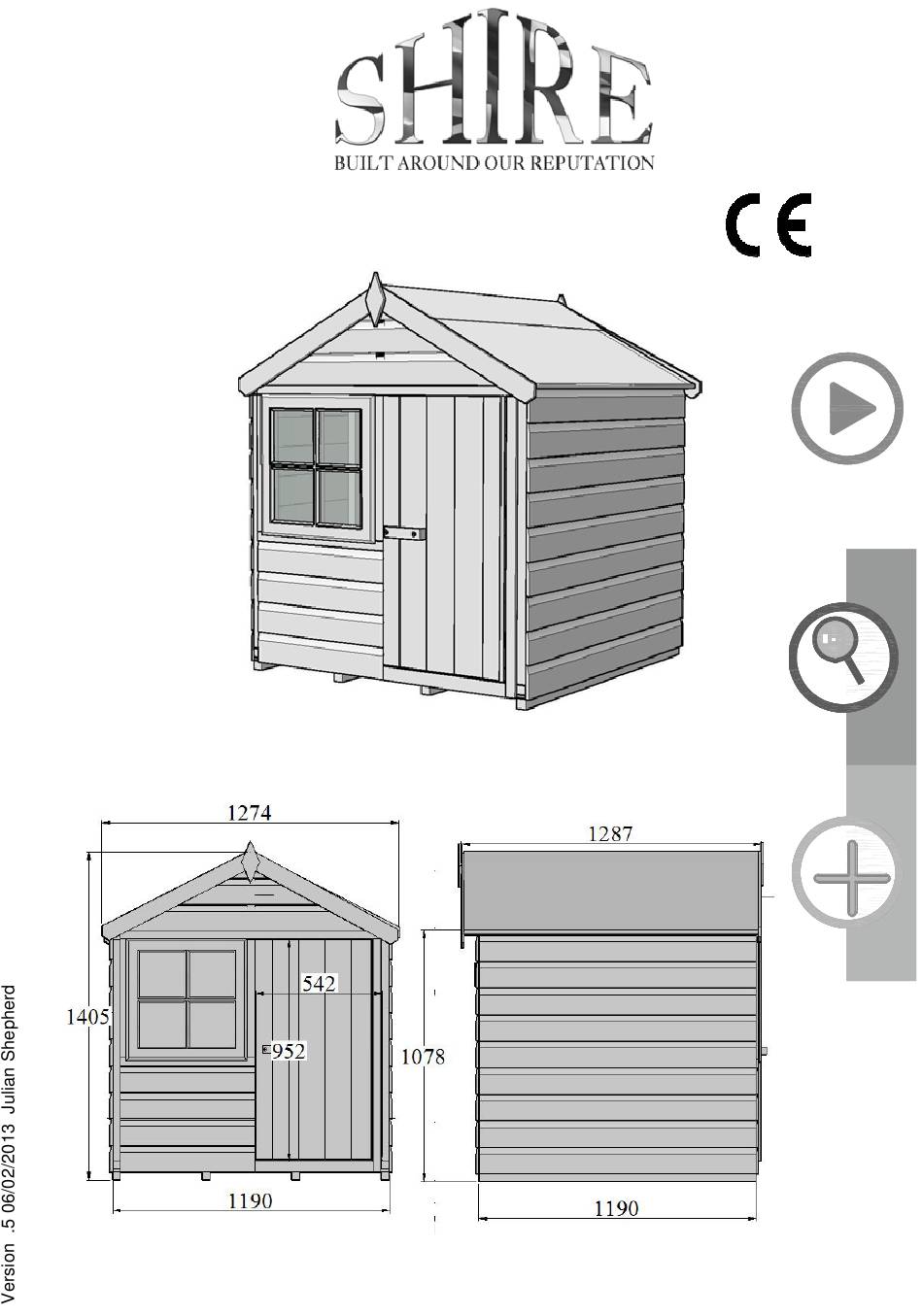

Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building. Actual floor area of the building: 1190mm x 1190mm Total height clearance: 1405mm Roof size 1274mm wide x 1311mm long The chosen position in your garden for your building should be excavated to a depth... -
Page 5: Care Maintenance & Recycling
Care, Maintenance and Recycling The 5 golden rules of care Ensure your base is level and firm Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. Ensure every piece of timber and surface, especially that is hidden upon assembly is treated with a top quality wood preservative at least twice (see note on pressure treated buildings in warranty section). -
Page 6: Hardware Chart & Fascia Bag
Fascia & nail bag contents Hardware Chart Scale 1:1 08mmFelt Nail (A0266) x107 16mm Panel Pin (A0024) x32 40mmRound head nail (A0025) x94 Note 12mm Flat head These 12mm screws Posi-drive screw With roller catch (A0027) x04 25mm Posi-drive screw (A0032) x34 60mmPosi-drive screw (A0035) x26... - Page 7 Fascia & nail bag contents Continuous Hinge 944mm 34s framework Window Hinge (A0465) x01 (A0013) x02 Door Handle/ catch A0091) x02 34mm` Casement set Safety vent Fascia ( A0038 ) x01 ( A0476 ) x02 (A0478) Diamond Beading 205mm Roller catch (A0479) x02 (A0090) x01 (A0481) x16...
-
Page 8: Stacked Parts List
Stacked parts list Description (part No ) qty Window insert Floor panel Door (A0466) x01 ( A0467 ) x01 (A0464) x1 500mm 493mm 1190mm 34s framework Plain panel (Back) Plain panel (sides) Floor joists (A0469) x01 (A0470) x02 (A0468) x04 1120mm 1190mm 34mm`... - Page 9 Stacked parts list Description (part No ) qty Roof panel Plastic Glazing 203mm-203 mm Cover strips 1032mm ( A0475 ) x02 (A0480-)x04 (A0477) x04 44mm 203mm 1214mm...
-
Page 12: Before You Start
Before you start Things to check before you start Ensure your base is ready– See page 3 Check all parts as listed in the parts lists Read the instructions fully before starting work Follow all the health and safety guidelines When you see the drill icon Only ever drill through the first piece of framework which will be a... -
Page 13: Assembly Instructions
Assembly These instructions are for your safety. Please read through them thoroughly before use . Treat the parts before assembly –see page 5 GB-IE Attach the hinge “A0465” on the outside long edge of the door “A0464”using 7 screws into the door and 7 into the door panel Leave a screw hole free near the top and bottom for fixing the side panel. - Page 14 GB-IE Position the handle block “A0091”over the “A0464” door framework and attach as shown.. Door (A0464) x01 34mm` Door Block (A0091)x01 60mmScrew (A0035)x02 GB-IE Rebate the top of the “A0466” window insert 3mm deep. Use the hinge to mark the length. To comply with EN71 safety regulations Window insert (A0466)x01...
- Page 15 GB-IE Try the “A0466” window in position in the panel “A0471”to check that you have it the correct way around. The hinges fit the top of the window. Window insert (A0466) x01 Hinge (A0013)x02 25mmScrew (A0032)x04 GB-IE Position the “A0466” window insert in the aperture and screw the inner screw holes that are just visible first.
- Page 16 GB-IE Casement stay and pins “A0038” must fit together loosely. Fix the casement stay to the window insert first. Then mark and fix the pins . Casement set (A0038) x01 25mmScrew (A0032)x06 GB-IE Equally space the floor joists "A0468" put the floor panel "A0467" on top and nail them together with 12 nails per joist.
- Page 17 GB-IE Drill panels "A0469 & A0471" as shown. Use a 3mm drill through 2 hinge holes. Do not drill plain panel “A0470” Place the panels with the cladding overhanging the floor and panel “A0470” covers the full width of the floor. Attach using the holes just drilled. Back panel (A0469) x01 A0469 Drill 6mm...
- Page 18 GB-IE Continue adding and fixing the walls as before Plain panel sides) (A0470)x01 A0470 Door panel (A0471) x01 60mmScrew (A0035)x06 A0471...
- Page 19 GB-IE Place a gable panel "A0473" panel level with the framework and secure, repeat with other gable. Gable panel (A0473)x02 60mmScrew (A0035)x06 GB-IE Place a Roof panel "A0475" on a felt strip so there is a 50mm overlap on 3 sides and fix on the long side only with 13 nails.
- Page 20 GB-IE Position and fix both roof panels “A0474”taking care not to damage the felt. Assembly from Steps –11 40mm Nails (A00025)x22 GB-IE On one side flip the felt over the top of the roof, holding it tight and nail in position. 08mm Felt nails (A0266) x13...
- Page 21 GB-IE Flip the other felt sheet over the top before and nail as below 08mm Felt nails 100mm (A0266)x26 GB-IE Fold the felt overlaps neatly and nail into the edge of the roof panel Repeat at the front. 08mm Felt nails (A0266) x42...
- Page 22 GB-IE Fix the walls to the floor with 2x60mm screws per panel 60mmScrew (A0035) x08 GB-IE Fit cover strips “A0477” at each corner with 2 nails each. 44mm Cover strip (A0477) x04 40mm Nail (A0025) x08 GB-IE Push the vents “A0476” into the holes in the back panel Safety vent (A0476) x82...
- Page 23 GB-IE Make sure the nails go into the gable framework avoiding the felt nails. Fascia (A0478)x04 Diamond (A0479)x02 40mm Nail (A0025) x16 GB-IE Remove the protective film from both sides of the plastic glazing before fitting. 8.5mm Beading (A0481)X16 Plastic Glazing (A0480) x04 16mm Panel pin (A0024) x32...
- Page 24 GB-IE Fix the Door block "A0091" flush with the edge of the door frame, the receiving clip to the door and then clip the roller catch to the receiver and screw to the door block. 34mm` Door block (A0091) x01 25mm 25mm Roller catch...
