I-PLUG pdf Multi-use - User Manual
Company: Switrace SA
Brand Name: I-PLUG pdf Multi-use
Product Description: Multi-use USB Temperature Data Logger
Features and Advantages:
• Dimensions: 7.5 cm x 4 cm x 0.5 cm
• Temperature measurement range: -40 to +65 Degrees Celsius
• Temperature resolution: 0.01 °C
• Data storage capacity: 8000 Measurements
• Log cycle: 5 days to 90 days
• No software needed
• Track and trace of settings, graph and readings in web portal.
Standard available durations:
1
2
3
4
5
6
7

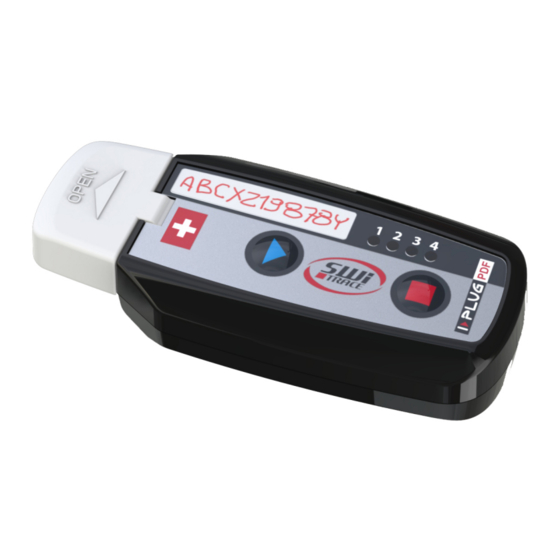

Appearance of I-PLUG pdf Multi-use :
Fev, 2017
Total Time (Days) Log Cycle (Minutes)
5
10
30
40
60
75
90
I-Plug multi-use pdf
1
2
6
8
11
14
17
I-PLUG Multiuse pdf
Page 1 of 10
Advertisement
Related Manuals for Switrace I-PLUG pdf Multi-use
Summary of Contents for Switrace I-PLUG pdf Multi-use
- Page 1 I-PLUG Multiuse pdf I-PLUG pdf Multi-use - User Manual Company: Switrace SA Brand Name: I-PLUG pdf Multi-use Product Description: Multi-use USB Temperature Data Logger Features and Advantages: • Dimensions: 7.5 cm x 4 cm x 0.5 cm • Temperature measurement range: -40 to +65 Degrees Celsius • Temperature resolution: 0.01 °C •...
-
Page 2: How Does It Work
How does it work? How to START it? When you are ready to use I-PLUG pdf Multi-use Logger, press and hold the START button. The 4 LEDs will light sequentially, release only when the GREEN LED only is lighted. If the device failed to start the 4 LEDs blink together, in this case repeat the operation. - Page 3 I-PLUG Multiuse pdf You just need to plug it in a computer before being activated and use the iPlug MANAGER software. Get the iPlug MANAGER software in the “Downloads” section of our website www.switrace.com. Fev, 2017 I-Plug multi-use pdf Page 3 of 10...
- Page 4 I-PLUG Multiuse pdf Understanding the LEDs indicators The LEDS will give you valuable information of the conditions of your shipment as indicated in below table. If you press START or STOP button briefly, while I-PLUG is running, LEDs will blink. Here are the meanings: Appearance of I-PLUG pdf Meaning 4 blinking LEDs...
-
Page 5: Connecting To The Computer
I-PLUG Multiuse pdf is completely full. While the PDF report is downloading, LEDs will be lit in a circular way. Using I-PLUG Manager for added benefits Download the free software iPlug Manager in the Download section of www.switrace.com. You do not need to register to download the software. Modify settings of I-PLUG pdf Multi-use: iPlug MANAGER software allows you to modify all the pre-programmed setting and choose your own. - Page 6 I-PLUG Multiuse pdf Restarting I-PLUG Multiuse pdf If the device is in a STOP state, iPlug Manager allows you to reset I-PLUG Multiuse pdf for as many time as you want. By default, it will read the last configuration used. You can modify the parameters again (if needed), then just check the Reset device flag, then press the Save settings button.
- Page 7 I-PLUG Multiuse pdf Temperature information will be displayed in RED, while temperature readings will appear on the left side of the screen. Pic.2 Fev, 2017 I-Plug multi-use pdf Page 7 of 10...
- Page 8 Online view requires internet connection If you want to access your saved data remotely, go to the www.switrace.com then insert the serial number of the logger in the SEARCH field, and you will have access to the web- application again (Pic.4)
- Page 9 I-PLUG Multiuse pdf Pic.4 Modify settings of I-PLUG multi-use : iPlug MANAGER allows you to modify all the pre-programmed setting and choose your own. Just modify all the parameters you need, then press the Save settings button (Pic.1). You can change hereafter parameters (Pic.1) trip duration sample frequency size Start delay Temperature alarms...
- Page 10 I-PLUG Multiuse pdf For further questions Please contact: SWITRACE SA Via F. Catenazzi 5 6850 Mendrisio Switzerland Phone : +41 91 646 18 74 E-mail : info@switrace.com Fev, 2017 I-Plug multi-use pdf Page 10 of 10...
