Maxxus AirRow Instructions For Assembling And Installing page 2

MAXXUS rowing machine AirRow
Instructions for assembling the two frames

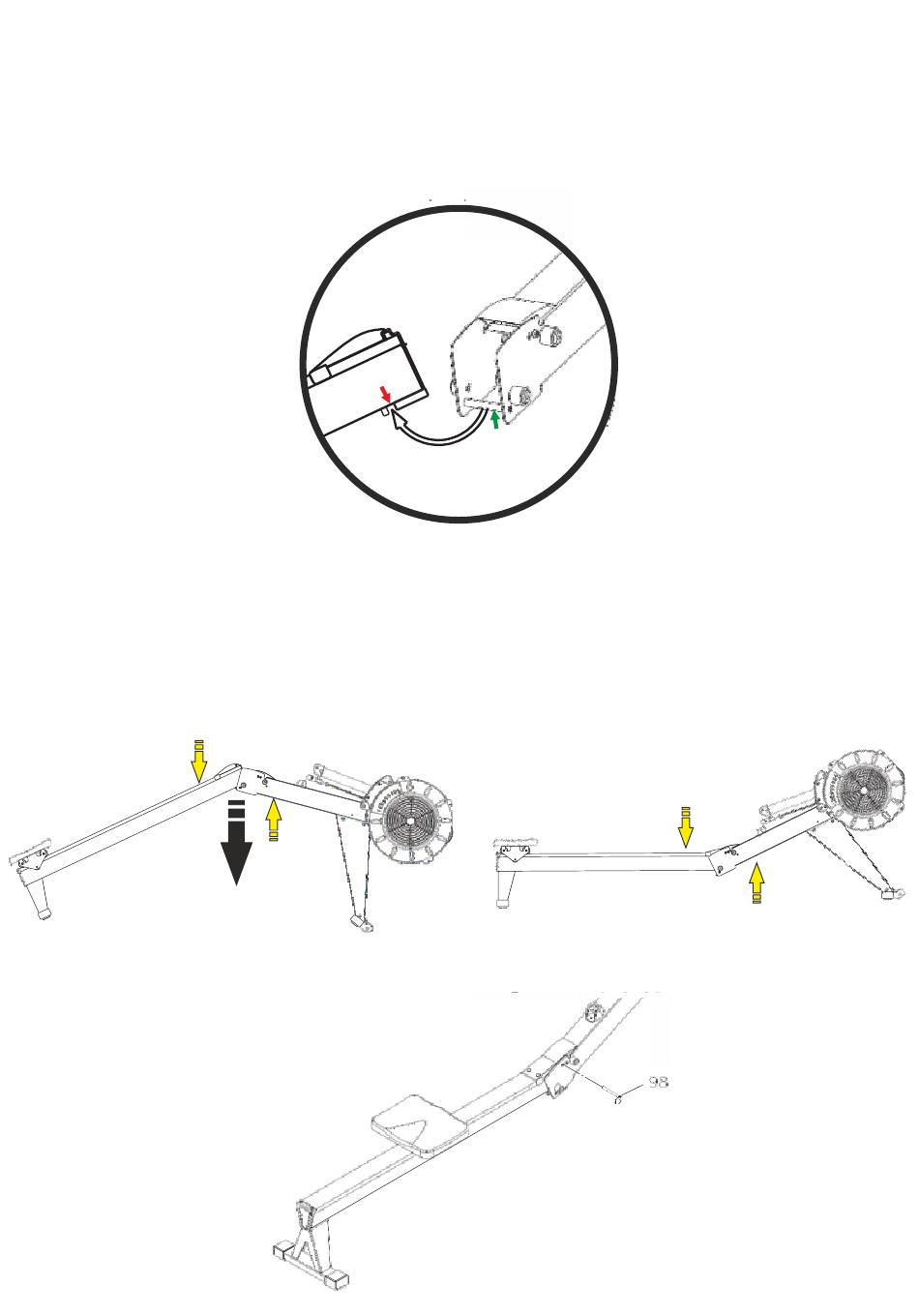

Step 1:
Raise the front end of the sliding frame and the rear end of the base frame approximately 45 degrees.
Then insert the space between the two rectangular holders on the underside of the sliding frame (marked
with a red arrow in the picture), into the axis of the holder of the base frame (marked with a green arrow in
the picture).
Step 2:
Now slowly lower the two frames (see black arrow in the illustration) until both frames are horizontal.
ATTENTION: To make the two frames slide into each other, exert light pressure on the frames (see yellow
arrows in the illustration).
To do this, press the sliding frame slightly downwards and the base frame slightly upwards.
Step 3:
Secure the two frames by inserting the safety splint (98).
