Performance Tool W4003 Owner's Manual page 2

TECHNICAL DATA
Horizontal pulling capacity: 2200 lbs. (1000kgs)
Vertical lifting capacity: 1100 lbs. (500kgs)
Single line cable: 5mm X 6 ft.
Specifications are subject fo change without notice
SAFETY IMFORMATION
CAUTION: Make sure your hand power puller is maintained in safe and
proper working condition by observing the following rules.
1. Inspect cable regularly to examine the frays, broken strands
or distortion.
2. Do not pull cable over or around a corner.
3. Do not wrap cable around any object and hook it back on itself.
4. Do not overload; know how much load is allowed when you
are pulling.
5. Do not use a "cheater" pipe or other device to lengthen the handle
for additional leverage. This will destroy the puller itself.
6. Do not operate puller with less than 3 wraps of cable on the spindle.
7. Please do use an adequate sling, eyebolt or other accessory attached
to the load to be pulled. Make sure that there is a positive engagement
of the puller hook to the load.
8. DO NOT lift people or lift over people.

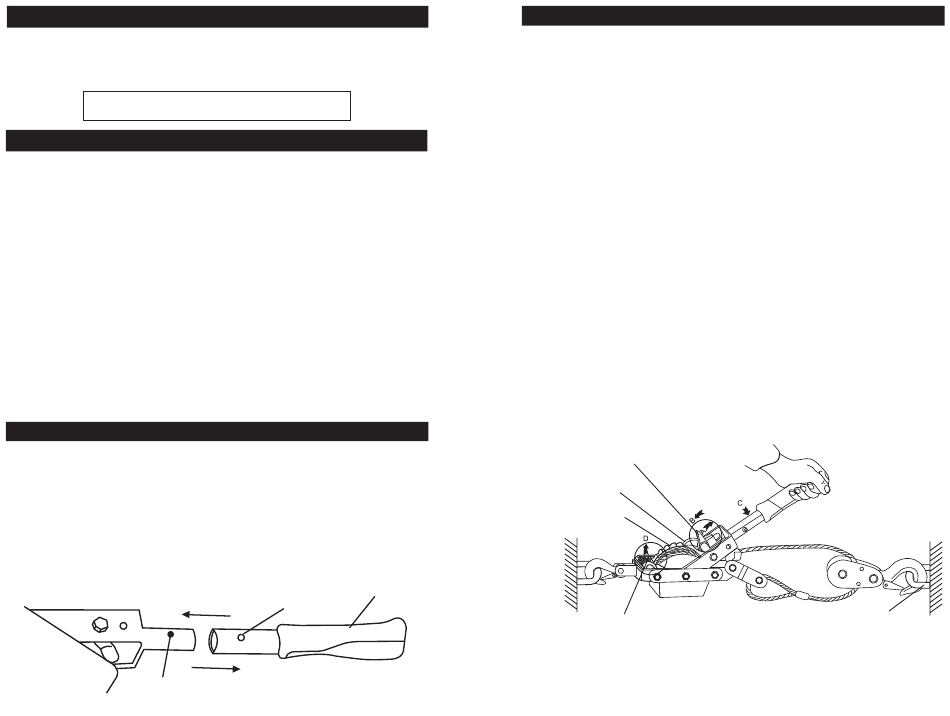

ASSEMBLY
Easily Assembled Handle
1. Align the handle and receiver so the retention pin and hole are lined up.
2. Depress the retention pin then slide the handle into the receiver. Continue until
the retention pin engages in the receiver hole. The handle is now locked into
place and the puller is ready to use.
To remove the handle depress the exposed pin and pull the handle out of the
receiver. Store in blow molded storage case.
Retention Pin
Handle
Receiver Hole
OPERATION
To extend cable:
Secure hook and pulley to a rigid anchor.
Depress drive pawl spring in direction of arrow at detail "A".
Raise handle and hold firmly in this position "C", then depress stop
pawl in direction of arrow at detail "D" and at the same time pull until
desired slack is obtained.
To raise load or apply tension:
Engage drive pawl and ratchet wheel by pushing pawl spring in
direction of arrow at detail "B". Each stroke of handle will wind cable to
pull load.
To release tension:
Depress pawl spring in direction of arrow at detail "A". Steadily push
handle until drive pawl pushes and disengages stop pawl to clear
ratchet teeth. This releases load one notch. Repeat this handle motion
as required to release tension a notch at a time.
CAUTION: When releasing load avoid abrupt handle movements. Apply
pressure to handle with an even and steady force.
DRIVE PAWL SPRING
DRIVE PAWL
RATCHET WHEEL
STOP PAWL RIGID ANCHOR POINT
