Manual
Tiltmotor Venetian 19 - 25 mm
ABC-02
WARNING:
Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
WARNING:
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
indoor use only

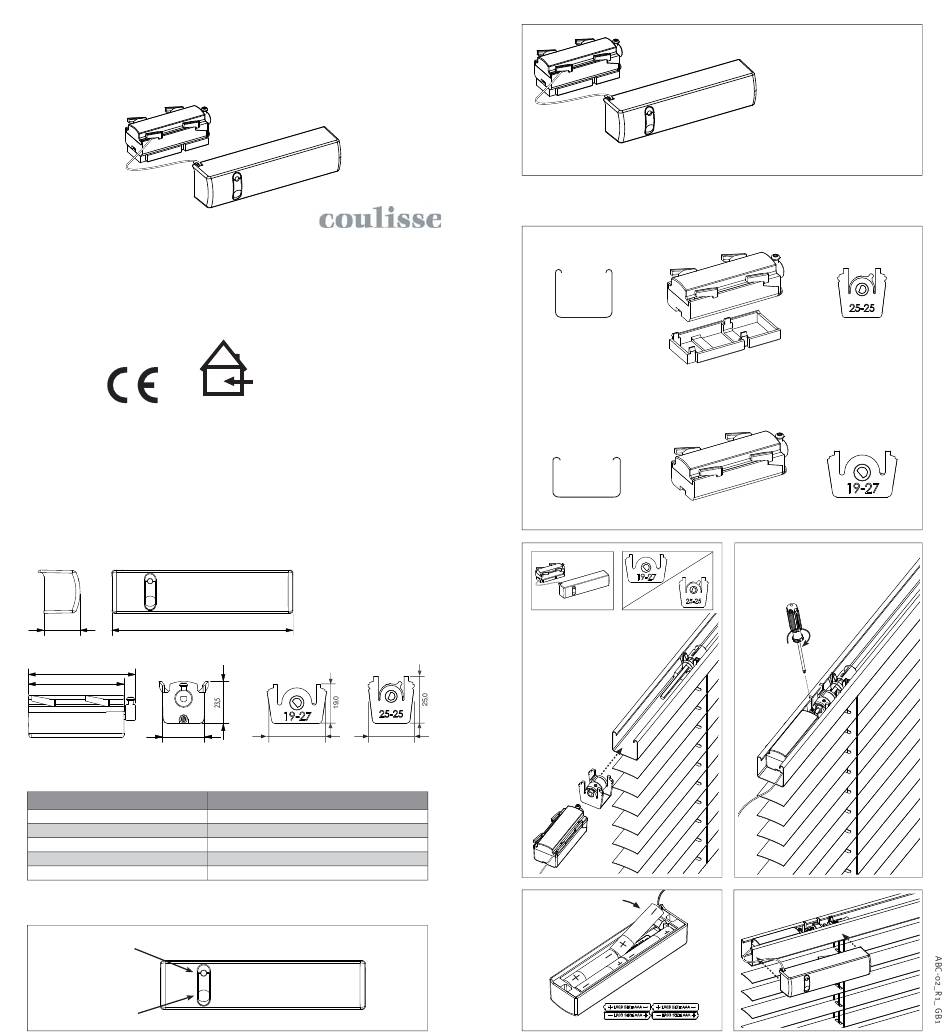

1. General information
The ABC-02 is a complete kit to motorize the tiltfunction in 25mm venetian blinds.
The kit fi ts in all common headrails (25x25mm and 19x27mm). The motorunit is placed
in the headrail, the batterypack is placed with magnets outside the headrail for easy
battery access. The motorunit is operated with a Coulisse remote control only.
1.1 General dimensions
21,5
107,5
60
53,5
23,5
ABC-02
1.2 Specifi cations
ABC-02
Battery type
Battery life
Max. system dimensions
Operating temperature
Max. channels to pair
1.2A
1.3 Interface and buttons
Indication LED
Program button
25,8
23,8
H34
H35
4x AAA 1.5v alkaline (not included)
1 year
25mm venetian, 2,5m
2
(wood) - 4,5m
2
(alu)
5 - 60°
32 channels
1.3A
2. Assembly
(batteries not included, use 4x 1.5v alkaline AAA)
ABC-02
2.1 Install Motor
=
25 x 25
=
19 x 27
H34
H35
ABC-02
1.5v AAA (4x)
+
H35
ABC-02
+
ABC-02
H34
2.2B
2.2D
2A
2.1A
2.2C
2.2E
Advertisement
Table of Contents
Related Manuals for Coulisse ABC-02
Summary of Contents for Coulisse ABC-02
- Page 1 1. General information The ABC-02 is a complete kit to motorize the tiltfunction in 25mm venetian blinds. The kit fi ts in all common headrails (25x25mm and 19x27mm). The motorunit is placed in the headrail, the batterypack is placed with magnets outside the headrail for easy battery access.
- Page 2 1 sec 10 sec Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify any person or entity of such revisions or changes. The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or contact your Coulisse contact person .
