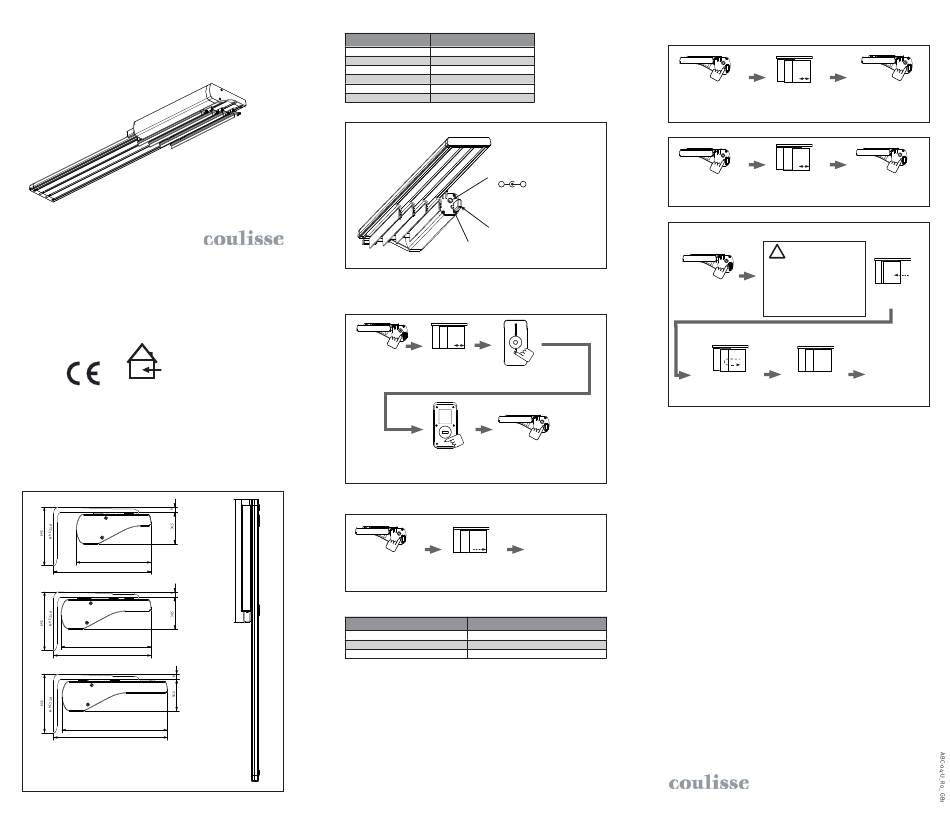

Coulisse ABC-04 User Manual

User Manual
Absolute Control
Panel motor ABC-04
WARNING: Important safety instructions. Follow all instructions, since incorrect
installation can lead to severe injury.
WARNING: Do not make repairs yourself. Do not attempt to open the device or
disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
indoor use only

1. General information

The ABC-04 is a complete kit to motorize Panel Absolute systems. The kit fi ts on 3, 4
and 5 track rails. The motorunit is always situated on the left side of the system.
The motorunit is operated with a Coulisse remote control only.
The software in the motorunit is selfl earning and detects it's endpoint automatically.
1.1 General dimensions
3-way
82,4
107,5
+0/-1.5
4-way
99,3
107,5
+0/-1.5
5-way
116,2
125,5
+4.2/-4.2

1.2 Performances

ABC-04
Powersupply
Rated power
Chain speed
Max. pullingforce
Operating temperature
Max. channels to pair

1.3 Connectors and buttons

2. Programming and operating

2.1 Programming

- Pair to a channel/remote
1 sec.
Set in Program mode:
Shortly press
program button

2.2 Operating

- Control by remote
(see manual Remote control)
- Manual Control
> 2 sec.
227
Press program button
for more than 2 sec.

2.3 Additional blind settings

Additional blind settings:
Switch rotation direction
Favorite position
BatteryMode
We refer to the manual of the Coulisse Remote control to set the additional blind settings.
Disclaimer:
© Copyright Coulisse
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means,
electronic, mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due to
mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify any
person or entity of such revisions or changes.
The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or contact your
Coulisse contact person .
We invite you to send remarks and comments about this manual to Coulisse at manuals@coulisse.nl.
12-24V DC - 0.6A
7 W
3,75 mtr/min
3 kg
5 - 60°C
32 channels
12-24V DC - 0.6A input
+
-
Antenna
Program button
(also possible by using SingleSelect, see manual Remote control*)
Program mode: Choose channel by pressing
Blind is the ChannelSelect button
stepping...
1 sec.
Pair/unpair by pressing
Exit Program mode:
the program button Shortly press
program button to exit
Exit or press program
button another time
for more than >2 sec.
Blind moves as long
and blind moves
as button is pressed
(max. 15 sec.) in opposite direction
Available
Yes
Yes
Yes
2.4 Reset & initialisation
New motors can be initialized directly without resetting
- Reset to factory defaults
1 sec.
Set in Program mode: Program mode:
Shortly press Blind is
program button stepping...
- Reset to factory defaults & Erase all paired channels/remotes
1 sec.
Set in Program mode: Program mode:
Shortly press Blind is
program button stepping...
- Initialisation (only possible after reset)
1. Connect the motorunit with the 12-24V DC - 0.6A powersupply
2. Detect endpositions:
! !
1 sec.
It is important that the panels
move fi rst towards the motor.
Shortly press
If not, press program button
program button
to stop and press it again to
change the direction.
Blind moves slowly Blind is initialized
and is detecting when panels stops
the endpoints...
3. Tips & Troubleshooting
Please check www.coulisse.nl for the latest tips and troubleshooting guide.
4. Safety & Cleaning

4.1 Safety

Do not make repairs yourself. Do not attempt to open the device
WARNING:
or disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
- Do not let children play with the blind and/or remote control.
- Only use powersupplies or batteries that comply with the specifi cations on the motor.
- In case of malfunction, unplug the device or remove the batteries and contact your dealer.
- Take care that the blind can move freely and is not blocked by objects.
- Take care that the powersupply cable is out of reach for children.
- Do not paint the device.
- Keep the device dry .
4.2 Cleaning
Follow these general rules when cleaning the outside of the device and its components:
- Make sure the device is unplugged.
- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
- Don't use aerosol sprays, solvents, alcohol, or abrasives.
5. Service & Support
Do not make repairs yourself. Do not attempt to open the device or
WARNING:
disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
Online Resources
For the latest information and updated manuals go to www.coulisse.nl.
Obtaining Warranty Service
First follow the advice in this booklet and then go to your local dealer.
If the product appears to be damaged or does not function properly, go to your local dealer
for instructions on how to obtain warranty service.
Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands
10 sec.
Hold program button for
10 sec. untill blind stops
stepping
15 sec.
Hold program button for
15 sec. untill blind stops
stepping and steps once
Panels move slowly
Blind is now
ready for normal
use.
