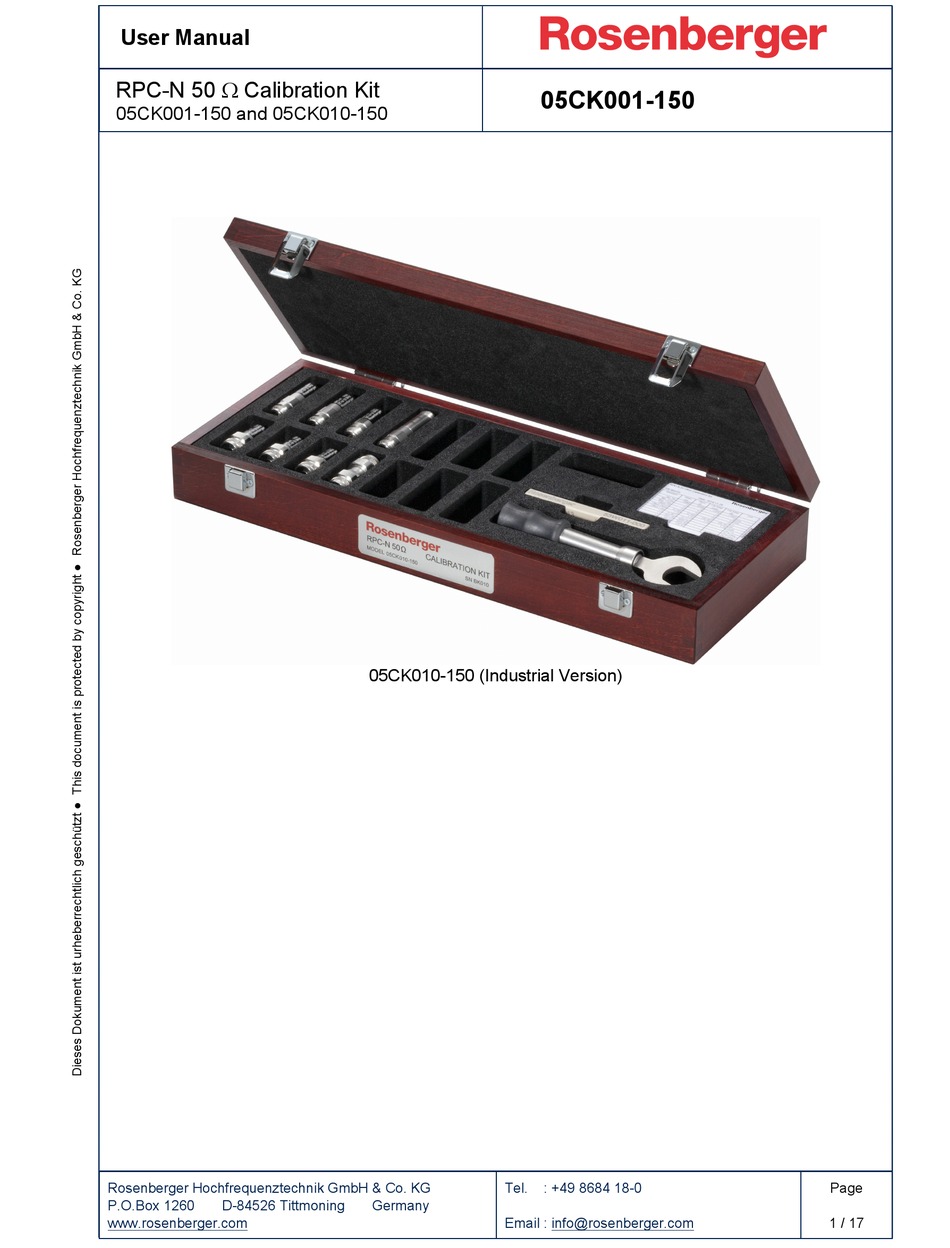

- Page 1 User Manual RPC-N 50 Calibration Kit 05CK001-150 05CK001-150 and 05CK010-150 05CK010-150 (Industrial Version) Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com Email : info@rosenberger.com 1 / 17...
-
Page 2: Table Of Contents
Extent of Rosenberger Re-Calibration Services 6. Use, Maintenance and Care Connector Care Interface Dimensions and Gauging Mechanical Specifications Handling and Storage 7. Connections Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com... -
Page 3: General Information
Customer specific RPC-N 50 Calibration Kits, excluding Air Line Kits The Industrial Version does not contain gauges. So all gauge related chapters are only applicable if additional gauges are available, e.g. Rosenberger 05GK0KS-010 or comparable ones. For customer specific Calibration Kits all VNA calibration methods may not be available. -
Page 4: Kit Contents
User Manual RPC-N 50 Calibration Kit 05CK001-150 05CK001-150 and 05CK010-150 1.3 Kit Contents Table 1-1 Parts of the 05CK001-150 Calibration Kit Device Part number Remarks Quantity Open circuit plug 05S12L-000S3 Open circuit jack 05K12L-000S3 Short circuit plug 05S12S-000S3 Short circuit jack... -
Page 5: Kit Documentation
Standard scope of delivery is the Factory Calibration. Optional scope of delivery is the Accredited Calibration. In this case the electrical calibration standards of this calibration kit are calibrated instead in the Rosenberger calibration laboratory, which is accredited by the German accreditation body DAkkS (Deutsche Akkreditierungsstelle) according to DIN EN ISO 17025. -
Page 6: Specifications
These standard definitions are used in the calibration of the VNA to determine the systematic errors of the measurement system. Please always use the most recent source of information (Standard Definitions Cards or VNA specific files). Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... -
Page 7: Installation Of Standard Definitions
The file extension defines the VNA types the file can be used on. For further Information see the Application Note AN001. KitType (SN)_StdDef_CalDate.Ext KitType 05CK001-150, 05CK020-150 or customized type (SN) Serial number (5 character) enclosed by brackets StdDef ‘mb’... -
Page 8: Vna Calibration
OSLT is the most commonly used two-port calibration method. The Thru connections are performed by using well-known, precision calibration adapters in male-male or female-female configuration or as a direct connection of the male and the female test ports. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... -
Page 9: Calibration Check
This should be done from time to time to identify defects. Air Lines, Precision Adapters and Mismatch Standards can also be used as a faster method for more frequent checks. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... -
Page 10: Calibration Kit Service
5. Calibration Kit Service 5.1 Calibration interval Rosenberger suggests a calibration interval of 12 months. Depending on the frequency of use, the wear and the actual requirements a different calibration interval might be suitable. This lies in the responsibility of the user. -
Page 11: Use, Maintenance And Care
It is important to take all necessary safety precautions when using chemicals or solvents. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... -
Page 12: Interface Dimensions And Gauging
This may result in buckling of the socket contacts or damage to the internal structure of a device due to the axial forces generated. NOTE: At no time should the pin depth of the connector be protruding. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... - Page 13 This will result in poor reflection and possibly unreliable contact. 6.2.2 Gauges The Rosenberger gauges are of screw-on type in plug and jack version. They can be used to gauge calibration standards as well as test ports, test port cables, adapters and DUTs.
- Page 14 Figure 6-1 Connector gauges and gauge blocks for the RPC-N 50 connector Figure 6-2 RPC-N 50 Gauge Block reference lengths NOTE: further Information see user manual 05GK0KS-010 Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
-
Page 15: Mechanical Specifications
Keep connectors clean. Do not touch mating plane surfaces. Natural skin oils and microscopic particles of dirt are easily transferred to a connector interface and are very difficult to remove. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... -
Page 16: Rosenberger Hochfrequenztechnik Gmbh & Co. Kg Tel. : +49 8684
10. Use a torque wrench to make a final connection. Table 4-2 provides information about the torque wrench recommended for use with the calibration kit. A torque wrench is included in the calibration kit. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260... - Page 17 Rev. Engineering change number Name Date Herbert Babinger 24/04/12 Markus Hantschel 21/12/20 20-1058 Lars Ramtke 21/12/20 Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com Email : info@rosenberger.com 17 / 17...
