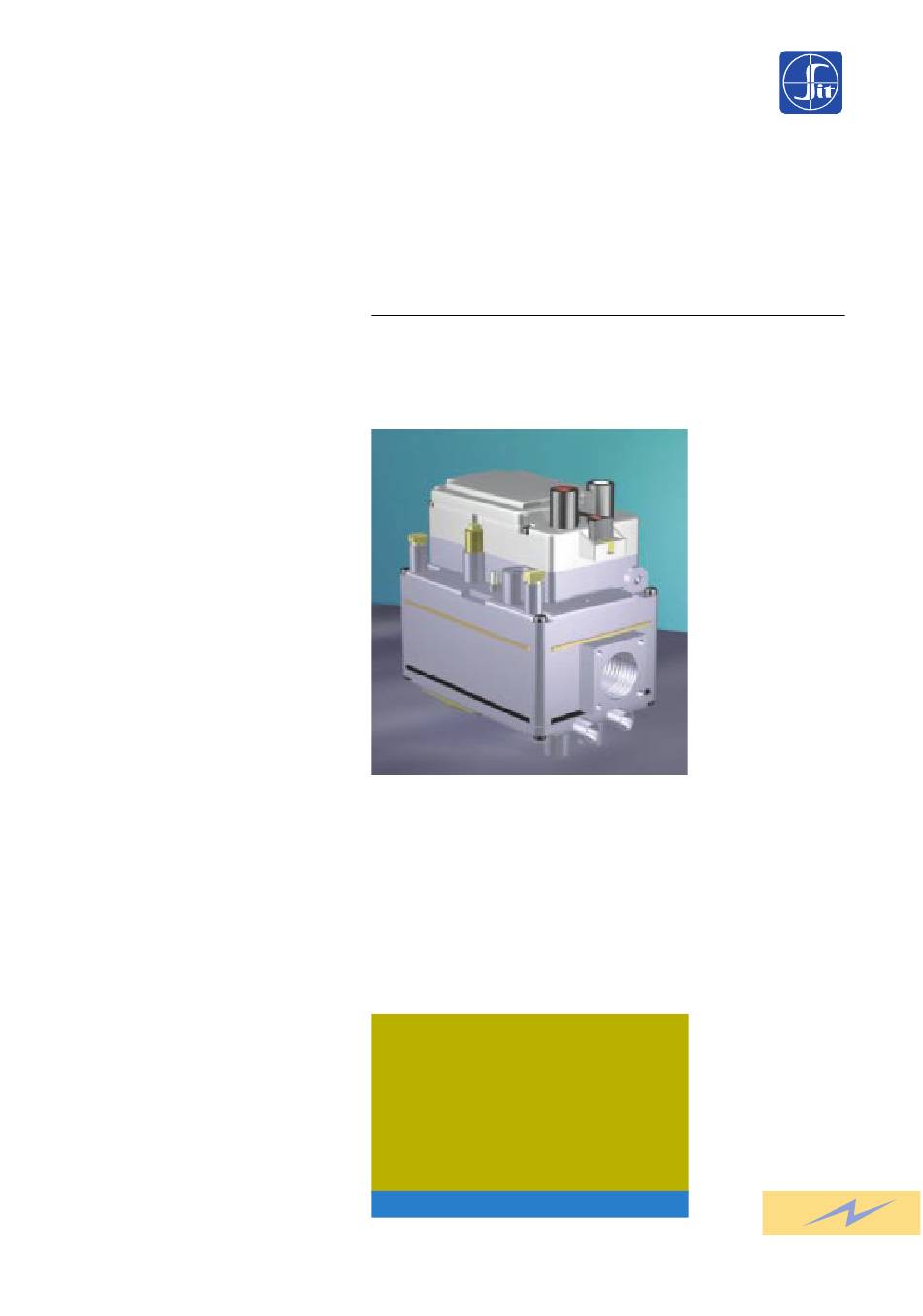

- Page 1 SIT Group 8 1 0 E L E T T R O S I T M U L T I F U N C T I O N A L G A S C O N T R O L...
- Page 2 On request, a step ignition device can be fitted. 810 ELETTROSIT is suitable for use with gas heating appliances (boilers, hot air generators, etc.). M A I N F E A T U R E S...
- Page 3 D E S C R I P T I O N 1 Ignition button (pilot position) 7 Pressure regulator override device 2 Main burner ignition enabling 8 Inlet pressure test point button 9 Outlet pressure test point 3 Shutdown button 10 On-off solenoid valve 4 Pressure regulator setting device 11 Thermocouple connections...
- Page 4 D I M E N S I O N S Rp 3/4 Rp 3/4 18,5 F L O W R A T E A S A F U N C T I O N O F P R E S S U R E D R O P Q [m /h, d=0.6] Q [m...
- Page 5 O P E R A T I O N Pilot flame ignition Depress the button and ignite the pilot flame, fig. 1 keeping the button fully depressed for a few seconds (fig.1). In controls with enabling for electrical ignition, the pilot can be ignited automatically by depressing the button .
- Page 6 I N S T A L L A T I O N Main gas connection The connection is made using gas pipes with Rp 1/2 ISO 7 (or Rp 3/4) threading. Torque: 25 Nm. If, alternatively, flanges (available on request) are used, first screw the pipes onto the flanges and then the flanges to the control.
- Page 7 S E T T I N G S A N D A D J U S T M E N T S Measurement of the inlet and outlet pressure The inlet and outlet pressures of the gas can be measured by unscrewing the provided test point sealing screws.
- Page 8 810 ELETTROSIT High flow multifunctional control for gas appliances with electrical power supply. SIT La Precisa Viale dell'Industria 31/33 35129 PADOVA - ITALY Tel. 049/8293111 - Fax 049/8070093 - Telex 430130 SITEC I...
