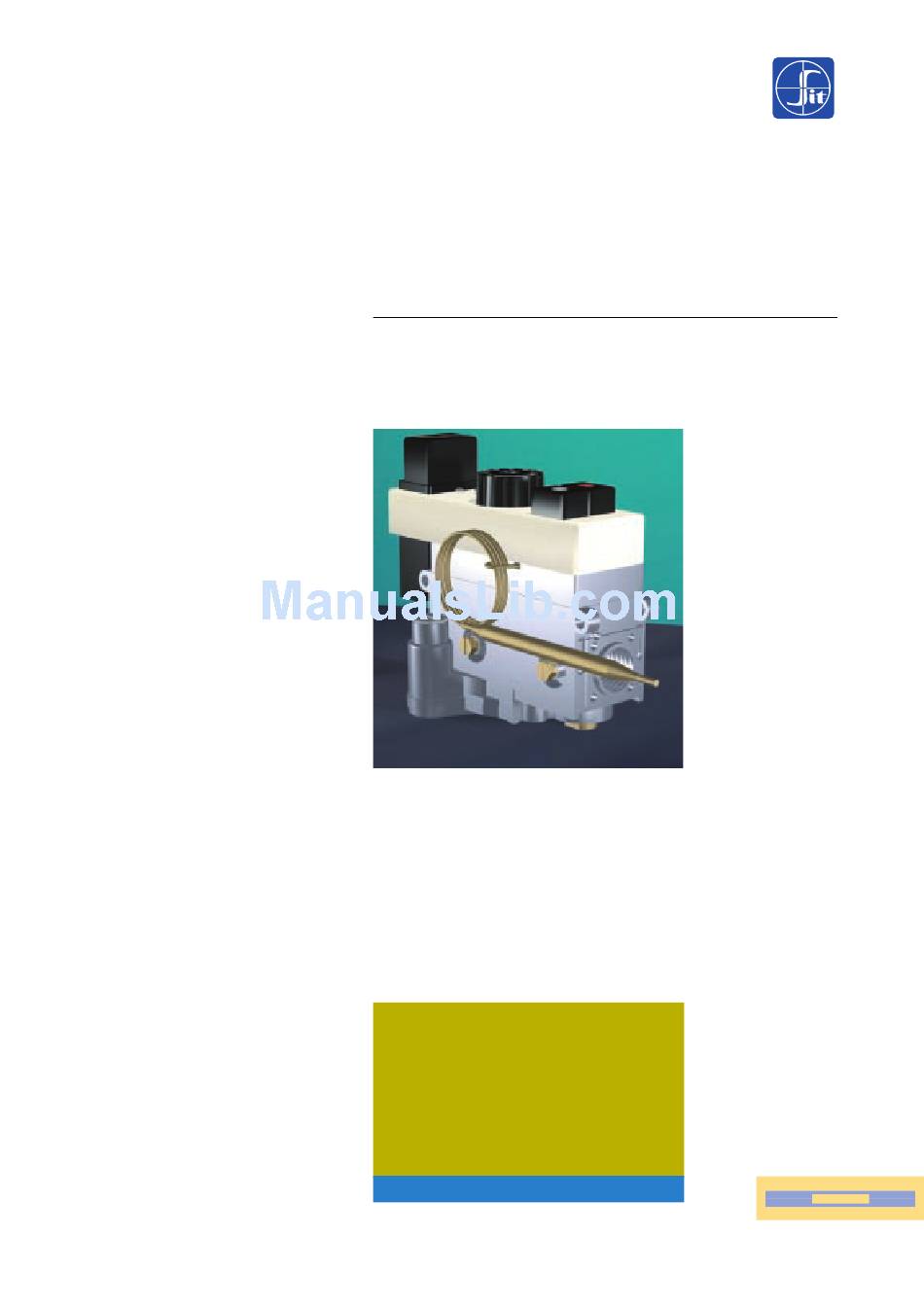

- Page 1 SIT Group 7 1 0 M I N I S I T M U L T I - F U N C T I O N A L G A S C O N T R O L THERMOELECTRIC FLAME SUPERVISION DEVICE...
- Page 2 The 710 MINISIT is suitable for use with stoves, boilers, catering equipment and room heaters. M A I N F E A T U R E S Thermoelectric safety device.

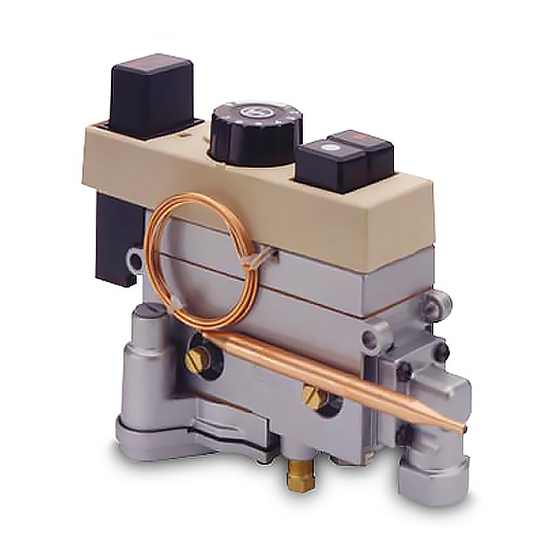

- Page 3 D E S C R I P T I O N Ignition button Oulet pressure setting screw (versions Shut-down button with flow regulator) Piezo-electric ignition button Inlet pressure test point (optional) Outlet pressure test point Temperature setting knob Thermocouple connection Screw for adjusting gas flow to pilot Pilot outlet Minimum flow setting screw...
- Page 4 D I M E N S I O N S G A S F L O W A S A F U N C T I O N O F P R E S S U R E L O S S Q [m /h d=0.6] Q = 3.9 m 3 /h...
- Page 5 A C T U A T I O N Ignition Press button and keep it depressed. (Fig. 1) fig. 1 Light the pilot burner and wait a few seconds. If the valve is fitted with a piezo-electric igniter, press button to light the burner.
- Page 6 I N S T A L L A T I O N Main gas connection The connection must be made using gas pipes with 1/2 or 3/8 inlet and 3/8 outlet Rp ISO 7. Torque: 25 Nm. Alternatively, it is possible to use a nut and olive connection for Ø 12 mm pipes (Codes 0.958.025 and 0.957.007) (torque 15 Nm).
- Page 7 S E T T I N G S A N D A D J U S T M E N T S Setting the thermostat The thermostat is calibrated and sealed at the factory. Re-calibration is not authorised as it may adversely affect the performance of the appliance to which it is fitted and will also invalidate warranty.
- Page 8 7 1 0 M I N I S I T Multi-functional control for gas appliances without electrical power supply SIT La Precisa Viale dell'Industria 31/33 35129 PADOVA - ITALY Tel. 049/8293111 - Fax 049/8070093 - Telex 430130 SITEC I...
