Newgrind Rhino RX7 User Manual

Hide thumbs Also See for Rhino RX7:
Table of Contents

Advertisement

Quick Links

Address:
103B-81 Golden Drive
Coquitlam, BC
Canada V 3K 6R2
Assembled in Canada using only the highest-quality USA components

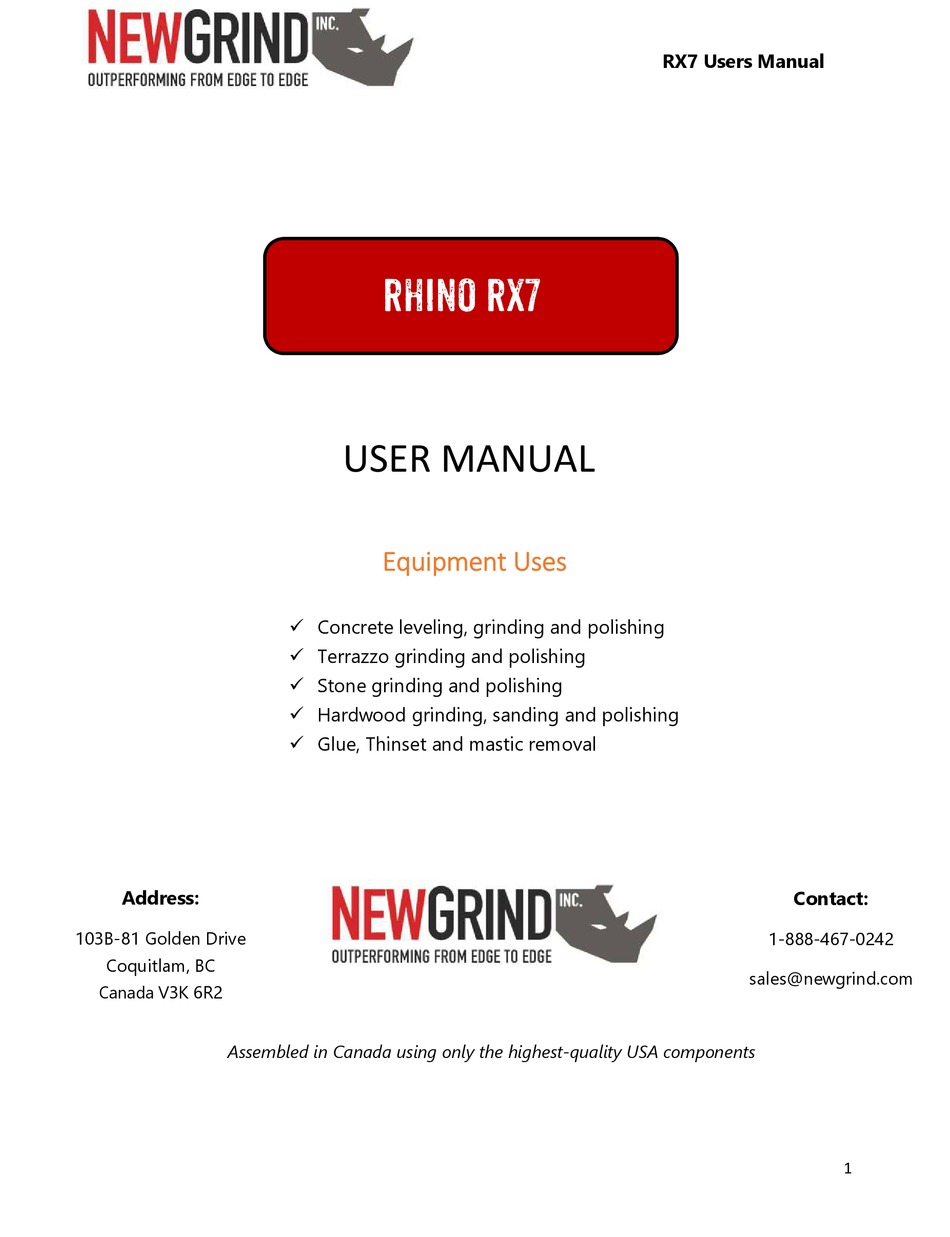

RHINO RX7
USER MANUAL

Equipment Uses

 Concrete leveling, grinding and polishing
 Terrazzo grinding and polishing
 Stone grinding and polishing
 Hardwood grinding, sanding and polishing
 Glue, Thinset and mastic removal
RX7 Users Manual
Contact:
1-888-467-0242
sales@newgrind.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rhino RX7 and is the answer not in the manual?

Questions and answers

Related Manuals for Newgrind Rhino RX7

Summary of Contents for Newgrind Rhino RX7

  • Page 1: Equipment Uses

    RX7 Users Manual RHINO RX7 USER MANUAL Equipment Uses  Concrete leveling, grinding and polishing  Terrazzo grinding and polishing  Stone grinding and polishing  Hardwood grinding, sanding and polishing  Glue, Thinset and mastic removal Address: Contact: 103B-81 Golden Drive...

  • Page 2: Table Of Contents

    RX7 Users Manual Table of Contents Equipment Uses..............................1 RX7 Diagram ................................ 3 Machine Specifications ............................3 Tooling ................................4 Safety Instructions ............................4 Work Area Safety ............................4 Electrical Safety ............................. 4 Personal Safety ............................. 5 Equipment Safety and Care .......................... 6 Service Safety ..............................

  • Page 3: Rx7 Diagram

    RX7 Users Manual RX7 Diagram NOTE: The RX7 is pictured here attached to a Milwaukee variable speed polisher. If you are using a different polisher/sander the features may be slightly different. 1. Handle 2. Speed control dial 3. Velcro strap 4.

  • Page 4: Tooling

    RX7 Users Manual Quick change tooling Quick belt changing system Wet or dry grinding UHMW floating dust skirt Runs forward or reverse Can be used as an edger YES – grinds to within 1/8 of the edge Single vacuum attachment Tooling Rhino Style tooling Standard trapezoid...

  • Page 5: Personal Safety

    RX7 Users Manual 4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. 5.

  • Page 6: Equipment Safety And Care

    RX7 Users Manual 7. Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. 8.

  • Page 7: Service Safety

    RX7 Users Manual 9. Tools and accessories must be rated for at least the speed stated on the equipment serial plate. Tools and other accessories running faster than rated speed can fly apart and cause injury. 10. Due to the dusty nature during use of this equipment, be sure to clean equipment often to remove dust accumulations.

  • Page 8: Mounting The Variable Speed Hand Grinder To The Rx7

    RX7 Users Manual on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or in- correct operating procedures or conditions and can be avoided by taking proper precautions as given below. 1.

  • Page 9: Operating The Grinder

    RX7 Users Manual 7. Plug in hand grinder and place the arbor squarely over the drive shaft and bump trigger by depressing and quickly releasing. To thread the grinder into the RX7 until it is fully seated. 8. Centre the hand grinder over the support post and turn top plate nut until the support post touches the bottom of the grinder snugly.

  • Page 10: Adjusting The Speed

    RX7 Users Manual 4. Squeeze the trigger to start grinding Adjusting the speed 1. The grinder feature s a dial speed control, which controls the polisher's maximum rotations per minute. The speed will remain variable to the chosen dial setting by use of the trigger switch.

  • Page 11: Parts And Accessories

    RX7 Users Manual 4. Remove the bolt from the back of the tool plate behind each tool to release the tool (Or in the case of Velcro-backed tools, carefully peel them off) 5. Hold the replacement tool up against the desired slot on the tool plate and insert/tighten the bolt.

  • Page 12: Weekly

    NewGrind Inc. will, at its option, repair or replace, at the NewGrind Inc. factory or at a point designated by NewGrind Inc. any part which shall appear to the satisfaction of NewGrind Inc.

  • Page 13: Liability Limitations

    RX7 Users Manual conditions, flood, tidal waves, typhoon, hurricane, earthquake, lightning, explosion or any other causes, contingencies or circumstances within CANADA not subject to the Seller’s control which prevent or hinder the manufacture or delivery of the products or make the fulfillment of these terms and conditions impracticable.
  • Page 14 RX7 Users Manual and all taxes, including, but not limited to, excise, sales, use, property or transportation taxes related to the sale or use of the products, now or hereafter imposed, together with all penalties and expenses. Purchaser shall be responsible for collecting and/or paying any and all such taxes, whether or not they are stated in any invoice for the Products.

  • Page 15: Agreements

    RX7 Users Manual Defective or failed material shall be held at the Purchaser’s premises until authorization has been granted by Seller to return or dispose of Products. Products that are to be returned for final inspection must be returned Freight Prepaid in the most economical way. Credit will be issued for material found to be defective upon Seller’s inspection based on prices at time of purchase.

Table of Contents
