TM
T37
T37S

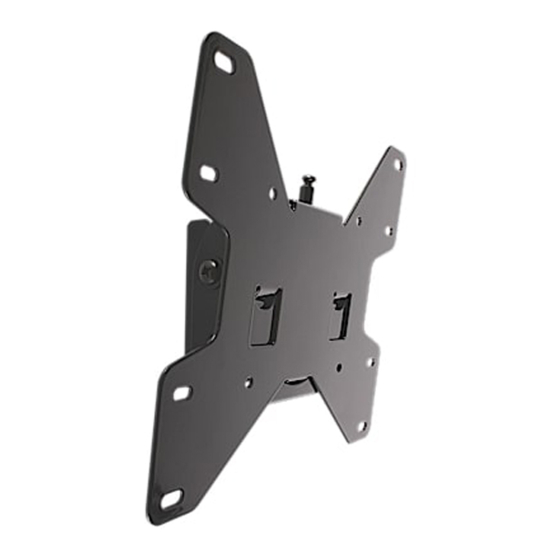

Tilt Wall Mount
For 13"-37" TV's / Weight Capacity: 80 lb
www.crimsonav.com
support@crimsonav.com
Instruction Manual
Manual de Instrucciones
Manuel D'instructions
WA R NING!
!
!
WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM
IMPROPER INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE
BEGINNING.
Do not use this product for any purpose not explicitly specified by Crimson AV. Improper installa-
tion may cause property damage or personal injury. If you do not understand these directions,
or have doubts about the safety of the installation, contact Crimson AV Customer Service or call
a qualified contractor. Crimson AV is not liable for damage or injury caused by incorrect mount-
ing, assembly, or use.
The hardware provided with this product, is exclusively intended for installation on walls made
of solid wood, concrete, concrete block or solid wood columns with a maximum of 16 mm
of drywall. For walls made of other materials, for example hollow bricks, please consult your
installer and/or specialist supplier.
DO NOT EXCEED THE MAXIMUM WEIGHT CAPACITY FOR THIS PRODUCT
1
IT37-0002
Advertisement
Related Manuals for Crimson T37
Summary of Contents for Crimson T37
- Page 1 IMPROPER INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE BEGINNING. Do not use this product for any purpose not explicitly specified by Crimson AV. Improper installa- tion may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Crimson AV Customer Service or call a qualified contractor.
- Page 2 Crimson AV o llame a un operario cualificado. Crimson AV no es respon- sable de daños o lesiones causados por el montaje, ensamblaje o uso incorrectos.
-
Page 3: We Ig Ht C A Pa C I T Y
WE IG HT C A PA C I T Y 80lb / 36k g Maximum Weight Capacity Peso máximo de pantalla Poids maximal de l’écran C A U T IO N ! T O O L S R E Q U IR E D Herramientas necesarias Outils nécessaires Wood bit 4mm - 5/32”. - Page 4 PA C KA G E C O NT E NT S PA C KA G E C O NT E NT S Contenido del paquete Contenido del paquete Contenu de l’emballage Contenu de l’emballage #14 x 2.5” A (3) B (3) M4 x 12mm M5 x 12mm M6 x 12mm...
- Page 5 PA C KA G E C O NT E NT S PA C KA G E C O NT E NT S Contenido del paquete Contenido del paquete Contenu de l’emballage Contenu de l’emballage M6 Washer M4 / M5 / M6 D (4) C (4) G (1)
-
Page 6: Install Instructions
I NS TALL INSTR UCTIO NS Instrucciones de instalación Instructions d’installation 1a-1 W O O D S T U D I N S TA L LAT IO N Using stud finder locate center of stud Uso de localizador de montantes de ubicar el centro del montante. Utiliser un localisateur de montants de localiser le centre du montant. - Page 7 1 a -3 W O O D S T U D I N S TA L LAT IO N Use wall plate (G) to mark hole location on center line. Use la placa de pared (G) para marcar la ubicación del agujero en la línea central. Utilisez la plaque murale (G) pour marquer l’emplacement trou dans l’axe.
- Page 8 1a-4 W O O D S T U D I N S TA L LAT IO N Use 4mm - 5/32” drill bit to make a 65mm - 2.5” hole on marks. El uso de 4mm - broca 5/32” hacer un 65mm - 2.5” agujero en materia de marcas. Utilisez 4mm - foret 5/32in faire un 65mm - 2.5”...
- Page 9 1 b-1 M A SO N RY B L OC K & CONCRETE INSTALLATION Use level to make a line on wall. Use un nivel para hacer una línea en la pared. Utilisez le niveau pour faire une ligne sur le mur. 1 b -1 1 b - 2 1 b-2...
- Page 10 M AS O N RY B L OCK & CONCRETE INSTALLATION 1 b -3 Use 10mm - 3/8” drill bit to make a 65mm - 2.5” hole on marks. El uso de 10mm - broca 3/8” hacer un 65mm - 2.5” agujero en materia de marcas. Utilisez 10mm - foret 3/8”...
- Page 11 M AS O N RY B L OCK & CONCRETE INSTALLATION 1 b -4 Insert (B) into both holes. Use a hammer to tap in if necessary. Insertar (B) en ambos orificios. Utilice un martillo para golpear en caso de necesidad. Insérer (B) dans les deux trous.
- Page 12 I N S TA L L WA L L P LAT E Fasten wall plate to wall using screw (A). Hand toold only. Fije la placa de pared a pared con el tornillo (A). Mano toold solamente. Fixer la plaque murale au mur avec la vis (A). Hand toold seulement. IT37-0002...
- Page 13 3 -1 AT TA C H M OU N T PL AT E Align mount plate (H) to holes on back of TV. Fasten mount plate using supplied screws (I-P) with screwdriver. Use spacers (C) between mount and tv if needed. If screw bottoms out use washers (not included) to eliminate slack.
- Page 14 3 -2 AT TA C H MOUNT PLATE RECESSED TV Use spacers (C) between mount and TV if needed. Use los espaciadores (C) entre el monte y la televisión, si es necesario. Utiliser des cales (C) entre le Mont et la télévision si nécessaire. 3- 2 M - P IT37-0002...
- Page 15 HA N G T V Align tabs on mount plate with holes in wall plate then slide down into place. Tighten securement screw to secure. Alinee las lengüetas de la placa de montaje con los agujeros en la placa de pared y después hacia abajo en su lugar.
-
Page 16: Warranty
Crimson AV LLC no se hace responsable de ningún tipo de daños causados por el uso de los productos Crimson AV LLC o por el uso inapropiado de dichos productos. Crimson AV LLC no es responsable de los daños incidentales o emergentes. -
Page 17: Garantie
Nous vous félicitons pour l’achat de ce produit Crimson! Vous venez d’acquérir un produit réalisé à partir de matériaux durables et d’une conception ingénieuse jusque dans les moindres détails. Crimson AV LLC est ainsi en mesure de garantir ses produ- its pendant 10 ans contre les défauts de matériaux et de fabrication. - Page 18 © 2010 Crimson AV LLC. All rights reserved. Crimson is a Crimson AV LLC brand. Crimson and Crimson AV Mounting Solutions logos are trademarks of Crimson AV LLC. Crimson AV LLC 10513 United Parkway Schiller Park, IL 60176 IT37-0002...
