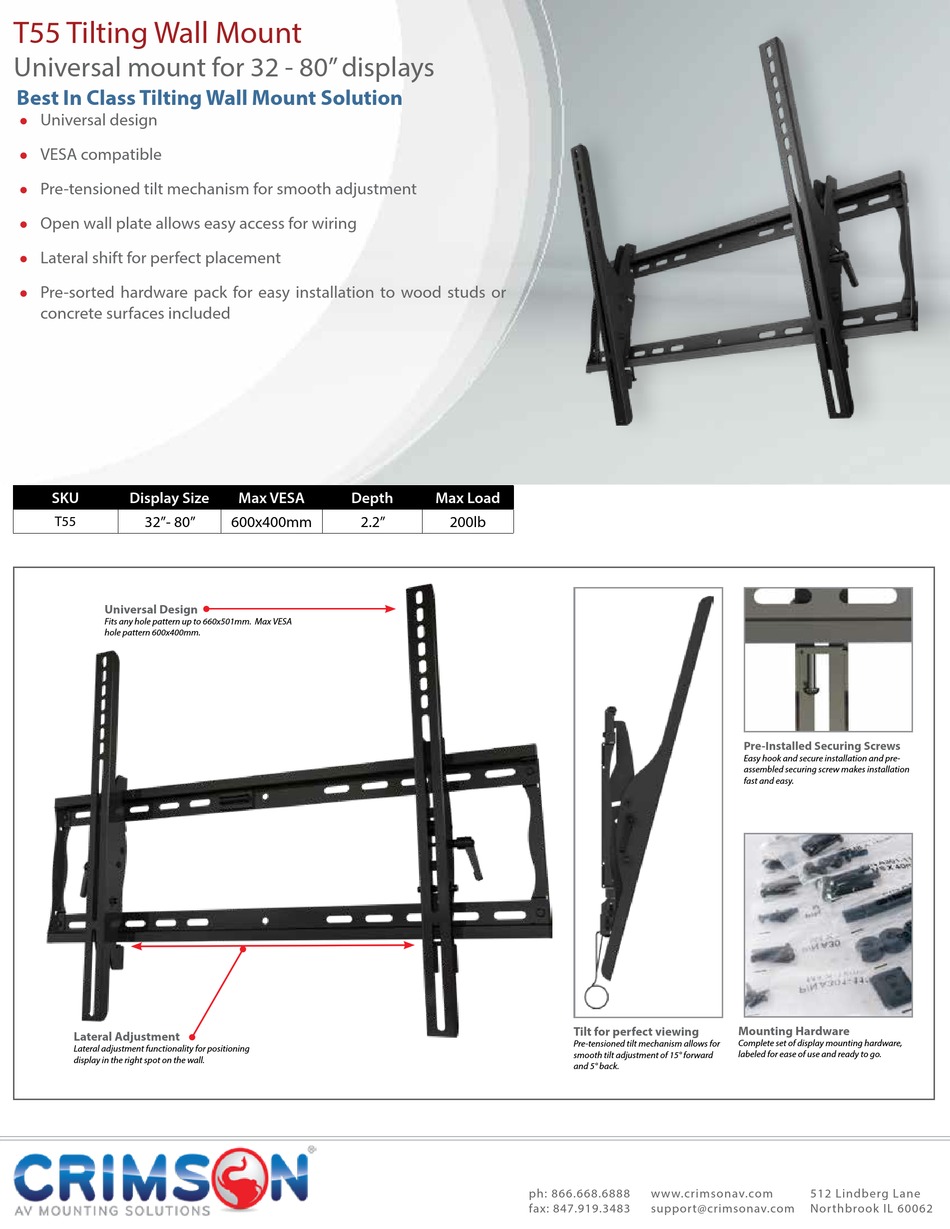

Crimson T55 Quick Start Manual

T55 Tilting Wall Mount
Universal mount for 32 - 80" displays

Best In Class Tilting Wall Mount Solution

Universal design

l
VESA compatible
l
Pre-tensioned tilt mechanism for smooth adjustment
l
Open wall plate allows easy access for wiring
l
Lateral shift for perfect placement
l
Pre-sorted hardware pack for easy installation to wood studs or
l
concrete surfaces included
SKU Display Size
32"- 80"
T55
Universal Design
Fits any hole pattern up to 660x501mm. Max VESA
hole pattern 600x400mm.
Lateral Adjustment
Lateral adjustment functionality for positioning
display in the right spot on the wall.
Max VESA Depth
600x400mm 2.2"
Max Load
200lb
Tilt for perfect viewing
Pre-tensioned tilt mechanism allows for
smooth tilt adjustment of 15° forward
and 5° back.
