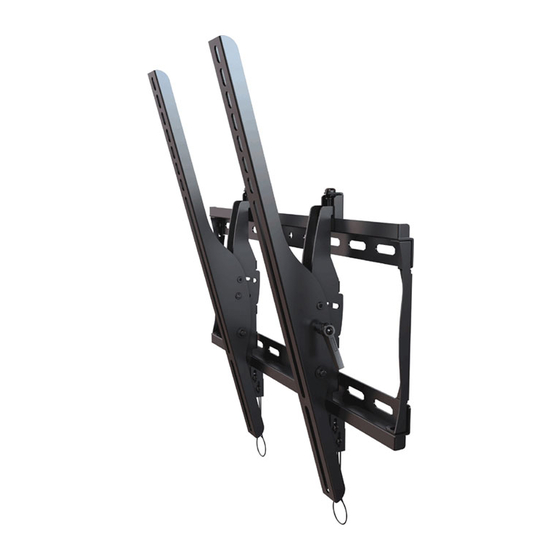

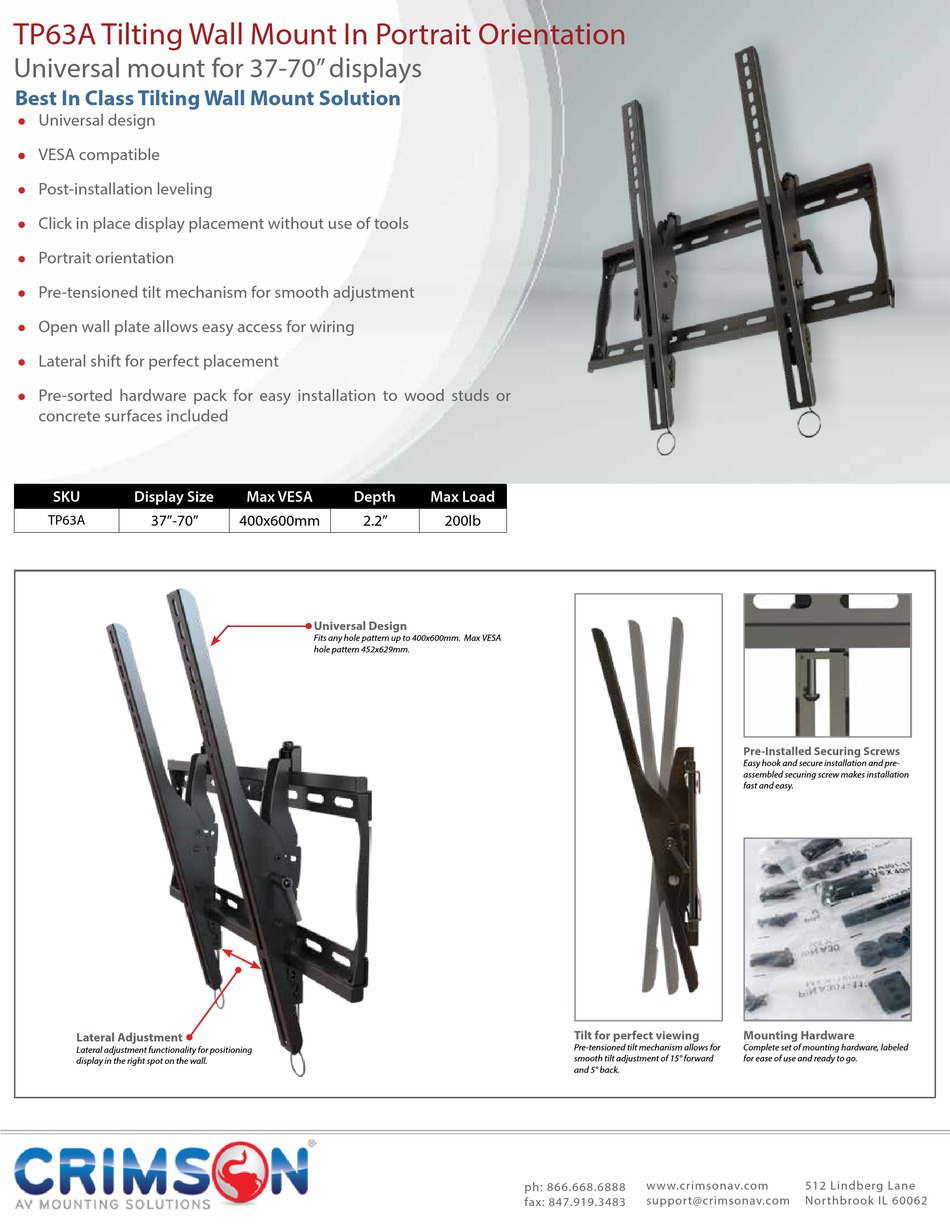

TP63A Tilting Wall Mount In Portrait Orientation
Universal mount for 37-70" displays
Best In Class Tilting Wall Mount Solution
Universal design
l
VESA compatible
l
Post-installation leveling
l
Click in place display placement without use of tools
l
Portrait orientation
l
Pre-tensioned tilt mechanism for smooth adjustment
l
Open wall plate allows easy access for wiring
l
Lateral shift for perfect placement
l
Pre-sorted hardware pack for easy installation to wood studs or
l
concrete surfaces included
SKU Display Size
TP63A 37"-70"
Lateral Adjustment
Lateral adjustment functionality for positioning
display in the right spot on the wall.
Max VESA Depth
400x600mm 2.2"
Universal Design
Fits any hole pattern up to 400x600mm. Max VESA
hole pattern 452x629mm.
Max Load
200lb
Tilt for perfect viewing
Pre-tensioned tilt mechanism allows for
smooth tilt adjustment of 15° forward
and 5° back.
ph: 866.668.6888
fax: 847.919.3483
Pre-Installed Securing Screws
Easy hook and secure installation and pre-
assembled securing screw makes installation
fast and easy.
Mounting Hardware
Complete set of mounting hardware, labeled
for ease of use and ready to go.
