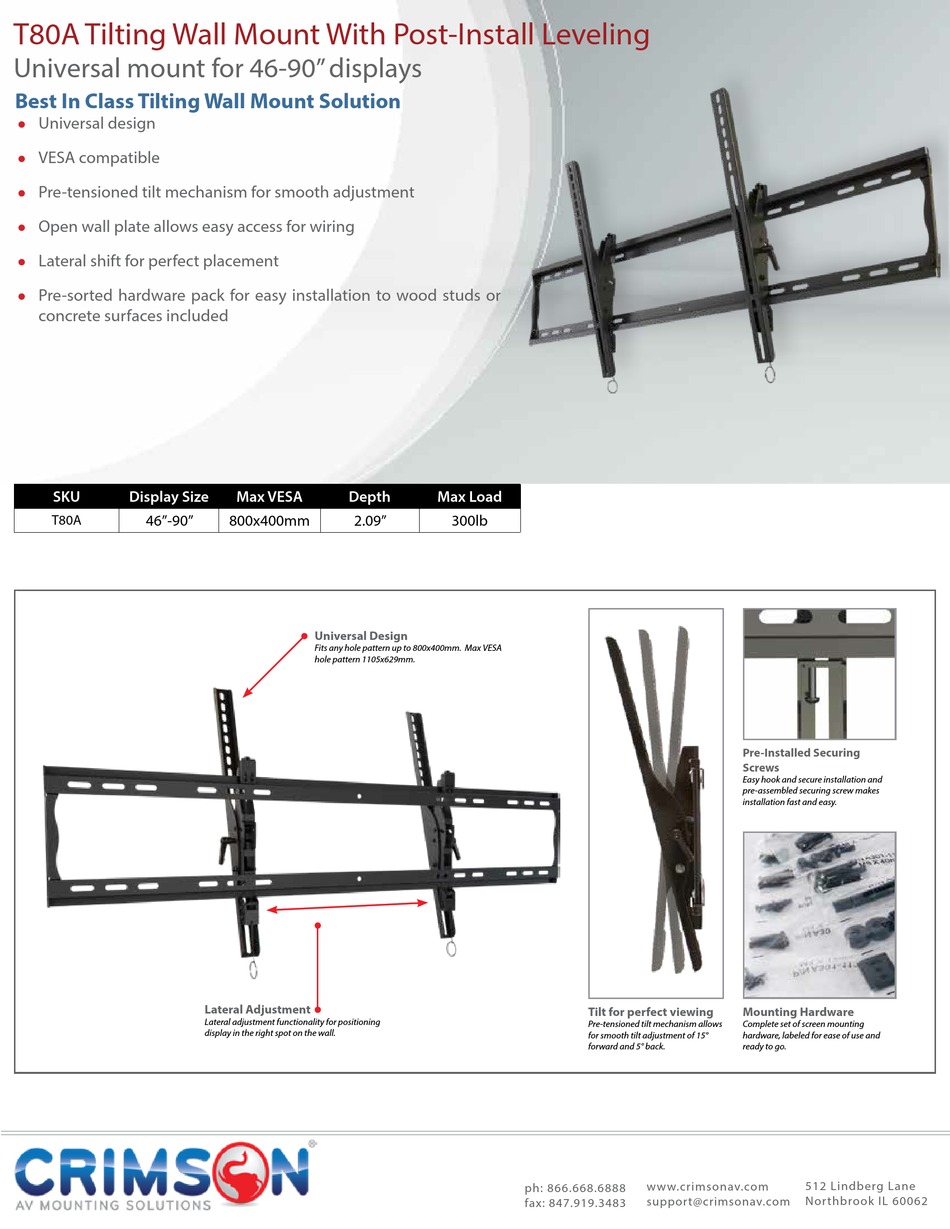

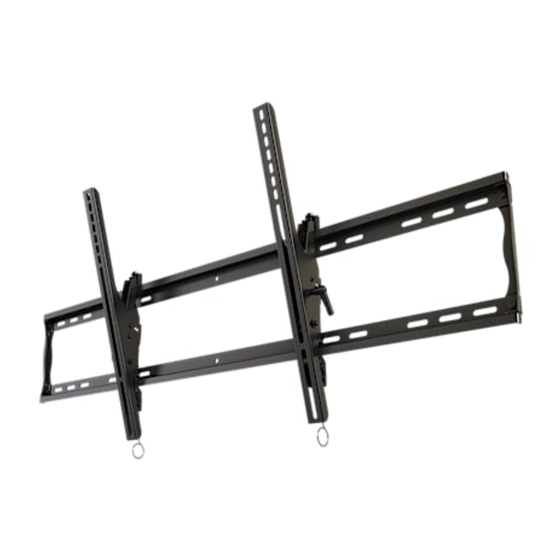

T80A Tilting Wall Mount With Post-Install Leveling
Universal mount for 46-90" displays
Best In Class Tilting Wall Mount Solution
Universal design
l
VESA compatible
l
Pre-tensioned tilt mechanism for smooth adjustment
l
Open wall plate allows easy access for wiring
l
Lateral shift for perfect placement
l
Pre-sorted hardware pack for easy installation to wood studs or
l
concrete surfaces included
SKU Display Size
T80A 46"-90"
Max VESA Depth
800x400mm 2.09"
Universal Design
Fits any hole pattern up to 800x400mm. Max VESA
hole pattern 1105x629mm.
Lateral Adjustment
Lateral adjustment functionality for positioning
display in the right spot on the wall.
Max Load
300lb
Tilt for perfect viewing
Pre-tensioned tilt mechanism allows
for smooth tilt adjustment of 15°
forward and 5° back.
ph: 866.668.6888
fax: 847.919.3483
Pre-Installed Securing
Screws
Easy hook and secure installation and
pre-assembled securing screw makes
installation fast and easy.
Mounting Hardware
Complete set of screen mounting
hardware, labeled for ease of use and
ready to go.
