Summary of Contents for Ricoh MP CW2201SP

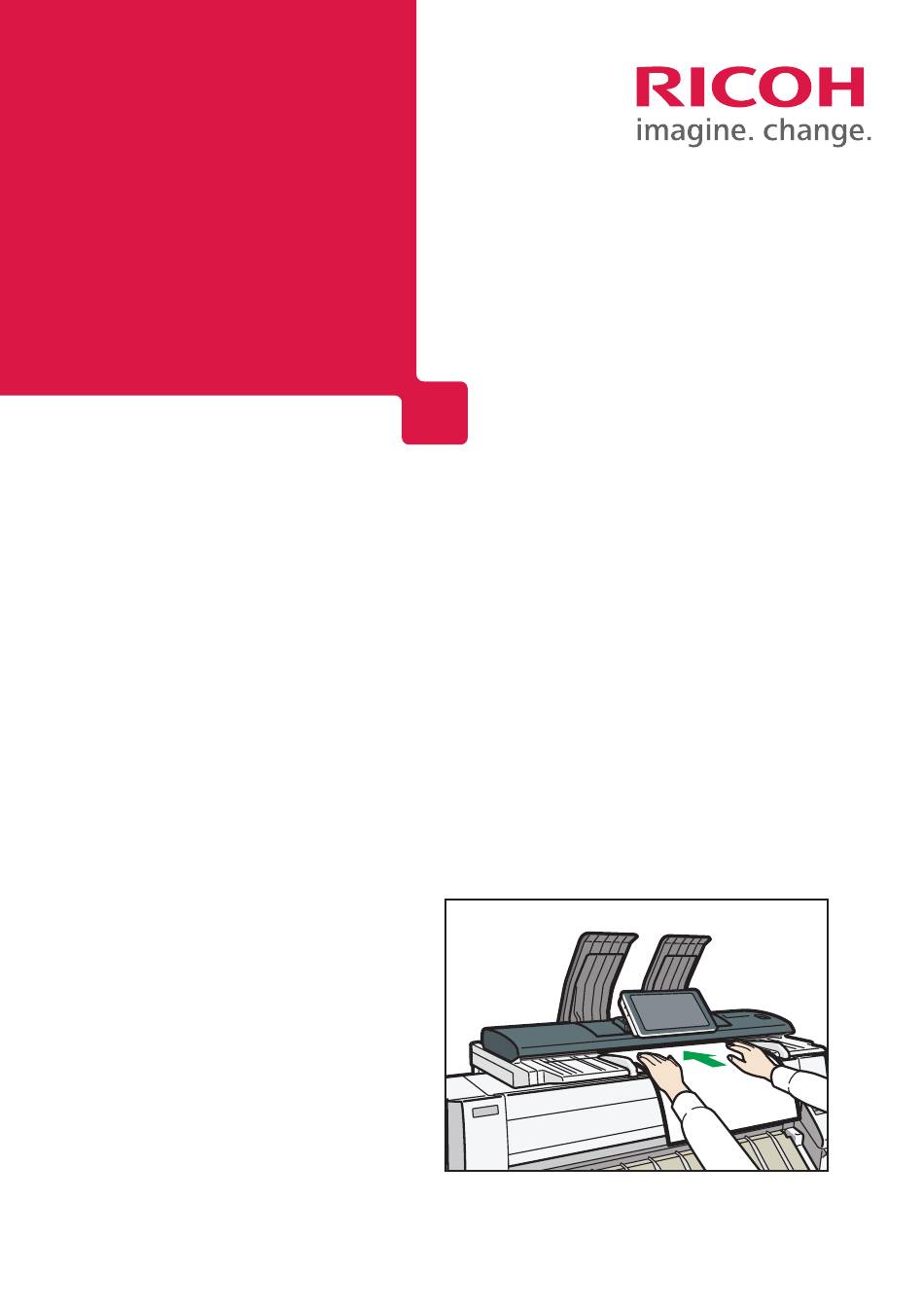

  • Page 1 CIP Training MP CW2201SP Copy...

  • Page 3: Basic Procedure

    3. Copy CIP Training MP CW2201SP Copy This chapter describes frequently used copier functions and operations. For information not included in this chapter, see Copy/ Document Server available on our website. Basic Procedure To make copies of originals, place them on the original table. For details, see page 60 "Placing Originals on the Original Table".
  • Page 4 CIP Training MP CW2201SP Copy 3. Copy Place the original on the original table. The original feeds into the machine automatically, and copying starts. If [Press Start Key] is selected for [Feed Start Method], copying starts after you press [Start].

  • Page 5: Reducing Or Enlarging Originals

    CIP Training MP CW2201SP Copy Reducing or Enlarging Originals Reducing or Enlarging Originals This section describes methods of reducing or enlarging images by specifying a reproduction ratio, or a paper size. Base Point The upper right corner is the base point.
  • Page 6 CIP Training MP CW2201SP Copy 3. Copy When Using the Copy Application About how to use the application's screen, see page 43 "[Copy] Screen". When Using the Copier (Classic) Application Press [Reduce / Enlarge]. Select a ratio, and then press [OK].
  • Page 7 CIP Training MP CW2201SP Copy Reducing or Enlarging Originals CKN007 When Using the Copy Application About how to use the application's screen, see page 43 "[Copy] Screen". When Using the Copier (Classic) Application To specify a reproduction ratio, enter the ratio using the number keys or specify the ratio with [ ] or [ ].

  • Page 8: Auto Reduce / Enlarge

    CIP Training MP CW2201SP Copy 3. Copy Enter the desired ratio with the number keys, and then press [ ]. Press [OK] twice. Place the original, and start scanning. Auto Reduce / Enlarge The machine automatically detects the original size and then selects an appropriate reproduction ratio based on the paper size you select.

  • Page 9: User Auto Reduce / Enlarge

    CIP Training MP CW2201SP Copy Reducing or Enlarging Originals E (34 × 44) , D (22 × 34) , C (17 × 22) , B (11 × 17) , A (8 × 11) • Architecture E (36 × 48) , D (24 × 36) , C (18 ×...
  • Page 10 CIP Training MP CW2201SP Copy 3. Copy You can select the following combinations: (mainly Europe) Original size Copy size A0, A1, A2, A3, A4, B1 JIS, B2 JIS, B3 JIS, B4 JIS B1 JIS B2 JIS B3 JIS B4 JIS...
  • Page 11 CIP Training MP CW2201SP Copy Reducing or Enlarging Originals When Using the Copy Application About how to use the application's screen, see page 43 "[Copy] Screen". When Using the Copier (Classic) Application Press [User Auto R/E]. Check that the combination selected for User Auto Reduce / Enlarge is the one you want.

  • Page 12: Combined Copying

    CIP Training MP CW2201SP Copy Combined Copying This mode can be used to select a reproduction ratio automatically and copy the originals onto a single sheet of copy paper. The machine selects a reproduction ratio between 25.0 and 400.0%. If the orientation of the original is different from that of the copy paper, the machine will automatically rotate the image by 90 degrees to make copies properly.
  • Page 13 CIP Training MP CW2201SP Copy Combined Copying CKN016 When Using the Copy Application About how to use the application's screen, see page 43 "[Copy] Screen". When Using the Copier (Classic) Application Press [Combine]. Select the number of originals to combine.

  • Page 14: Specifying The Length Of Copy Paper Cut

    CIP Training MP CW2201SP Copy 3. Copy Specifying the Length of Copy Paper Cut Specify the length to cut the paper loaded in the paper input location. • • Y Y o o u u c c a a n n n n o o t t c c u u t t t t h h e e p p a a p p e e r r i i n n t t h h e e p p a a p p e e r r b b y y p p a a s s s s l l o o c c a a t t i i o o n n . .
  • Page 15 CIP Training MP CW2201SP Copy Specifying the Length of Copy Paper Cut When Using the Copier (Classic) Application Select Paper Input Location 1 or 2. Make sure that [Synchro Cut] is selected. Preset Cut Cuts the paper at a preset size, regardless of the size of the original. You can use this to copy different sized originals to the same size.
  • Page 16 CIP Training MP CW2201SP Copy 3. Copy The preset cut size differs depending on the paper roll width. It is cut in the following sizes. (mainly Europe) Paper roll width Preset Preset 841 mm 594 mm 420 mm 297 mm...

  • Page 17: Variable Cut

    CIP Training MP CW2201SP Copy Specifying the Length of Copy Paper Cut Paper roll width Preset Preset 11 inch 11 × 17 × 11 • Architecture Paper roll width Preset Preset 36 inch 36 × 48 24 × 36 30 inch 30 ×...
  • Page 18 CIP Training MP CW2201SP Copy 3. Copy When Using the Copier (Classic) Application Select [Variable Cut]. Enter the length with the number keys, and then press [ ]. Press [OK]. Select Paper Input Location 1 or 2.
  • Page 19 CIP Training MP CW2201SP Copy Copying from the Paper Bypass Location Copying from the Paper Bypass Location Use the paper bypass location to copy onto paper sizes that cannot be loaded on the paper input locations. About how to load paper in the paper bypass location, see page 152 "Loading Paper into the Paper Bypass Location".
  • Page 20 CIP Training MP CW2201SP Copy 3. Copy • If you specify [Display Automatically] for [Paper Settings Screen for Bypass], you can display the [Bypass Paper] screen by pressing [ ] instead of pressing [ ]. For details, see "General Features", Copy/ Document Server.
  • Page 21 CIP Training MP CW2201SP Copy Copying from the Paper Bypass Location Copying onto Custom Size Paper from the Paper Bypass Location Paper that has a horizontal length of 279.4–914.4 mm (11.00–36.00 inches) and a vertical length of 210.0–2,000.0 mm (8.27–78.74 inches) can be fed in from the paper bypass location.
  • Page 22 CIP Training MP CW2201SP Copy 3. Copy Sort The machine assembles copies as sets in sequential order. Depending on your model and which options are installed on it, some of these functions might not be available. For details, see "Functions Requiring Optional Configurations", Getting Started.
  • Page 23 CIP Training MP CW2201SP Copy Sort When Using the Copy Application About how to use the application's screen, see page 43 "[Copy] Screen". When Using the Copier (Classic) Application Press [Finishing]. Select [Sort] or [Rotate Sort], and then press [OK].

  • Page 24: Changing The Number Of Sets

    CIP Training MP CW2201SP Copy 3. Copy Changing the Number of Sets You can change the number of copy sets during copying. • • T T h h i i s s f f u u n n c c t t i i o o n n c c a a n n b b e e u u s s e e d d o o n n l l y y w w h h e e n n t t h h e e S S o o r r t t f f u u n n c c t t i i o o n n i i s s s s e e l l e e c c t t e e d d . .

  • Page 25: Storing Data In The Document Server

    CIP Training MP CW2201SP Copy Storing Data in the Document Server Storing Data in the Document Server The Document Server enables you to store documents being read with the copy feature on the hard disk of this machine. Thus you can print them later applying necessary conditions.
  • Page 26 __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________...
  • Page 27 __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________...
