Parts List; Resources Required - Lippert Components SolidStep 3.0 Installation And Owner's Manual

THE "CAUTION" SYMBOL ABOVE IS A SIGN THAT
A SAFETY RISK IS INVOLVED AND MAY CAUSE
PERSONAL INJURY AND/OR PRODUCT OR PROPERTY
DAMAGE IF NOT SAFELY ADHERED TO AND WITHIN
THE PARAMETERS SET FORTH IN THIS MANUAL
THE DEPLOYMENT AND RETRACTION OF THE STEP
ASSEMBLY CAN CAUSE INJURY IF PROPER
PRECAUTIONS ARE NOT TAKEN. THE STEP
ASSEMBLY WAS DESIGNED FOR AN OPERATIONAL
WEIGHT RATING OF 400 LBS.
MOVING PARTS CAN PINCH, CRUSH OR CUT. KEEP
CLEAR AND USE CAUTION.

Resources Required

• 1 to 2 People, depending on task
• Cordless or Electric Drill or Screw Gun
• Appropriate Drive Bit
5/32
• Drill Bit " (for #10 wood screws)
13/64
• Drill Bit " (for #10 bolts)
• Tape Measure
tv
lci1.com 574-537-8900
SolidStep
Adjustable Latch
Installation and Owner's Manual
(For Aftermarket Applications)

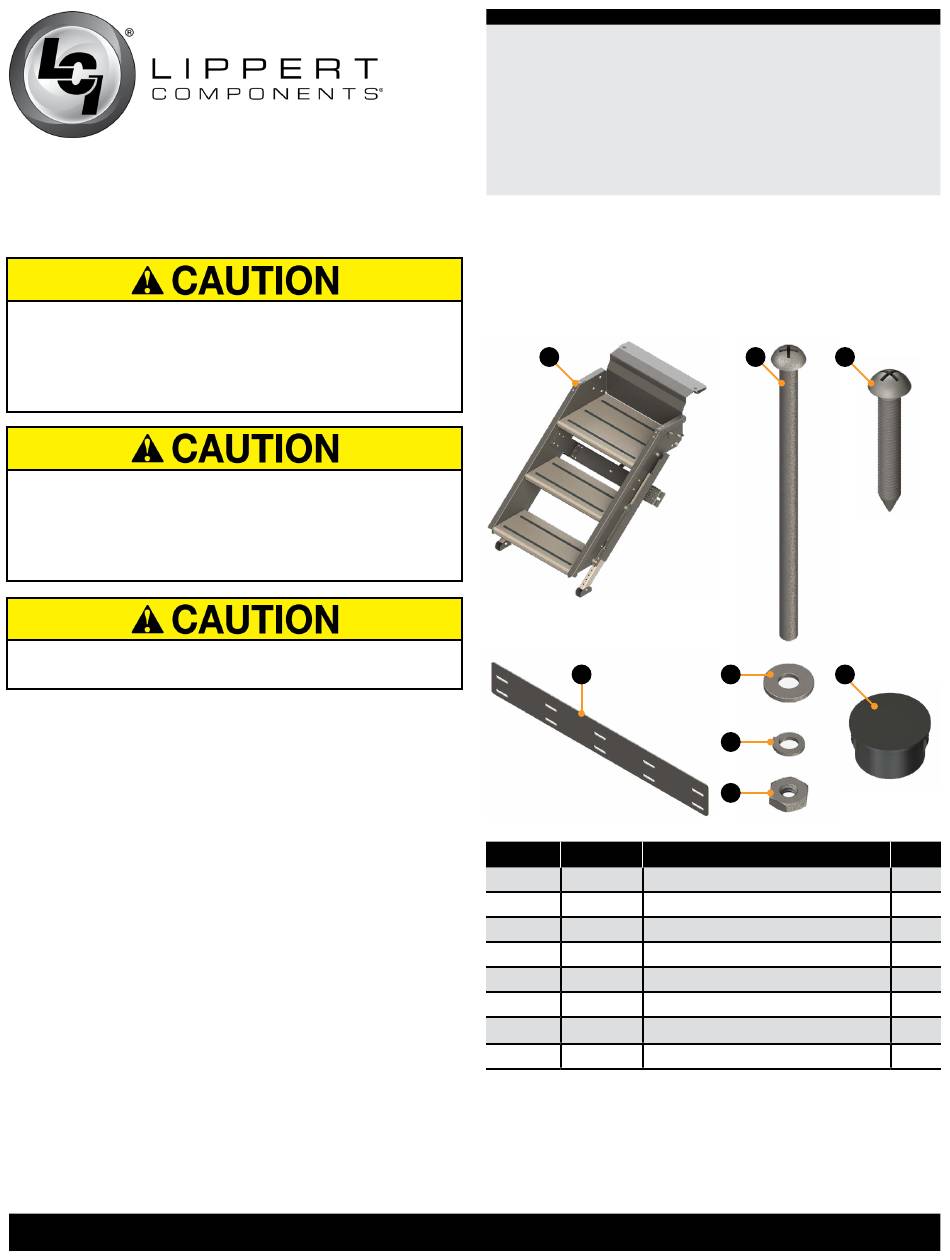

Parts List

NOTE: Part numbers are shown for identification purposes
only. Not all parts are available for individual sale. All parts
with a link to the Lippert Store can be purchased.
A
NOTE: Triple SolidStep shown
for reference only.
D
Letter Letter PN PN
A Varies
B 702570
C 723225
D 433704
E 231161
F 383612
G 383610
H 433786
3
CCD-0002548
3.0
®
B
E
F
G
Description Description
SolidStep Reference Only
Bolt, #10 - 24 x 4"
Screw, #10 - 13 x 1 1/4" Phillips
Backer Plate, 21" x 2 5/8"
Washer, #10
Lock Washer, #10 x .34
Nut, #10 - 24
Hole Plug, 5/8"
C
H
Qty Qty
1
10
10
1
10
10
10
2
Rev: 02.10.20
