  • Page 1: Table Of Contents

    CHECKING BEFORE THE INSTALLATION Checking before the installation Accessories Net dimension Name of the parts Diagram of DMS 2.5 and DVM CHILLER & FCU Diagram of BMS and DVM CHILLER & FCU INSTALLATION FCU KIT installation FCU KIT installation Wiring work...
  • Page 2: Preparation

    PREPARATION Safety precautions These safety precautions are for owner’s safety and preventions of property damage. Therefore, please read this manual thoroughly before installing or using your product. (Please refer to appropriate installation for any optional product installation.) WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.
  • Page 3 Safety precautions Do not install this product near a heater, inflammable material. Do not install this product in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this product in a location where gas may leak. y Potential risk of electric shock or fire.
  • Page 4 For power supply WARNING Do not pull or excessively bend the power cord. Do not twist or tie the power cord. y Potential risk of electric shock or fire. For operation WARNING If the product generates a strange noise, a burning smell or smoke, disconnect the power supply immediately and contact a service center.
  • Page 5 Do not hit or apply excessive force of any kind to the product. Do not use this product for other purposes. y This product is designed to be used only for DVM CHILLER. Do not press the buttons with any sharp objects.
  • Page 6: Checking Before The Installation

    CHECKING BEFORE THE INSTALLATION Checking before the installation Accessories Pipe temperature sensor Name Aluminum tape Rubber tape M4x16 screws [10 m(32.8 ft)] Quantity Image Wired Remote Controller Name Insulator Cable tie (Purchased separately) Quantity Image Net dimension [Unit : mm(inch)] 270(10.62) 200(7.87) 87(3.42)
  • Page 7: Name Of The Parts

    Checking before the installation Name of the parts Upper cover FCU KIT PBA Lower base Spare holes OPTION FCU KIT_IBIM_06104A-00_EN.indd 8 2016-03-16 오후 2:44:38...
  • Page 8: Diagram Of Dms 2.5 And Dvm Chiller & Fcu

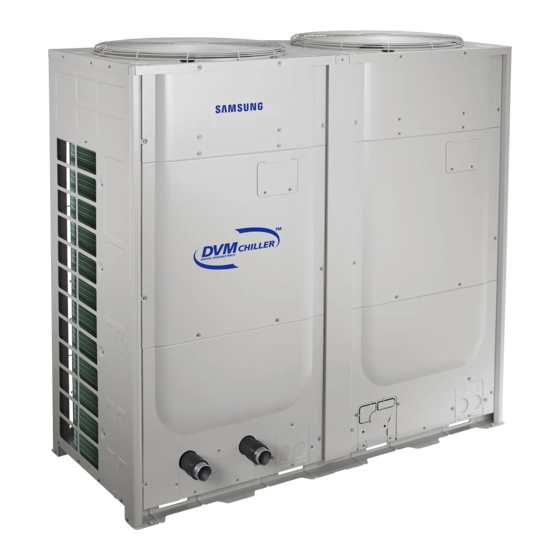

    (MCM-A00N) DVM CHILLER y FCU KIT and FCU interface module is for integrated control of FCU with DVM CHILLER by DMS 2.5. y Maximum number of FCU interface modules that can be installed to a DMS2.5, and maximum number of FCU KITs that can be installed to a FCU interface module is both 16.
  • Page 9: Diagram Of Bms And Dvm Chiller & Fcu

    – FCU interface module -FCU KIT :max 1000 m(3280.8 ft) CAUTION • Install FCU that has terminal block to fix power cable by screw. Do not connect power cable by cutting. Diagram of BMS and DVM CHILLER & FCU BMS (for Buildings) BACnet Gateway (MIM-B17BN) / LonWorks Gatway (MIM-B18BN)
  • Page 10 FCU KIT and FCU interface module is for integrated control of FCU with DVM CHILLER by DMS 2.5. y Maximum number of FCU interface modules that can be installed to a BACnet/LonWorks, and maximum number of FCU KITs that can be installed to a FCU interface module is both 16.
  • Page 11: Installation

    Fan power Water IN sensor Water IN sensor DVM CHILLER y Indoor temperature sensor must be installed to control FCU. Use either wired remote controller built-in sensor or external room sensor (MWR-TA). – Option setting value should be changed in service setting mode of wired remote controller after installing the remote controller.
  • Page 12 Maximum number of FCU KITs that can be installed and controlled simultaneously by a wired remote controller is 16. Integrated control of FCU y Install FCUs and FCU KIT by multiple FCUs to 1 FCU KIT. FCU interface module DVM CHILLER AC Water Valve 0.5 A Wired remote controller Water IN sensor...
  • Page 13 FCU KIT installation FCU KIT installation Install FCU KIT where the weight load of the product can be supported. FCU interface module fixing holes <Horizontal installation> 200(7.87) 200(7.87) FCU KIT fixing holes (4 holes) <Vertical installation> 1 Unscrew 2 screws of FCU KIT cover, and separate cover. 2 Fix the FCU KIT on the wall by 4 screws.
  • Page 14: Wiring Work

    Wiring work Connecting a power cable and communication cable y Make sure to cut-off the power before connecting the power cable. y The power cable and communication cable of FCU KIT should be within 10% of the maximum allowable length of the cable or voltage drop. y Install circuit breaker (ELCB) concerning total power consumption of connected FCU KIT.
  • Page 15 FCU KIT installation CAUTION • The circuit diagram on the cables as shown above represents only outline and it does not describe detailed instruction on the actual installation work. • The communication cable should not branch due to possible communication error. Wired remote controller FCU KIT F1, F2...
  • Page 16 Selecting solderless ring terminal 1 Select the solderless ring terminal depending on the nominal dimension of the power cable. 2 Cover and insulate the solderless ring terminal and connection part of the power cable. Soldering Nominal Nominal dimensions dimensions Basic Basic Basic Basic...
  • Page 17 FCU KIT installation FCU KIT power cable specification This specification is when installing a FCU KIT. Europe Power supply Power cable Ground wire Communication cable ELCB Min. 2.5 mm Min. 2.5 mm Min. 0.75 mm AC 220 - 240 V~ 50 Hz, 1 Ph 15 A (0.0039 inch (0.0039 inch...
  • Page 18: Functions Of Fcu Kit

    Functions of FCU KIT y Fan control (Auto, High, Mid, Low), valve control, setting indoor temperature, sensing inlet water pipe temperature is possible by FCU KIT. (Room temperature sensor must be installed.) y For direct power supply from FCU KIT, fan motor must work at AC 208 - 230 V~ 60 Hz, AC 220 - 240 V~ 50 Hz and 1 A or low.
  • Page 19 FCU KIT installation Spare holes (Use for DC cables) AC, water valve DC Communication cable (F1, F2, R1, R2) AC, Power AC, FAN power power output Room sensor (optional), Water sensor input cable output cable cable Wired remote controller connection y Power cable: Conduit and Conduit fitting (1/2") work by installer y Water valve: Conduit and Conduit fitting (1/2") after separating screw by installer when necessary...
  • Page 20: Diagram Of Ass'y Control

    Diagram of ASS'Y control 1 Water valve contact output status for operation mode AC power output Pipe type Operation power output Remarks (Max. 0.5 A) Cooling/ Thermo ON Normal Close Type 2-pipe Heating Thermo OFF Normal Open Type Thermo ON Normal Close Type Cooling Thermo OFF...
  • Page 21 FCU KIT installation 2 Sensor connection by FCU type y Install water pipe sensor at inlet within 1 m from FCU. y Connect the sensor after checking the installing location. (Refer to page 22 for sensor connection.) Water-IN 1 sensor Room sensor (optional) Water-IN 2 sensor...
  • Page 22 Pipe type Location of PBA sensor Location of pipe 2-pipe Water-IN 1 Water inlet pipe Water-IN 1 Chilled water inlet pipe 4-pipe Water-IN 2 Heating water inlet pipe y When using 4-pipe system, set SEG14 of 05 series installation option as 1. y In case of opposite installation of water pipe 1, 2 sensor in 4 pipe system, error(pipe block) will be occurred in 30minutes of operation(E992 or E993).
  • Page 23 FCU KIT installation 4 External contact connection y In case of connecting external contact, set SEG14 of installation option according to the table. External contact Installation External contact status option Open Close SEG14 Disuse Disuse FCU OFF, remote control possible ON, remote control possible FCU OFF, remote control impossible Remain OFF, remote control possible...
  • Page 24 5 Option room sensor (Model: MRW-TA) y In case of installing room sensor as option, set installation option according to the table. (05series, SEG24 = 1) Room sensor (optional) CAUTION y Use either wired remote controller with built-in room sensor or external room sensor (MWR-TA) must be installed.
  • Page 25: Installing Water Temperature Sensor

    FCU KIT installation Installing water temperature sensor 1 Check the sensor and sensor holder. NOTE Water temp. sensor Pipe Location of Diameter Classification Location of pipe type PBA sensor of sensor Water inlet Cable tie Insulator 2-pipe Water-IN 1 pipe Pipe Chilled water Water-IN 1...
  • Page 26 4 Cover the sensor by rubber tape. Rubber tape Sensor 5 Fix the sensor by cable tie. Cable tie 6 Attach insulator around sensor attached area. Insulator OPTION FCU KIT_IBIM_06104A-00_EN.indd 27 2016-03-16 오후 2:44:42...
  • Page 27: Setting

    SETTING Setting address of FCU KIT and installation option Procedure of option setting y Setting address of FCU KIT and installation option is set by remote controller option. It is also possible by wired remote controller and S-NET pro2. y Remote controller receiver of wireless remote controller is included in FCU KIT PBA. Entering mode for Option setting mode option setting...
  • Page 28: Setting An Option

    Step 2. Procedure of option setting After entering the option setting stage, select the option as shown below. CAUTION • 24 digits are available to be input for the option setting. • SEG1, SEG7, SEG13, and SEG19 are page display option so they do not need to be set. •...
  • Page 29 Setting address of FCU KIT and installation option Status Setting an option 3 Setting SEG4, SEG5 option Press [Fan ∨ ] button to enter SEG4 value. Press [Fan ∧ ] button to enter SEG5 value. Each time you press the button, [SEG image] will be SEG4 SEG5 selected in rotation.
  • Page 30 Status Setting an option 9 Setting SEG11, SEG12 option Press [Fan ∨ ] button to enter SEG11 value. Press [Fan ∧ ] button to enter SEG12 value. Each time you press the button, [SEG image] will be SEG11 SEG12 selected in rotation. 10 Setting Auto mode Press [Mode] button to change to Auto mode in the Off status.
  • Page 31 Setting address of FCU KIT and installation option Status Setting an option 15 Setting SEG18, SEG20 option Press [Fan ∨ ] button to enter SEG18 value. Press [Fan ∧ ] button to enter SEG20 value. Each time you press the button, [SEG image] will be SEG18 SEG20 selected in rotation.
  • Page 32 Step 3. Procedure of option setting After option setting is complete, press the [Mode] button to check whether the setting value is correct or not. → → → → → → → → Step 4. Inputting an option Press [Power] button twice consecutively to remote controller receiver to finish the setting. Try more than two times to make sure that option is set.
  • Page 33: Setting Address (Main/Rmc) Of Fcu Kit

    Setting address of FCU KIT and installation option Setting address (MAIN/RMC) of FCU KIT 1 Check if power is supplied to FCU KIT. y When the power is not supplied to FCU KIT, there should be additional power supply to 2 Remote controller receiver of wireless remote controller is included in FCU KIT PBA.
  • Page 34: Setting Fcu Kit Installation Option

    CAUTION • Main address (SEG5 ~ SEG6) can be set in range of 0 ~ 47. • When using automatic address setting, FCU interface module automatically assigns FCU KIT address between 00 ~ 15. • If you set the SEG 3 as 0, the FCU KIT will maintain the existing main address even if you input the option value of SEG5 ~ SEG6.
  • Page 35 Setting address of FCU KIT and installation option 02 series installation option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 Fan control when Central control Thermo Off SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 External control External control output SEG19 SEG20...
  • Page 36 Option No. : 02XXXX-1XXXXX-2XXXXX-3XXXXX Option SEG1 SEG2 SEG3 SEG4(*1) SEG5 SEG6 Description Page Mode Fan control when Thermo Off Use of central control Remote controller display Detail Fan stop Minimal fan Minimal fan Display Detail Display Detail Display Detail Display Display Detail Display Detail...
  • Page 37 Setting address of FCU KIT and installation option 05 series installation option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 (When setting SEG3) (When setting SEG3) (When setting SEG3) Use Auto Change Standard for mode Standard heating Standard cooling Over for 4-pipe only change Heating →...
  • Page 38 Option No. : 05XXXX-1XXXXX-2XXXXX-3XXXXX Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 (When setting SEG3) Standard Use Auto Change Over for (When setting SEG3) Standard (When setting SEG3) Standard Description Page Mode for mode change Heating → 4-pipe only heating temp. offset cooling temp.
  • Page 39 Setting address of FCU KIT and installation option Option SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 FCU KIT pipe installation Valve open control when FCU cool air prevention Description Page structure Thermo Off compensation temperature Remote controller display Display Detail Display Detail Display Detail...
  • Page 40 y Warm air prevention in cooling – Room < Water-IN temp. (°C) - 1 °C: Fan Off – Room > Water-IN temp. (°C): Fan On • In case of using external temperature sensor or minimal fan operation function, external temperature sensor or wired remote controller should be connected. (Internal temperature sensor option of wired remote controller should be set "Use"...
  • Page 41: Changing A Particular Option

    Setting address of FCU KIT and installation option Changing a particular option You can change each digit of set option. Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 Tens digit of option SEG to Ones digit of option SEG to Description Page Mode Option mode to change...
  • Page 42: Others

    OTHERS Troubleshooting Error code Operation and error status can be checked by LED of FCU KIT. Error code R-LED Y/G-LED Error Solutions EEPROM error Change EEPROM Option input error Reset option Check communication Communication error status between FCU KIT and Communication error (between interface modules interface module or wired...
  • Page 43: Inspection And Test Operation

    Inspection and test operation Checking FCU KIT installation y Check if FCU KIT is installed properly. – Check if cables of FCU KIT are properly connected. – Check if FCU KIT is installed vertically or horizontally. – Install FCU KIT avoiding condensation area and water pipe line. –...
  • Page 44 • This function is to prevent DVM CHILLER and FCU (KIT) from operating in different modes. – Ex.) The situation that cool air comes out since DVM CHILLER is operating in Cool mode and FCU is operating in Heat mode in 2-pipe system –...
  • Page 45: Function Of Wired Remote Controller

    Function of wired remote controller Display y The following function of FCU KIT can only be used when using wired remote controller. – Operation On/Off – Auto/Cool/Fan/Heat mode – Setting temperature (Temperature range: Cool 18 ~ 30 °C (65 ~ 86 °F), Heat 16 ~ 30 °C (61 ~ 86 °F)) –...
