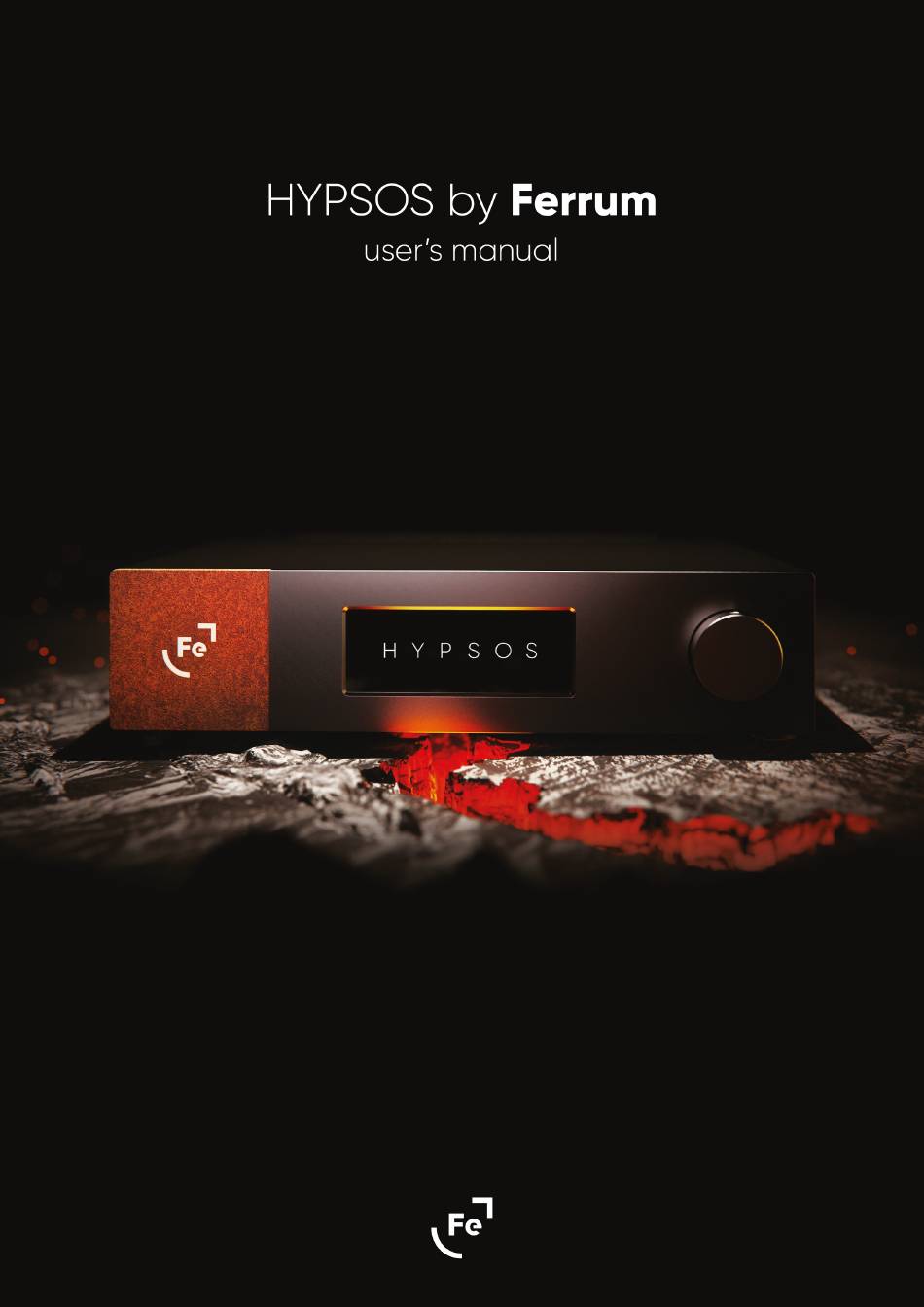

- Page 1 HYPSOS by Ferrum user’s manual...
- Page 2 HYPSOS by Ferrum user’s manual HYPSOS by Ferrum user’s manual...
- Page 3 HYPSOS can power many brands with a simple revolution of a knob. This software based operation is unique to HYPSOS and an industry first! Apart from the ease of operation HYPSOS makes use of a smart combination of existing power sensing techniques, which again sets it apart from the pack. With the HYPSOS power supply your audio system will be taken to the next level! Owner's Manual Ver.
-
Page 4: Table Of Contents
Important Safety Info Box Content Device Features Getting Started Front Panel Overwiev Back Panel Overwiev Main Screen Connecting the HYPSOS Turning on your HYPSOS for the first time Menu Navigation Menu Structure Firmware Update Fuse Replacement Technical Spec Warranty Contact Ferrum... -
Page 5: Important Safety Info
Keep the HYPSOS away from radiators, kettles, heat registers, stoves, or any other appliance that produces heat. Connect the HYPSOS to the power outlet only with an earthed IEC power supply cable or an exact equivalent in a mains socket with protected earthing connection. -
Page 6: Box Content
- Regulated output voltage level in 5-30V range, current up to 6A, power up to 80W - Hybrid Power System (HyPSos) Design - linear/switching hybrid design to get the advantages from both - Volume adjustment (Sweet Spot Tuning) - Possibility to fine tune the output voltage for the best sound. -
Page 7: Getting Started
4. GETTING STARTED 4.1. Front Panel Overview Ferrum logo - brightness and logo can be changed in the menu. OLED displays. Encoder knob - this encoder is both a knob and a button. Works as an on/o switch in standby mode and allows you to navigate in the Hypsos menu. -
Page 8: Back Panel Overwiev
DC cable, pull the metal ring on the plug in the opposite direction to the device and then pull the cable out of the socket. Trigger I/O socket. Micro-USB port. Main power switch. Fuse. Mains IEC connector. Place mains power cord at this connector. Figure 2. HYPSOS by Ferrum HYPSOS by Ferrum user’s man user’s manual... -
Page 9: Main Screen
Measured voltage at the DC HYPSOS output. Current power consumption of the device powered by the HYPSOS. Currently measured output current on the DC HYPSOS output. Voltage adjustment (Sweet Spot Tuning) - this feature can also be set up in the menu. -
Page 10: Connecting The Hypsos
Figure 4. 4.5. Turning on your HYPSOS for the first time Make sure that all cables are correctly connected to the HYPSOS and powered device (Fig. 4). Then use the main switch to start the HYPSOS (Fig.2D) . The first time you start the HYPSOS, it needs to be configured to properly power other devices. - Page 11 If you see your device in the list, select it and confirm by pressing the dial. HYPSOS will show you a summary of the preset and ask you to approve the settings. It is a good idea to check if the voltage and polarity that HYPSOS proposes are correct for the device you want to power.
-
Page 12: Menu
Once the settings have been approved, a timer will appear on the screen counting down the time to apply the voltage to the HYPSOS output - you still have 9 seconds to change the settings if necessary. To stop the count- down and return to the settings, press the knob. -
Page 13: Menu Structure
This function can also be set from the home screen (check Fig. 3E). Allows you to fine-tune the output voltage to get the best sound on a device powered by HYPSOS. The range in which the voltage can be adjusted will be di erent for di erent devices. Some allow you to use a larger range. - Page 14 2. Visuals 2.1. Fe Brightness Allows you to change the light intensity of the Ferrum logo when the HYPSOS is turned on. There are 10 bright- ness levels to choose from or you can turn o the backlit completely. 2.2. Standby Fe Brightness Allows you to change the light intensity of the Ferrum logo when the HYPSOS is in standby.
- Page 15 3s, 5s, 10s, 15s, 30s, 45s, 60s, 90s. The defoult is 60s. 3. Trigger 3.1. Input When selected, the Trigger input wakes up HYPSOS. This option might be selected when you want to turn on your system by external device like amplifier. 3.2. Output When this option is selected, the Trigger output wakes up the external device.
-
Page 16: Firmware Update
Connect HYPSOS via USB cable to your computer. Press the knob and when holding turn on HYPSOS using the main ON/OFF switch. Open Ferrum Firmware Updater app and open firmware file for HYPSOS - firmware file is available on our website here: www.ferrum.audio/support Click on the “Flash device”... -
Page 17: Fuse Replacement
Check if the thin wire inside the fuse is intact. If it’s not intact, use a spare fuse for replacement. Spare fuse is hidden inside the fuse enclosure (Fig. 12). DO NOT OPEN ! LINE VOLTAGE INSIDE ! 110-240V 50/60Hz fuse enclosure spare fuse fuse Figure 12. HYPSOS by Ferrum user’s manual... -
Page 18: Technical Spec
Please pack the product very carefully, preferable in the original packing, to be sure no damage can be done during shipment. Ferrum is not responsible for accessories, items left in the packaging and the box in which the device has arrived for service. Ferrum reserves the right to use a replacement box if necessary. -
Page 19: Contact Ferrum
• EN55103-1 : Electromagnetic Interference (Emission) • EN55103-2 : Electromagnetic Susceptibility (Immunity) This product is intended for use in the following Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio). HYPSOS by Ferrum user’s manual... -
Page 20: Information On Disposal
To properly dispose harmful substances and recycle the product, the user is obliged to return it at the point of collection of electrical and electronic equipment waste. For more information please contact your local authorities, waste disposal units or retailer. HYPSOS by Ferrum user’s manual...
