HYPSOS
&
HYPSOS Dual Output
by Ferrum
user's manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HYPSOS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ferrum HYPSOS

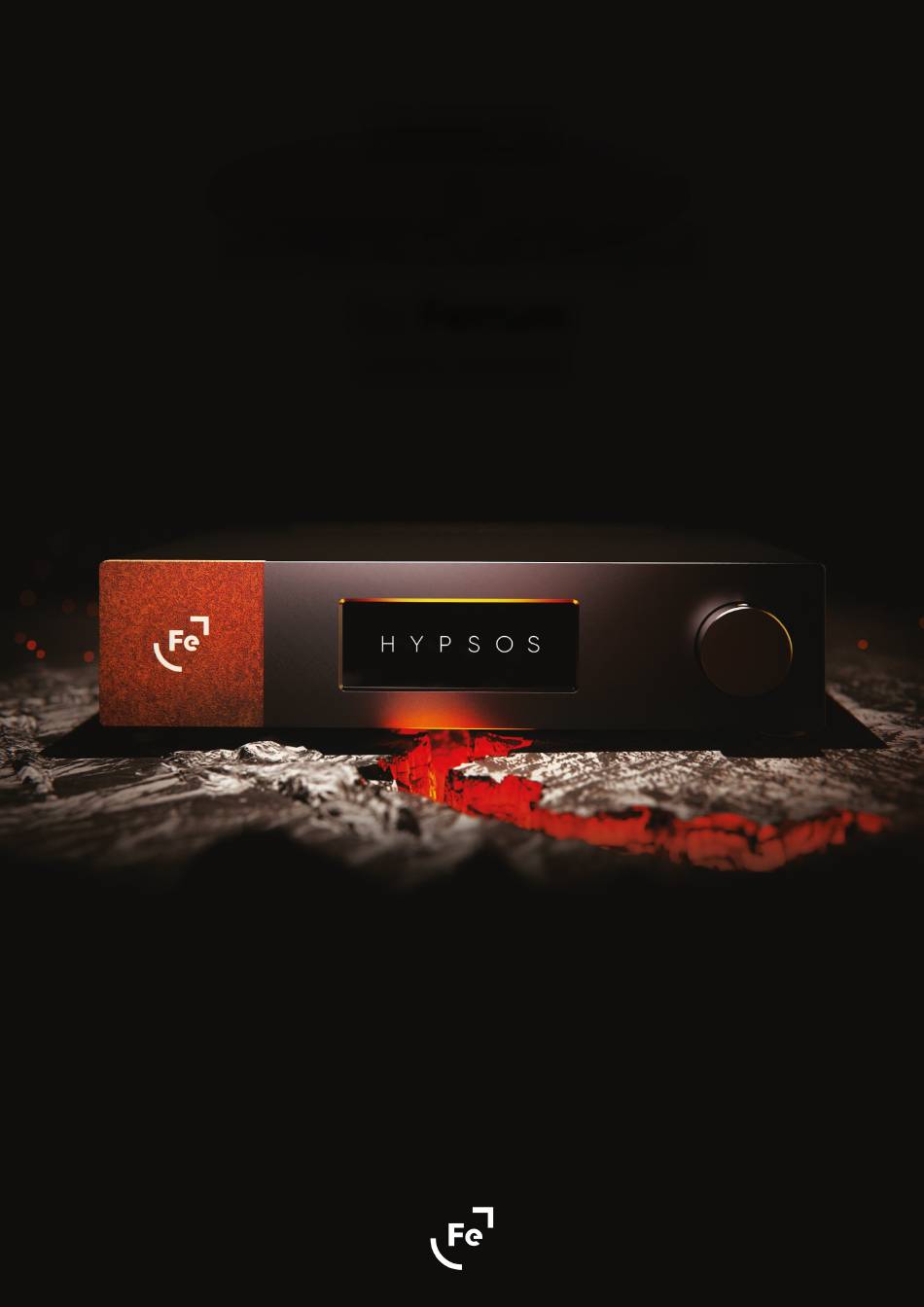

  • Page 1 HYPSOS & HYPSOS Dual Output by Ferrum user’s manual...
  • Page 2 HYPSOS & HYPSOS Dual Output by Ferrum user’s manual user’s manual HYPSOS by Ferrum...
  • Page 3 6�3 Manual Configuration � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11 6�4 MAIN and AUX DC Output Differences (for HYPSOS Dual Output) � � � � � � � � � � � � � � � � � � � � � � � � 12 7.
  • Page 4 HYPSOS is a hybrid power system and combines the best features of both linear and switching power supplies� HYPSOS can power many brands with a simple revolution of a knob� This software based operation is unique to HYPSOS and an industry first! Apart from the ease of operation HYPSOS makes use of a smart combination of existing power sensing techniques, which again sets it apart from the pack�...
  • Page 5 Keep the HYPSOS away from radiators, kettles, heat registers, stoves, or any other appliance that produces heat� Connect the HYPSOS to the power outlet only with an earthed IEC power supply cable or an exact equivalent in a mains socket with protected earthing connection�...
  • Page 6 — Regulated output voltage level in 5-30 V range, current up to 6 A, power up to 80 W — Hybrid Power System (HYPSOS) design - linear/switching hybrid design to get the advantages from both techniques - low ripple and noise as well as fast transient response and high efficiency —...
  • Page 7 C� Encoder knob - this encoder is both a knob and a button� Works as an on/off switch in standby mode and allows you to navigate in the HYPSOS menu� To put HYPSOS in standby mode press the knob for couple of seconds�...
  • Page 8 B� MAIN and AUX DC outputs - available only in HYPSOS Dual Output C� trigger I/O socket D�...
  • Page 9 A� nominal voltage value set during the process of selecting a device from the list or during manual configuration B� measured voltage at the DC HYPSOS output - small deviations in measurement up to 0�2 V are possible C� current power consumption of the device powered by the HYPSOS D�...
  • Page 10 5� CONNECTING THE HYPSOS Note: Please connect all signal cables before connecting DC cable or switching on the HYPSOS� SWITCH Figure 5 SWITCH Figure 6 user’s manual HYPSOS by Ferrum...
  • Page 11 Figure 7 If you see your device in the list, select it and confirm by pressing the dial� HYPSOS will show you a summary of the preset and ask you to approve the settings� It is a good idea to check if the voltage and polarity that HYPSOS proposes are correct for the device you want to power�...
  • Page 12 Note: All presets included in HYPSOS are suggested settings only� Before accepting a setting from a preset, the user must verify that it is correct for the device they wish to power with HYPSOS� If there is a parameter mismatch between a preset and the device you are powering, do not use the preset and report it to us�...
  • Page 13 The HYPSOS will now show a summary of the settings and ask you to confirm them� Once the settings have been approved, a timer will appear on the screen counting down the time to apply the voltage to the HYPSOS output - you still have 9 seconds to change the settings if necessary�...
  • Page 14 Please read user manual Remote Pairing for more information. Factory Reset Select Figure 11 To go back to the previous screen select “Back”� Back Fe Brightness Stdby Fe Bright. Figure 12 HYPSOS by Ferrum user’s manual...
  • Page 15 4E)� Allows you to fine-tune the output voltage to get the best sound on a device powered by HYPSOS� The range in which the voltage can be adjusted will be different for different devices� Some allow you to use a larger range� The standard "Voltage Adjustment" range is 95% to 105% of nominal voltage for safety reasons�...
  • Page 16 Note: Ferrum will not be held liable for damage to the device being powered when the voltage level you set will damage it� 7�2�1�4 Power in Standby ON/OFF When turned on, the HYPSOS will continue to provide DC, even if it is in Standby mode� To return to the previous screen press the knob� 7�2�1�5� 4-Terminal Sensing ON/OFF Possibility to turn on or off 4TSD (4-Terminal Sensing Design) - this technology results in more clarity and resolution, where without the sound will be more weighted�...
  • Page 17 7�2�2 VISUALS 7�2�2�1 Fe Brightness Allows you to change the light intensity of the Ferrum logo when the HYPSOS is turned on� There are 10 brightness levels to choose from or you can turn off the backlit completely� 7�2�2�2 Standby Fe Brightness Allows you to change the light intensity of the Ferrum logo when the HYPSOS is in standby�...
  • Page 18 Attention: Resetting to factory settings can’t be undone. Figure 18 The cross mark will take you back to the menu� Select the tick mark to start the HYPSOS reset process� user’s manual HYPSOS by Ferrum...
  • Page 19 Note: For Windows it is also required to install the USB driver� For macOS, there is no need to install the driver� You can download the USB driver from our website: https://ferrum�audio/support/ The Ferrum Control app is available in the Microsoft Store and in the App Store - a direct link is also available on our site: https://ferrum�audio/support/ 1�...
  • Page 20 Note: Make sure the micro USB cable you are using supports data transmission� 3� In the menu of HYPSOS find the “Information” tab and select it by pushing the knob� Then find the “Firmware” tab and push the knob again�...
  • Page 21 Figure 24 8� To return from "USB update mode" to normal HYPSOS operation click on the button� HYPSOS will reset and turn on with the last memorized settings� 9� FUSE REPLACEMENT Fuse is located in the neighborhood of AC mains socket (Fig�...
  • Page 22 Please pack the product very carefully, preferable in the original packing, to be sure no damage can be done during shipment� Ferrum is not responsible for accessories, items left in the packaging and the box in which the device has arrived for service� Ferrum reserves the right to use a replacement box if necessary�...
  • Page 23 Additionally evaluated to: EN 55032:2015/A11:2020, EN 55032:2015/A1:2020, EN 55032:2015, EN 55035:2017 and 47CFR PART 15B, ICES-003 (ISSUE 7) This product is intended for use in the following Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E4 (controlled EMC environment, ex� TV studio)� user’s manual HYPSOS by Ferrum...
  • Page 24 To properly dispose harmful substances and recycle the product, the user is obliged to return it at the point of collection of electrical and electronic equipment waste� For more information please contact your local authorities, waste disposal units or retailer� user’s manual HYPSOS by Ferrum...

This manual is also suitable for:

Hypsos dual output
