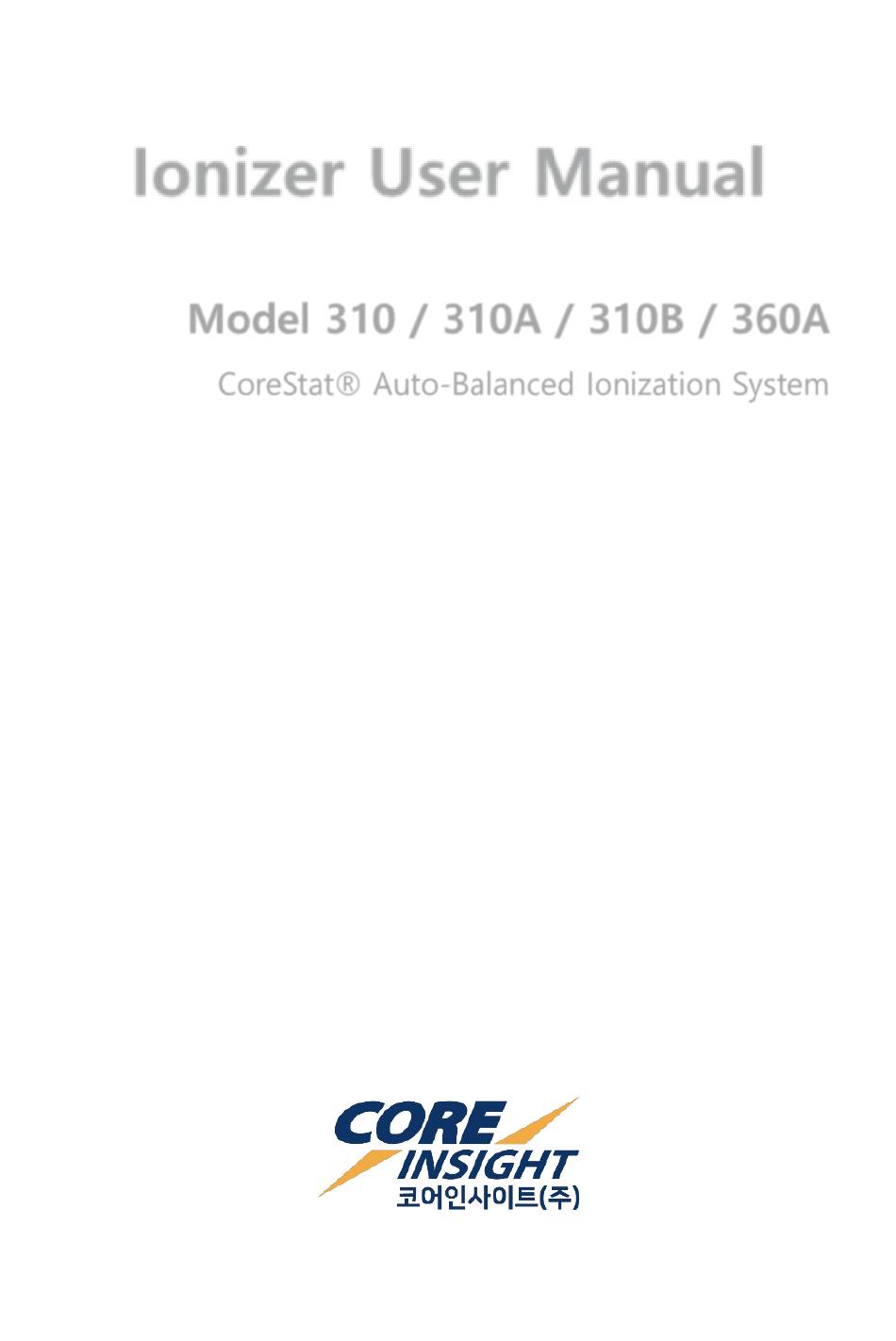

- Page 1 Ionizer User Manual Model 310 / 310A / 310B / 360A CoreStat® Auto-Balanced Ionization System...
-
Page 2: Table Of Contents
6. Drawings 7. Setup and Operation Contents in the box Descriptions for Model 300 Series Installation Turning on the ionizer Alarm 8. Maintenance 9. Warranty and Services Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 3: Core Insight Introduction
Assessment, ESD Control Program, Product Qualification Testing per ANSI/ESD Standards, Device Testing and System Level ESD Testing per IEC 61000-4-2. Core Insight is major ESD distribution supplier in the field of semiconductor, flat panel display, automotive and electronic manufacturing working environment. Core founded in 2003... -
Page 4: Ionization Technology
It just need periodic cleaning emitter points for maintain decay performance. Core Insight also offer traditional AC ionization technology for industrial applications such as roll to roll, winding & unwinding of films for static related contamination issues. -
Page 5: Pulsed Dc Ionization
Core Insight offer several types of Charge Plate Monitor (CPM) or Test Kits for ionizer performance testing of qualification and compliance verification. Monroe Electronics’ Model 288 is the latest version of CPM and highly accurate measurement equipment based on the original voltage following technology. - Page 6 For more detail information about ionization and its test equipment, please feel free contact sales representative sales@coreinsight.co.kr or local contacts. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.
-
Page 7: Application Guide
Association. Lowering device charge level and increase resistance of contact materials are the key strategical elements to prevent ESD damage. As per ANSI/ESD S20.20-2014 latest version described, maximum allowing Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. - Page 8 CDM/CBE ESD failures in production or field return from customer side. Core Insight provides the best solution for static related issues with several types of ionization products and systems such as steady-state DC, AC, pulsed AC, high frequency AC and pulsed DC ionizations.
-
Page 9: Cautions And Personal Safety
FMS terminal or failure to heed maximum voltage limits will not be covered by the warranty. There are no user serviceable parts inside this blower. Any Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 10: Personal Safety
ESD control method and remove power connection from AC line source. Be sure that no wrist strap requires when service access to high voltage operational system. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 11: General Specifications
Relative Humidity: 35 ~ 75% Dimensions 105 W x 120 H x 64 D mm for Model 360A (with bracket) 152 W x 155 H x 70 D mm for Model 310, Model 310A and Model 310B Weight 335 gram for Model 360A... -
Page 12: Drawings
6. Drawings Model 360A Dimensions Model 310A/Model 310B Dimensions Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 13: Setup And Operation
7. Setup and Operation Contents in the box Model 360A Model 310A/B 24V DC Adapter Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 14: Descriptions For Model 300 Series
Alarm LED: RED, Indicate when failure mode Power Switch Bracket Adjustable Knob DC Adapter Receptacle Alarm Output FMS Terminal DC Input Terminal Operating LED: Green 10) Alarm LED: RED, Indicate when failure mode Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 15: Installation
LED and activate audio alarm too. An alarm indicates that the ionizer’s internal high voltage power circuitry that drives the emitter points Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. -
Page 16: Maintenance
Cleaning inside of Enclosures Moisten a cloth with the IPA solution. Wipe off any dirt that may have accumulated inside of the unit. Cleaning the Emitter Points Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification. - Page 17 If using a swab, gently wipe the tips of the emitter points until the dirt is removed. After cleaning make sure that the emitter point need to dry out about 20 minute. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.
-
Page 18: Warranty And Services
Warranty and Service Core Insight, Inc. provides a limited warranty for all ionizers. New products manufactured or sold by Core are guaranteed to be free from defects in material or workmanship for a period of defined schedules from the date of initial shipment. Core’s liability under its...
