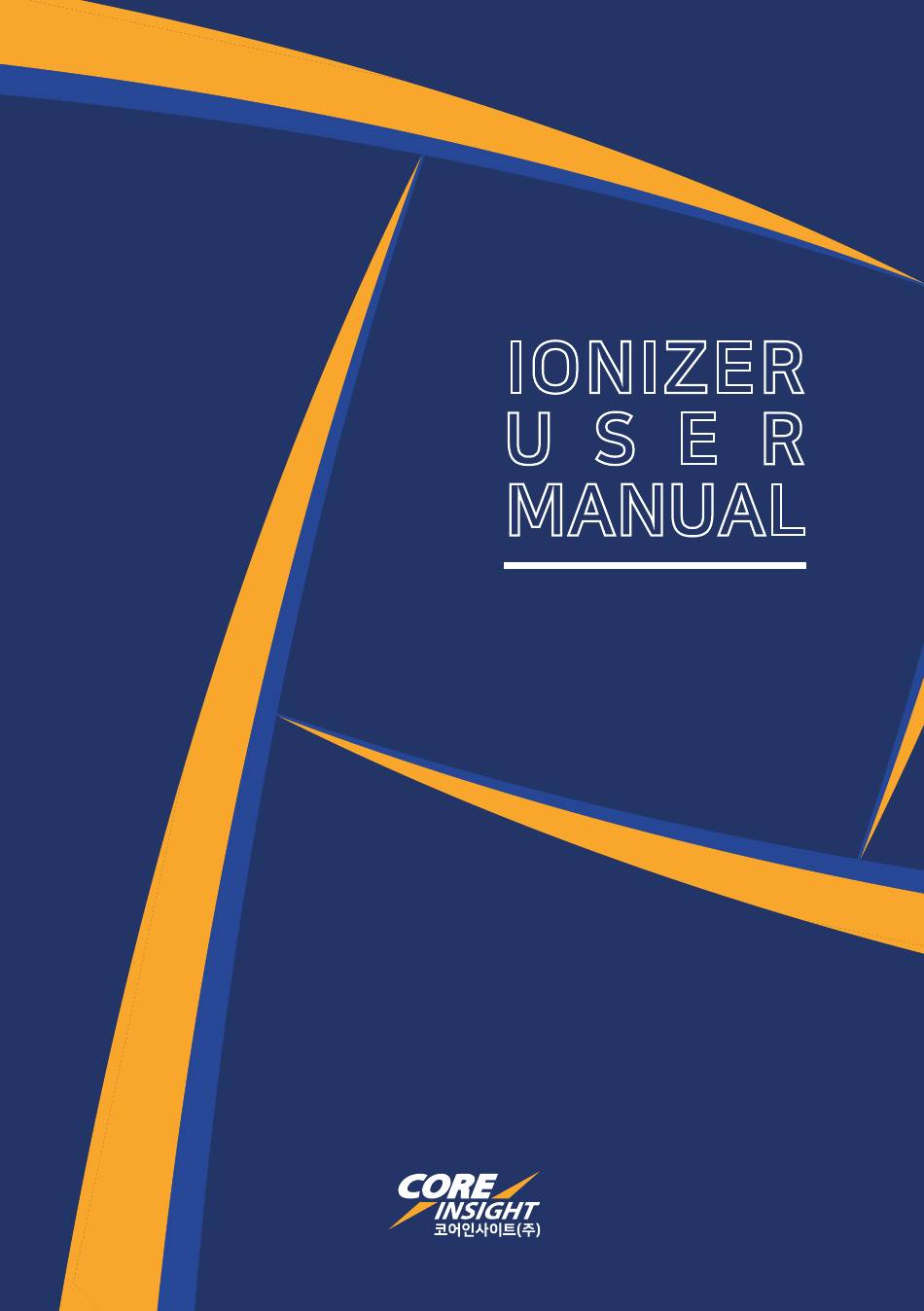

  • Page 1 IONIZER U S E R MANUAL Model 2400 ® AirStat Digital Ceiling Emitter Ionizer Version 1.1...
  • Page 3 IONIZER U S E R MANUAL Model 2400 ® AirStat Digital Ceiling Emitter Ionizer Version 1.1...

  • Page 4: Table Of Contents

    Contents 1. Introduction 2. Ionization and Application A. Ionization Theory B. Cleanroom Contamination Application C. ESD Control Application D. AC Ionization and Industrial Application 3. Application Guide A. Basic ESD Control B. Ionization for CDM/CBE Control 4. Cautions and Personal Safety A.

  • Page 5: Introduction

    Assessment, ESD Control Program Development and Product Qualification Testing per ANSI/ESD Standards. Core Insight, Inc. is a leading company for ESD and contamination control in the fields of semiconductors, flat panel displays, automotive, and general electronic manufacturing industries. Core Insight, Inc. was founded in 2003 and business partnership with ProStat Corporation, ON Filter, Monroe Electronics, Electro-Tech Systems, and Dangelmayer Associates etc.

  • Page 6: Ionization And Application

    Ionization and Application A. Ionization Theory Ionization solution has been used many years in electronic industry. Electrical ionization technology is most common design for many applications. Some ionizers designed for ESD application and some of them are contamination control in high technology manufacturing environment.

  • Page 7: Ac Ionization And Industrial Application

    D. AC Ionizations and Application Core Insight, Inc. provides several AC ionization systems. Conventional AC ionizer for industrial applications such as roll to roll or winding & unwinding of paper, film and non-ESD sensitive areas. Bipolar Pulsed AC ionizer is output parameter adjustable technology to meet each application require- ments.

  • Page 8: Application Guide

    ESD sensitive device control and control program per S20.20 based. Core Insight, Inc. provides intrinsic low peak balancing Steady-State DC Ionizers for CDM ESD control with less maintenance. For more detail information about ionizer solution and technical support needed, please feel free to contact our sales representative at sales@coreinsight.co.kr or your local contacts.

  • Page 9: Cautions And Personal Safety

    B. Personal Safety Before performing any maintenance on emitter points, it is highly recommended turn-off the system. Allow few minutes for high voltage power supplies to discharge. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.

  • Page 10: Technical Specification

    Technical Specification Input Voltage 24 VAC Ion Emission Pulsed DC Technology and Stanby Mode Ion Balance User Defined Emitter Point Single Crystal Silicon / Titanium Display 4 Digit LED Display / 2 Color LED Control Output Voltage, On/Off Time Adjustment for each polarity Alarm LED Alarms for Cleaning, Power and Polling LED: Alarm display...

  • Page 11: Drawings

    DC technology and uniform ionization. All output parameters can adjustable through Model 5711R IR Remote controller and communicating with Model 6320, 6340 and 6380 controllers through RS-485 protocol. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.

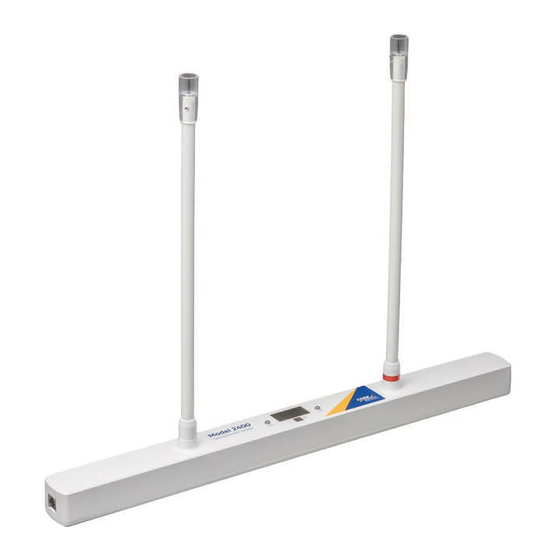

  • Page 12 Setup and Operation B. Description of Model 2400 Ceiling ionizer ① ② ③ ⑤ ④ ① LED: 4 digit display. Setting output parameter values and alarm level. ② IR Receiver: Communicate with Model 5711R remote controller. ③ Positive and Negative LED: Indication for normal operation (Green) and color change to Red for alarm status.
  • Page 13 RJ-11 communication cable (24 AWG) from junction box to ceiling emitter or between ceiling emitters are 5 meters and maximum overall length are 50 meters for 10 units of ceiling emitters. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.
  • Page 14 Setup and Operation Communication cable must be tested and verified during installation at each desired locations. All cables are test for open, short and color matching. From controller to junction with daisy-chained wiring should be all straight connection at junction box terminal. Yeollow Green Black...

  • Page 15: Powering The System

    0.1kV resolution, cleaning alarm settings, power alarm setting and ID address. nEg.V START n xxx(ID) CIn.A HVP.A PHV.A P.On nHV.A P.oFF bur.c n.On I.dEL n.oFF PoS.V Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.
  • Page 16 Setup and Operation To start communicating at each ceiling emitter, press START and ID address on Model 5711R remote controller. Press FUN button for select output parameters. LED will display as below and all parameters can be adjustable by UP/DOWN. Once user changed any parameter, press FUN to store value in memory and make changed value operational.
  • Page 17 ). n.oFF will display. 0.0 sec is factory default set value. Press UP/DOWN or type numeric value up to 10.0 seconds maximum. Press FUN to store this set value. Copyright by CORE INSIGHT, INC. This user manual contents may change without pre-notification.
  • Page 18 Setup and Operation 6) Voltage Adjustment Press FUN and NEXT(6 times ). PoS.V will display. 7.0 kV is factory default set value. Press UP/DOWN or type numeric value up to 12.0 kV seconds maximum. Press FUN to store this set value. Press FUN and NEXT (7 times ).
  • Page 19 ). I.dEL will display. Press UP/DOWN to adjust set from off to on mode. Press FUN to store. 13) Firmware Version Display Press FUN and NEXT (15 times ). VER will display. Copyright by CORE INSIGHT, INC. This use manual contents may change without pre-notification.

  • Page 20: Maintenance

    Turn off the ceiling emitter. Clean the emitter points and areas around the emitter points, moisten a cleanroom-compatible swab or cleaning cloth in the IPA solution, or use cleaning solution from Core Insight. Gently rotate the swab or cleaning cloth around the emitter point. After cleaning allow the emitter points for dry out about 20 minutes.

  • Page 21: Warranty And Services

    In no event shall Core Insight, Inc. be liable for collateral or consequential damages. To obtain service under this warranty, please contact sales representa- tive at sales@coreinsight.co.kr or local contacts.
  • Page 24 ® IO NI ZER US ER M AN U AL M O D E L 2 4 0 0 Ai r S t a t Di gita l Ce il ing E m i t ter I oni ze r Suite 503, 186, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230, KOREA Tel: 82-31-750-9200 / Fax: 82-31-750-9205 / sales@coreinsight.co.kr / www.coreinsight.co.kr...
