LW-846 INSTALLATION GUIDE
I. INSTALLATION

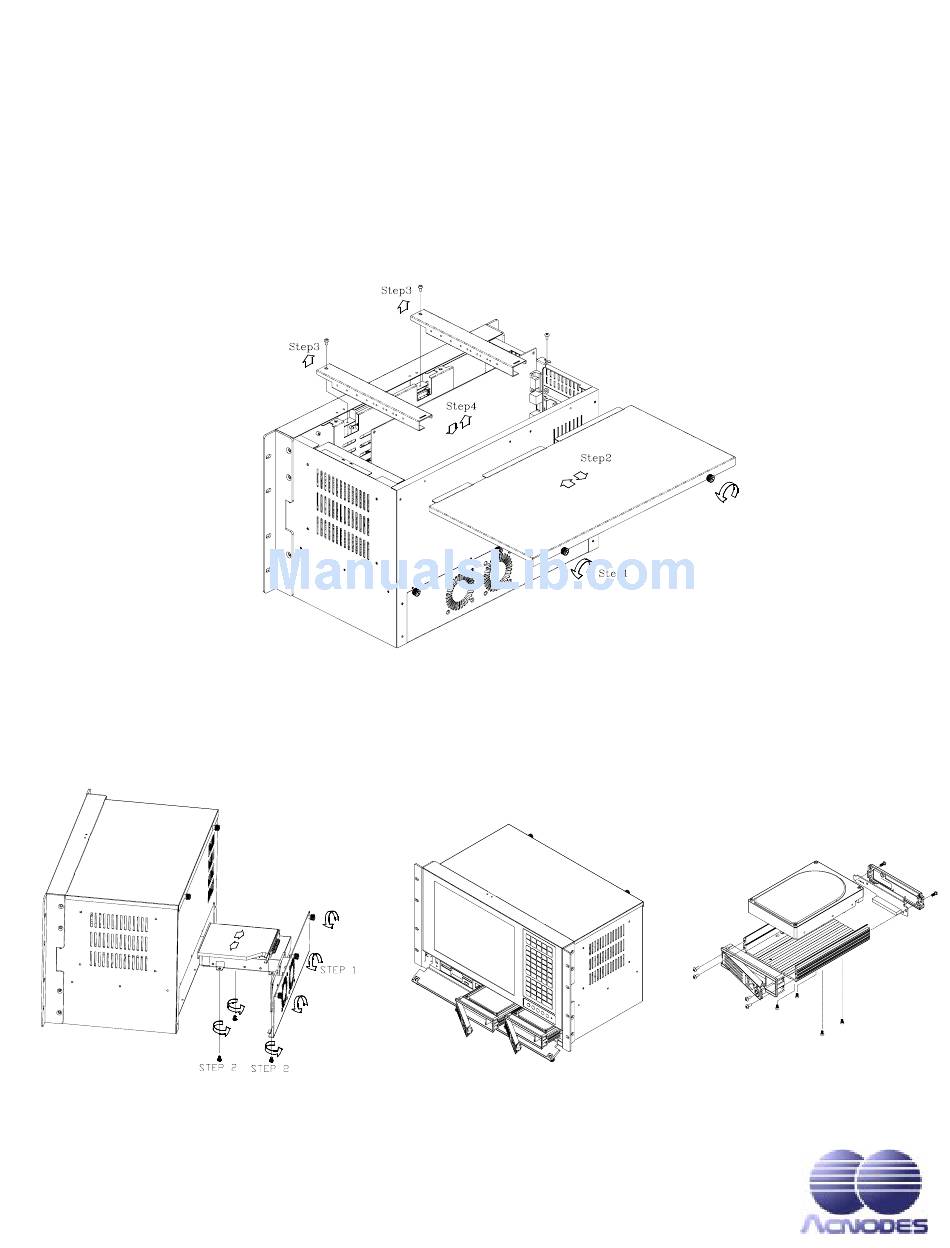

Card and Card Clamp
The card clamp is designed to hold the add-on cards to fix securely into the slots and to prevent them
from vibrating
1. Back cover removed first by releasing the screws as the diagram below shown.
2. Unscrew the bottom side of the card clamp and remove it from the top fix hole from the chassis.
3. Slide the card in and carefully press it into the slot of backplane.
4. Adjust holding clamp to hold the card by screws
DRIVER
LW-846 provides one Slim type CD-ROM, one 3.5" FDD and two removable HD Kits. The below diagram
shows how to install the disk drives.
Slim Type CD-ROM & FDD
ACNODES.COM
INFO@ACNODES.COM
Removable HD Kits
