» Specifications
Chassis
6U height
19" EIA Rack mounting
Construction
Heavy-duty steel
Front Panel
Aluminum made front panel
meets IP64 standard
LCD Panel
Screen size: 104" TFT LCD
Resolution: 800 x 600
Brightness: 230cd/m2
Contrast: 500 : 1
Backlight MTBF: 50,000 hours
Interface: DB-15 VGA
Optional for resistive type touch screen with RS-232 interface
Main System
SBC:
Single Board Computer with built-in VGA/LAN
CPU: Socket 775 Type, Pentium D Processor
Membrane keypad:
63 keys include 20 function keys
Touch-Pad:
PS/2 type touch pad on front panel with water-proof designed
4 x USB ports on front panel
Drive Bays
1 x 3.5" open drive bay
1 x 3.5" hidden driver bay
System Fan
One 12cm ball bearing cooling fan with filter
Card Clamp
Designed with anti-vibration card clamp to keeping system stable
Back plane
Selection 8 slots backplane
(3-ISA, 3-PCI, 1-SBC or 7-PCI, 1-SBC, 1-SBC/PCI)
2095 7 Currier Road Suite #D
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218

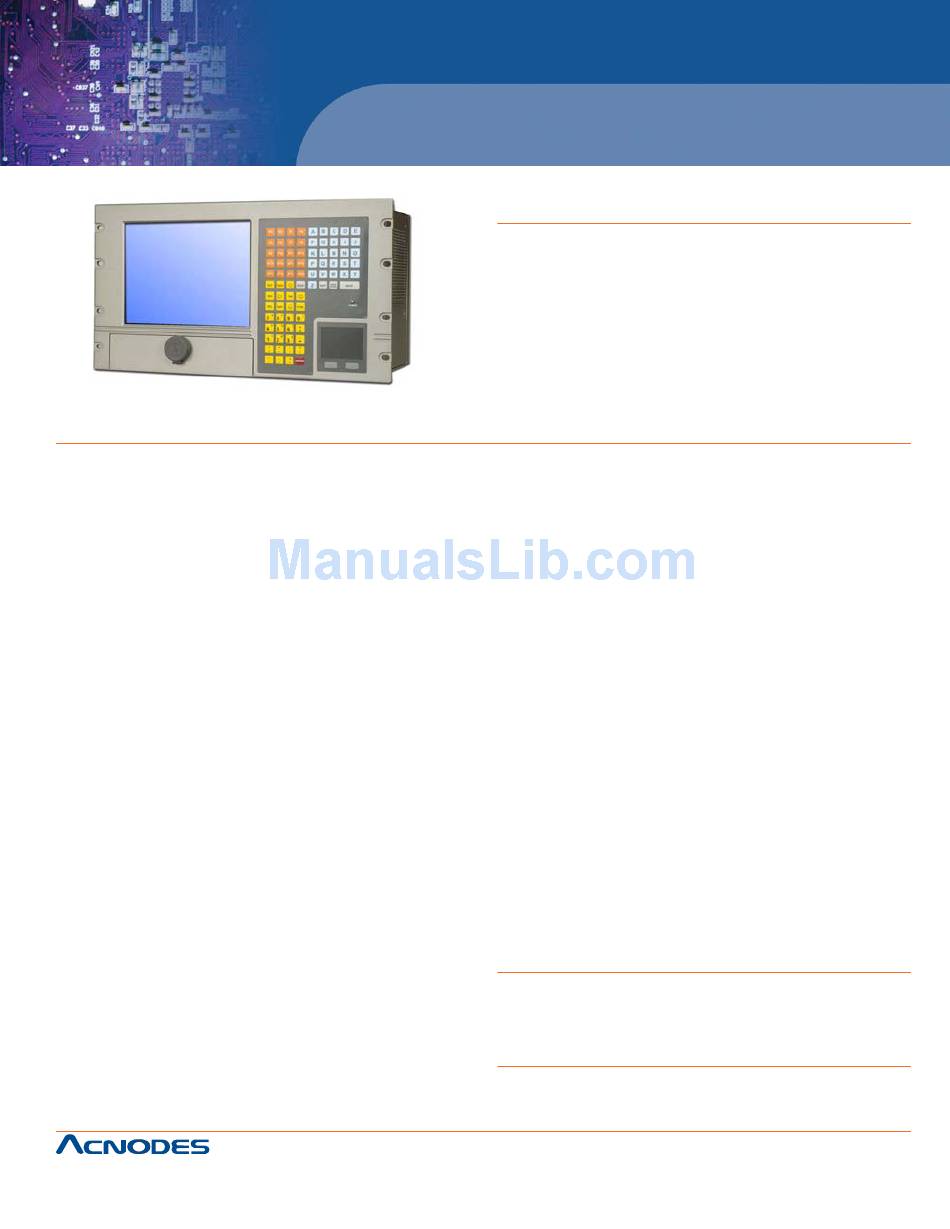

LW 6104
6U LCD workstation W/10.4" LCD
Pentium D system
8 PCI/ISA expansion slot
» Features
»
6U rackmount design in depth of 9.84"
»
10.4" 800 x 600 TFT LCD panel
»
Optional for touch screen
»
Intel Pentium D Processor with SBC
»
Front panel IP64 water proof
»
Water-Proof touch-pad and 63-key key-pad on front panel
»
1-3.5" open bay, 1- 3.5" hidden bay
»
Selection of 8 slots PICMG 1.0 back plane
Power Supply
300W PS/2 size ATX P/S
optional for 12/24/48 DC P/S
Front panel interface
System power switch
OSD (on screen display) control
Buttons
One USB port
Color
Silver ( PANTONE PMS-8001)
Dimensions (W x H x D)
483mm x 266mm x 248mm
19.1" x 10.5" x 9.84"
Weights
45lbs
Environmental
Operating temperature: 0o ~ 50oC
Relative humidity:
5 ~ 85%, non-condensing
Vibration:
5 ~ 17Hz, 0.1" double amplitude displacement
17 ~ 500Hz, 1.5G acceleration peak to peak
Shock:
10G peak acceleration peak to peak (11ms)
» Ordering Guide
LW 6104:
6U 10.4" 800 x 600 LCD workstation, Pentium D system, 300W
ATX power and 8-slot backplane.
» Options
T-10: 10.4" 800 x 600 resistive-type touch screen
