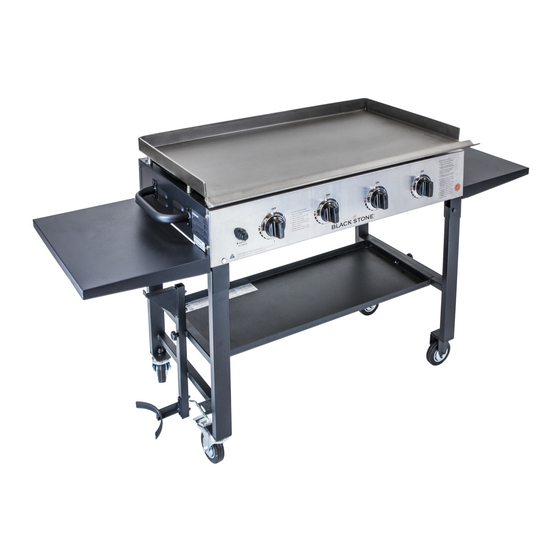

OWNER’S MANUAL 36” GRIDDLE COOKING STATION Model 1565 5003433 North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Model 1565 | Owner’s Manual | Register Your Product | Owner’s Manual | Model 1565 D A N G E R REGISTER • NEVER opperate this appli- ance within 10ft (3.0 m) of 36” GRIDDLE YOUR PRODUCT SAFE T Y ALERT KE Y...
Model 1565 | Owner’s Manual | For Your Safety For Your Safety | Owner’s Manual | Model 1565 D A N G E R WA R N I N G FOR YOUR SAFET Y IF YOU SMELL GAS: NEVER partially cook meat or poultry and finish cooking 1.
Page 4
Model 1565 | Owner’s Manual | For Your Safety | Owner’s Manual | Model 1565 WA R N I N G Adding a large amount Section 02 of cold or frozen food (or GRIDDLE SAFET Y INSTRUCTIONS food with significant water content) to a hot griddle may cause griddle to warp.
Model 1565 | Owner’s Manual | Assembly Guide Assembly Guide | Owner’s Manual | Model 1565 ASSEMBLY GUIDE E XPLODED VIEW ILLUSTRATED PARTS LIST Body (1 piece) Griddle Top (1 piece) Side Shelves (2 pieces) 1.9b 1.7a 1.7c 1.7b 13.1...
Page 6
Model 1565 | Owner’s Manual | Assembly Guide Assembly Guide | Owner’s Manual | Model 1565 WA R N I N G This instruction manual contains important information necessary for ASSEMBLY INSTRUCTIONS S T E P 0 2 Pull the locking pin to release the legs and raise them to a...
Page 7
BAT TERY POWERED IGNITION TROUBLESHOOTING Model 1565 | Owner’s Manual | Assembly Guide Care & Maintenance Assembly Guide | Owner’s Manual | Model 1565 SYMPTOMS WA R N I N G 01. Burner will not Light with ignition system NEVER APPLY COLD 02.
Model 1565 | Owner’s Manual | Care & Maintenance Care & Maintenance | Owner’s Manual | Model 1565 WA R N I N G WA R N I N G CARE & MAINTENANCE When not in use, turn unit A clogged burner controls and gas source OFF.
Model 1565 | Owner’s Manual | Care & Maintenance Care & Maintenance | Owner’s Manual | Model 1565 C A U T I O N Small variations in Section 02 manufacturing and raw GRIDDLE SEASONING INSTRUCTIONS materials can cause some...
Model 1565 | Owner’s Manual | Care & Maintenance Care & Maintenance | Owner’s Manual | Model 1565 Section 03 CLEANING THE BURNER ASSEMBLY BURNER FL AME CHECK MATCH LIGHTING INSTRUCTIONS 01. Light burners and rotate knobs Unit burners vary, however these instructions apply to all units. Clean from high to low.
Model 1565 | Owner’s Manual | Care & Maintenance Care & Maintenance | Owner’s Manual | Model 1565 D A N G E R WA R N I N G DO NOT place flammable NEVER APPLY COLD Section 04 items on side shelves...
Model 1565 | Owner’s Manual | Fuel | Propane – 20lb. Tank 20lb. Tank – Propane | Fuel | Owner’s Manual | Model 1565 WA R N I N G D A N G E R FUEL | PROPANE –...
Model 1565 | Owner’s Manual | Fuel | Propane – 20lb. Tank 20lb. Tank – Propane | Fuel | Owner’s Manual | Model 1565 D A N G E R WA R N I N G Do not insert any tool or...
Model 1565 | Owner’s Manual | Fuel | Propane – 20lb. Tank 20lb. Tank – Propane | Fuel | Owner’s Manual | Model 1565 WA R N I N G If “growing” bubbles Section 03 appear during leak test, LEAK TEST INSTRUCTIONS do not use or move the LP bottle.
Model 1565 | Owner’s Manual | Ignition | Battery Powered Troubleshooting | Owner’s Manual | Model 1565 WA R N I N G IGNITION | TROUBLESHOOTING Do not lean over griddle while lighting. BAT TERY POWERED Section 01 WA R N I N G...
Model 1565 | Owner’s Manual | Troubleshooting Troubleshooting | Owner’s Manual | Model 1565 Section 02 GRIDDLE GAS FLOW SYMPTOMS 01. Griddle will not achieve a high heat or heats unevenly. SYMPTOMS 02. Burner flames start strong, then immediately drop to low even when 01.
Model 1565 | Owner’s Manual | F.A.Q. Warranty | Owner’s Manual | Model 1565 C A U T I O N F. A .Q. NORTH ATLANTIC IMPORTS LLC Small variations in manufacturing and raw 1-YEAR WARRANT Y materials can cause some Q.
Page 18
Model 1565 | Owner’s Manual | | Owner’s Manual | Model 1565...
Page 19
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 20
MANUEL D’UTILISATION STATION DE CUISSION GRIDDLE DE 36” Modèle 1565 5003433 North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 21
Modèle 1565 | Manuel d’utilisation | Enregistrer votre produit | Manuel d’utilisation | Modèle 1565 D A N G E R • N’utilisez jamais cet appareil STATION DE ENREGISTRER à moins de 3 m (10 pi) de toute structure ou matériau VOTRE PRODUIT combustible ou d’une autre...
Modèle 1565 | Manuel d’utilisation | Pour votre sécurité Pour votre sécurité | Manuel d’utilisation | Modèle 1565 D A N G E R D A N G E R AT T E N T I O N POUR VOTRE SÉCURITÉ...
Modèle 1565 | Manuel d’utilisation | Pour votre sécurité | Manuel d’utilisation | Modèle 1565 AT T E N T I O N L’ajout d’une grande Section 02 quantité d’aliments froids INSTRUCTIONS DE SÉCURITÉ POUR ou congelés (ou d’aliments avec une teneur en eau...
Modèle 1565 | Manuel d’utilisation | Guide de montage Guide de montage | Manuel d’utilisation | Modèle 1565 GUIDE DE MONTAGE VUE ÉCL ATÉE LISTE DES PIÈCES ILLUSTRÉES Corps (1 pièce) Plaque de cuisson (1 pièce) Tablettes latérales (2 pièces) 1.9b...
Page 25
Modèle 1565 | Manuel d’utilisation | Guide de montage Guide de montage | Manuel d’utilisation | Modèle 1565 AT T E N T I O N Ce manuel d’instructions contient des informations importantes nécessaires INSTRUCTIONS DE MONTAGE É TA PE 0 2 Tirez sur la goupille de verrouillage pour libérer les pieds et...
Page 26
DÉPANNAGE DE L’ALLUMAGE ALIMENTÉ PAR BATTERIE Modèle 1565 | Manuel d’utilisation | Guide de montage Entretien et maintenance Guide de montage | Manuel d’utilisation | Modèle 1565 SYMPTÔMES AT T E N T I O N 01. Le brûleur ne s’allume pas avec le système d’allumage N’APPLIQUEZ JAMAIS...
Modèle 1565 | Manuel d’utilisation | Entretien et maintenance Entretien et maintenance | Manuel d’utilisation | Modèle 1565 AT T E N T I O N AT T E N T I O N ENTRETIEN ET Lorsqu’il n’est pas Un tube de brûleur bouché...
Modèle 1565 | Manuel d’utilisation | Entretien et maintenance Entretien et maintenance | Manuel d’utilisation | Modèle 1565 M I S E E N G A R D E De petites variations dans la fabrication et les matières premières peuvent entraîner QUELLE QUANTITÉ...
Modèle 1565 | Manuel d’utilisation | Entretien et maintenance Entretien et maintenance | Manuel d’utilisation | Modèle 1565 Section 03 NETTOYAGE DU BRÛLEUR VÉRIFICATION DE L A INSTRUCTIONS POUR FL AMME DU BRÛLEUR L’ALLUMAGE AVEC Suivez ces instructions pour nettoyer ou remplacer des pièces du ALLUME T TES brûleur, ou en cas de difficulté...
Modèle 1565 | Manuel d’utilisation | Entretien et maintenance Entretien et maintenance | Manuel d’utilisation | Modèle 1565 D A N G E R AT T E N T I O N Ne placez pas d’objets N’APPLIQUEZ JAMAIS Section 04 inflammables sur les D’EAU FROIDE SUR UNE...
Modèle 1565 | Manuel d’utilisation | Carburant | Propane – Réservoir de 9,1 kg (20 lb) Réservoir de 9,1 kg (20 lb) – Propane | Carburant | Manuel d’utilisation | Modèle 1565 AT T E N T I O N CARBURANT | Les carburants utilisés...
Modèle 1565 | Manuel d’utilisation | Carburant | Propane – Réservoir de 9,1 kg (20 lb) Réservoir de 9,1 kg (20 lb) – Propane | Carburant | Manuel d’utilisation | Modèle 1565 D A N G E R D A N G E R •...
Modèle 1565 | Manuel d’utilisation | Carburant | Propane – Réservoir de 9,1 kg (20 lb) Réservoir de 9,1 kg (20 lb) – Propane | Carburant | Manuel d’utilisation | Modèle 1565 AT T E N T I O N...
Modèle 1565 | Manuel d’utilisation | Allumage | Alimenté par batterie Dépannage | Manuel d’utilisation | Modèle 1565 AT T E N T I O N ALLUMAGE | DÉPANNAGE Ne vous penchez pas au-dessus de la plaque de ALIMENTÉ PAR cuisson pendant l’allumage.
Modèle 1565 | Manuel d’utilisation | Dépannage Dépannage | Manuel d’utilisation | Modèle 1565 Section 02 FLUX DU GAS DE LA PLAQUE SYMPTÔMES CHAUFFANTE 01. La plaque chauffante n’atteindra pas une chaleur élevée ou ne chauffe pas de manière inégale.
Modèle 1565 | Manuel d’utilisation | Garantie | Manuel d’utilisation | Modèle 1565 M I S E E N G A R D E GARANTIE D’UN AN DE NORTH De petites variations dans la fabrication et les matières ATLANTIC IMPORTS LLC premières peuvent entraîner...
Page 37
Modèle 1565 | Manuel d’utilisation | | Manuel d’utilisation | Modèle 1565...
Page 38
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 39
MANUAL DEL PROPIETARIO 36” PLANCHA ESTACIÓN DE COCINA Modelo 1565 5003433 North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 40
Modelo 1565 | Manual del propietario | Registre su producto | Manual del propietario | Modelo 1565 P E L I G R O 36” PLANCHA REGISTRE • NUNCA opere este aparato a menos de 3.0 m (10 pies) SU PRODUCTO ESTACIÓN DE...
Modelo 1565 | Manual del propietario | Por su seguridad Por su seguridad | Manual del propietario | Modelo 1565 P E L I G R O A D V E R T E N C I A POR SU SEGURIDAD...
Page 42
Modelo 1565 | Manual del propietario | Por su seguridad | Manual del propietario | Modelo 1565 A D V E R T E N C I A Agregar una gran cantidad Sección 02 de alimentos fríos o INSTRUCCIONES DE SEGURIDAD DE...
Modelo 1565 | Manual del propietario | Guía de montaje Guía de montaje | Manual del propietario | Modelo 1565 GUÍA DE MONTAJE VISTA EN DESPIECE ORDENADO LISTA DE PIE Z AS ILUSTRADA Cuerpo (1 pieza) Tapa de la plancha (1 pieza) Estantes laterales (2 piezas) 1.9b...
Page 44
Modelo 1565 | Manual del propietario | Guía de montaje Guía de montaje | Manual del propietario | Modelo 1565 A D V E R T E N C I A Este manual de instrucciones contiene información importante necesaria para el...
Page 45
Sección 01 Modelo 1565 | Manual del propietario | Guía de montaje Cuidado y mantenimiento Guía de montaje | Manual del propietario | Modelo 1565 SOLUCIÓN DE PROBLEMAS DE ENCENDIDO BATERÍA SÍNTOMAS A D V E R T E N C I A 01.
Modelo 1565 | Manual del propietario | Cuidado y mantenimiento Cuidado y mantenimiento | Manual del propietario | Modelo 1565 A D V E R T E N C I A A D V E R T E N C I A CUIDADO Y Cuando no esté...
Modelo 1565 | Manual del propietario | Cuidado y mantenimiento Cuidado y mantenimiento | Manual del propietario | Modelo 1565 P R E C A U C I Ó N Pequeñas variaciones en la Sección 02 fabricación y las materias INSTRUCCIONES DE CURACIÓN DE...
Page 48
Modelo 1565 | Manual del propietario | Cuidado y mantenimiento Cuidado y mantenimiento | Manual del propietario | Modelo 1565 Sección 03 LIMPIEZA DEL CONJUNTO CONTROL DE LL AMA INSTRUCCIONES DE DEL QUEMADOR ENCENDIDO CON DEL QUEMADOR FÓSFOROS 01. Encienda los quemadores y Siga estas instrucciones para limpiar y/o reemplazar pieza del conjunto gire las perillas de alto a bajo.
Page 49
Modelo 1565 | Manual del propietario | Cuidado y mantenimiento Cuidado y mantenimiento | Manual del propietario | Modelo 1565 P E L I G R O A D V E R T E N C I A No coloque artículos NUNCA APLIQUE AGUA Sección 04...
Modelo 1565 | Manual del propietario | Carburante | Propano – Cilindro de 20 lb Cilindro de 20 lb – Propano | Carburante | Manual del propietario | Modelo 1565 A D V E R T E N C I A...
Page 51
Modelo 1565 | Manual del propietario | Carburante | Propano – Cilindro de 20 lb Cilindro de 20 lb – Propano | Carburante | Manual del propietario | Modelo 1565 P E L I G R O P E L I G R O •...
Page 52
Modelo 1565 | Manual del propietario | Carburante | Propano – Cilindro de 20 lb Cilindro de 20 lb – Propano | Carburante | Manual del propietario | Modelo 1565 A D V E R T E N C I A...
Modelo 1565 | Manual del propietario | Encendido | Batería Solución de problemas | Manual del propietario | Modelo 1565 A D V E R T E N C I A ENCENDIDO | SOLUCIÓN DE No se incline sobre la plancha BATERÍA...
Page 54
Modelo 1565 | Manual del propietario | Solución de problemas Solución de problemas | Manual del propietario | Modelo 1565 Sección 02 FLUJO DE GAS DE LA PLANCHA SÍNTOMAS 01. La plancha no alcanzará un alto calor o se calienta de manera desigual.
Modelo 1565 | Manual del propietario | Preguntas frecuentes Garantía | Manual del propietario | Modelo 1565 P R E C A U C I Ó N PREGUNTAS NORTH ATLANTIC IMPORTS LLC Pequeñas variaciones en la fabricación y las materias FRECUENTES GARANTÍA DE 1 AÑO...
Page 56
Modelo 1565 | Manual del propietario | | Manual del propietario | Modelo 1565...
Page 57
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
