BAK bakFlip Installation Sheet

1
3
TOOLS RECOMMENDED
7/8", [0.875", (22mm)] drill bit & drill (optional)
Philips screwdriver
1/8" Hex head
T50 Torx drive
•

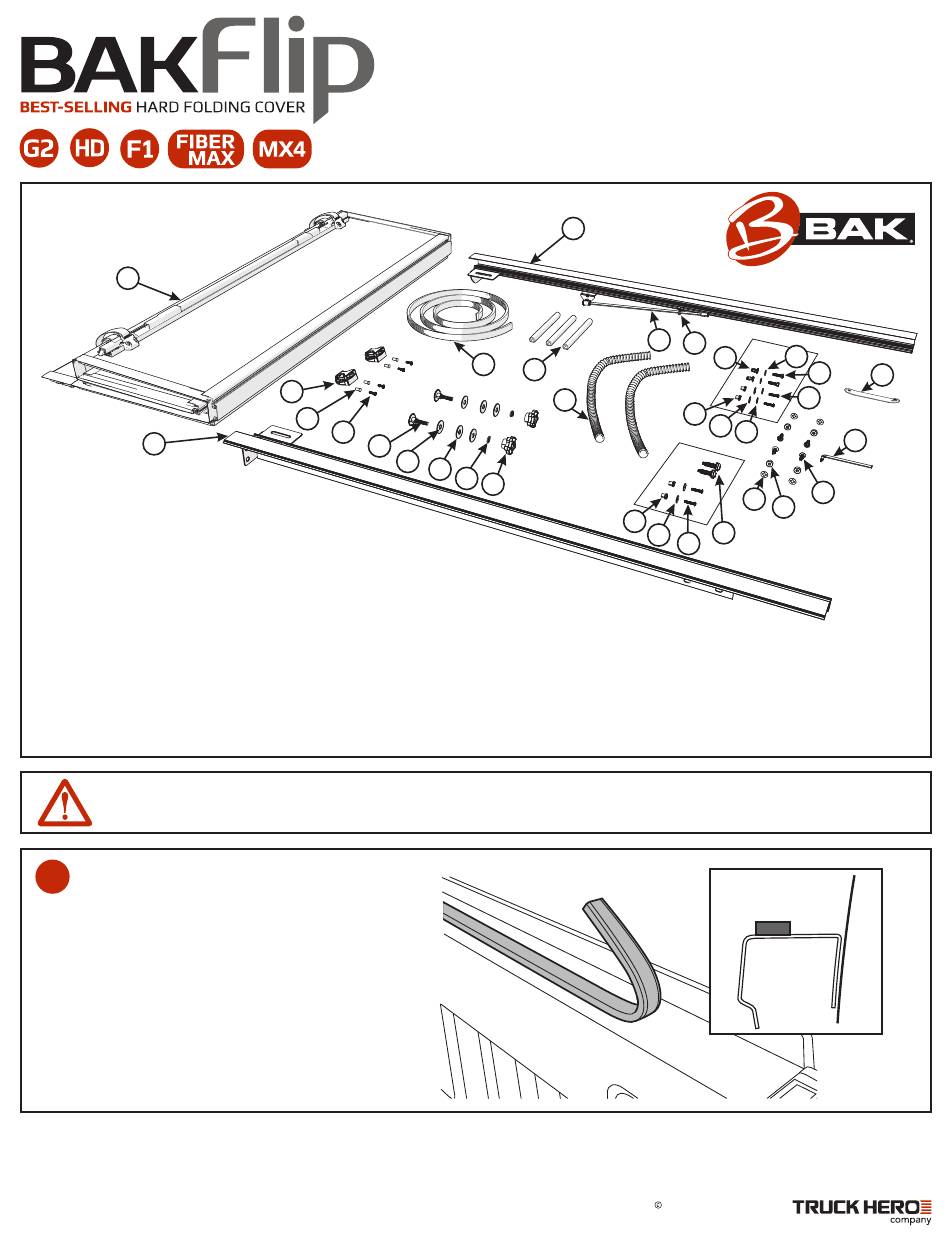

1 Hard Folding Cover
•
2 RH, passenger side rail
•
3 LH, driver side rail
•
4 Prop rod
•
5 Prop rod clip
•
6 Buckles
• •
7 Buckle mounting inserts
8 Buckle mounting screws
•
9 Bulkhead seal
NOTE: The rail installation will require identifying the bulkhead hole configuration of your truck.
This will determine which hardware package, A or B, is used. This is in step 6.
1

BULKHEAD SEAL STRIP INSTALLATION

NOTE: Installations with a drop-in bed liner
will NOT require the bulkhead seal.
NOTE: Wipe the surface with isopropyl alcohol
before applying.
Remove the paper backing and apply the seal
strip to the top of the bulkhead. Trim the ends
to tightly fit to the sides of the bed. Apply along
the radius of the bulkhead back edge.
BAK Industries
• 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 818-365-9000 • bakindustries.com
6
7
8
11
12
•
10 Drain hoses
•
11 Cover mounting elevator bolts
• •
12 Cover mounting rubber washers
13 Cover mounting washers
•
14 Cover mounting lock washers
•
15 Cover mounting knob
A
• •
16 Well nuts
17 Washers, oversize #10
•
18 Screws, buttonhead
•
19 Screw and washers, truss head
INSTALLATION SHEET
Jeep Gladiator
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 818-365-9000 Mon - Fri 8:30 am - 7 pm EST
or email support@bakindustries.com
2
9
31
10
13
14 15
B
•
20 Well nuts
•
21 Washers, flat
• •
22 Washers, oversize #10
23 Screws, buttonhead
•
24 Jack nuts
•
25 Washers, flat
•
26 Bolts 1/4-20
Part# 318B0047 Rev. 8.12.2020
4
5
B
25
24
23
20
21
22
A
28 29
16
17 18 19
•
27 Allen wrench
•
28 Washers, retainer
•
29 Spacers
•
30 Screw & washers, M6
•
31 Cab bumpers
•
32 Jack nut installer wrench
Laurmark Enterprises, Inc., 2020
26
32
27
30
