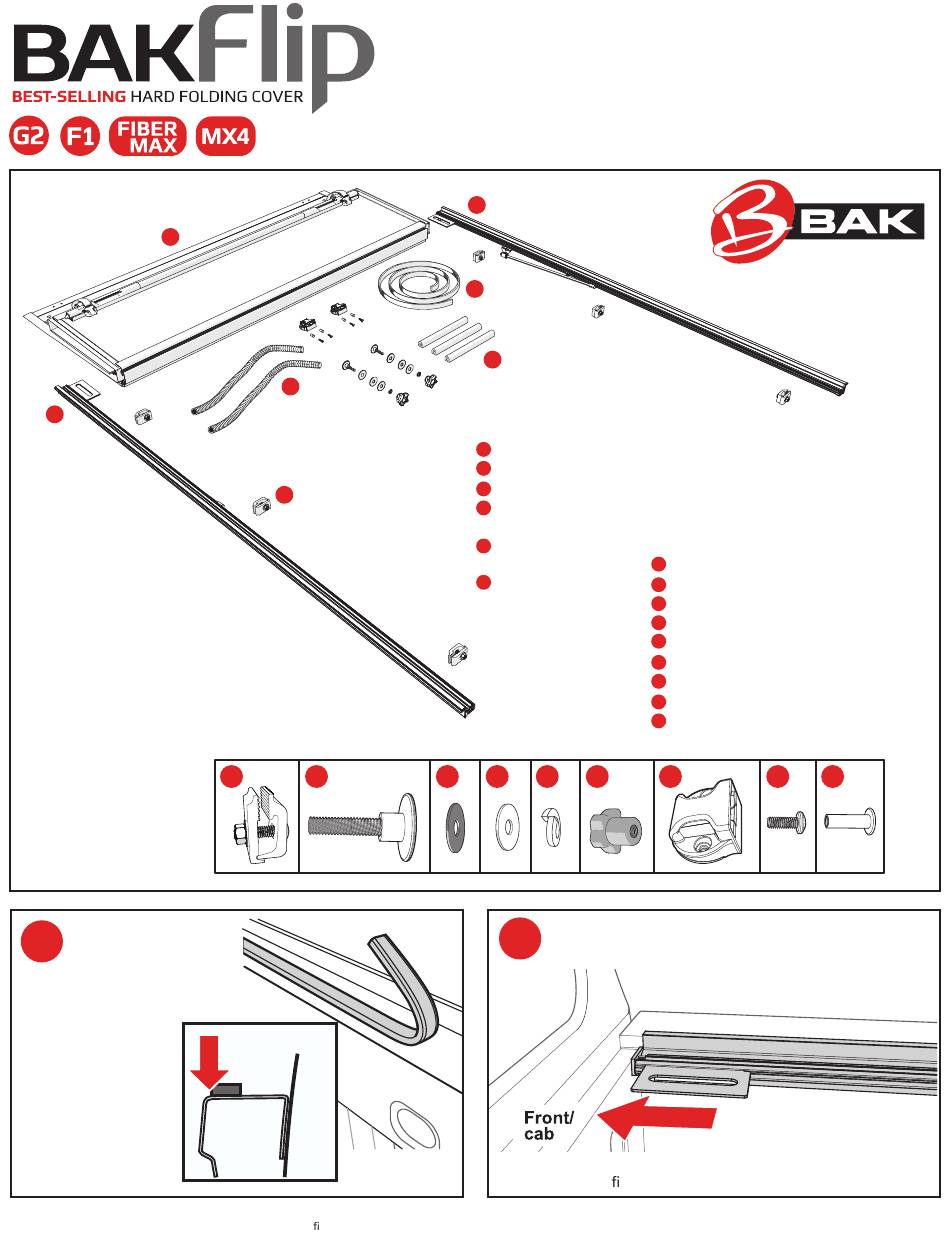

BAK BAKFlip G2 Installation Sheet

C
B
SELECT SYSTEMS ONLY!
8x Angle shims 2x Spacer shims
TOOLS REQUIRED
•
Scissors or utility knife
•
9/16" Wrench or socket
•
Phillips screwdriver
•
7/8" Drill bit & drill
Clean the
1
top of the
bulkhead to
install the seal (D).
Peel the backing
and adhere the seal
from one bedrail
edge to the other.
Remove any excess
with scissors or a
utility knife. If the
truck has a drop-in
bedliner, no seal
will be needed.
BAK Industries • 1100 N. Glenstone Ave. Suite 140, Spring eld, MO 65802 • 818-365-9000
F
G
(not pictured)
TOOLS RECOMMENDED
•
Blow dryer or heat gun
G H
Cab
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 818-365-9000 Mon - Fri 8:30 am - 7:00 pm EST
or email support@bakindustries.com
A
D
E
PARTS INCLUDED IN YOUR KIT
1x Passenger side rail
A
B 1x Driver side rail
1x Hard fold cover
C
1x Bulkhead seal
D
(¾ x ¾ x truck width)
3x D-shaped cab
E
bumpers
2x Drain tubes
F
I J K L
Place passenger side rail (A) on the truck rail with
2
the slotted bracket pushed all the way toward the
cab and the bulkhead.
NOTE: Some drop-in bedliners may require trimming
in the corners to t the rail into the opening.
©Laurmark Enterprises, Inc., 2022
1 HARDWARE BAG INCLUDING
6x Clamps (8x for 8' trucks)
G
2x Elevator bolt
H
4x Rubber washers
I
2x Stainless washers
J
2x Lock washers
K
2x Lock knobs
L
2x Buckle ends
M
4x Machine screws
N
4x Rivet nuts
O
M N O
Part# 318A0029 Rev. 10-18-22
