Step 1

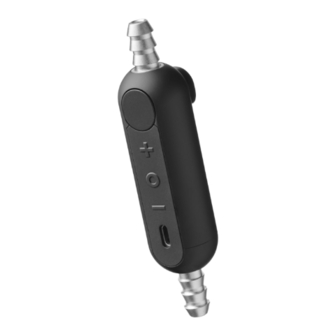

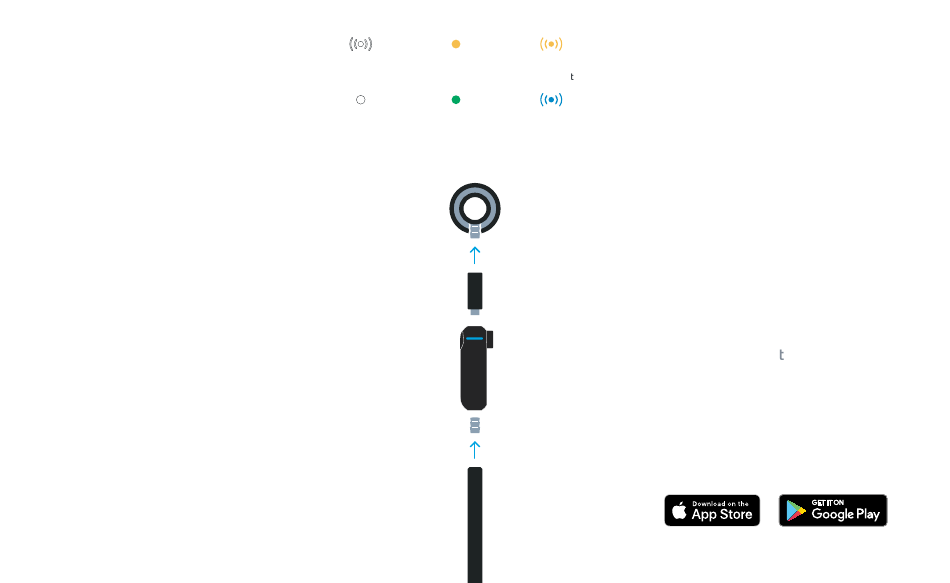

Assemble your CORE
1.
Choose the standard or
pediatric tubing connector and
screw into the top of the CORE,
the end closest to the power
toggle
2.
A�ach the chest piece to the
tubing connector
3.
Choose either the standard or
pediatric barb to screw into the
base of the CORE
4.
A�ach your stethoscope tubing
to the barb
5.
Slide the On / O� toggle to
power the device. CORE will
only deliver amplified sound in
the ON position
Your CORE is now ready to be
used in Analog or Digital mode.
CORE is ON &
CORE is OFF &
seeking device
CORE is ON &
CORE is fully
connected
charged
Chestpiece
Tubing connector
CORE
Barb
Stethoscope tubing
TM and © Eko Devices Inc.
LBL 055 Rev B
Step 2 (optional)
Connect CORE to the Eko App
CORE is LOW
on bat ery
1.
Download and install the App
CORE is
recording
2.
Create an account, and log in
3.
Turn on the CORE
4.
Follow the prompts to connect
your device and select the CORE
With the app installed, you can now
Visualize Auscul ation Sounds,
Create Recordings, Save, and Share
Patient Data
Google Play and the Google Play logo are
trademarks of Google LLC.
