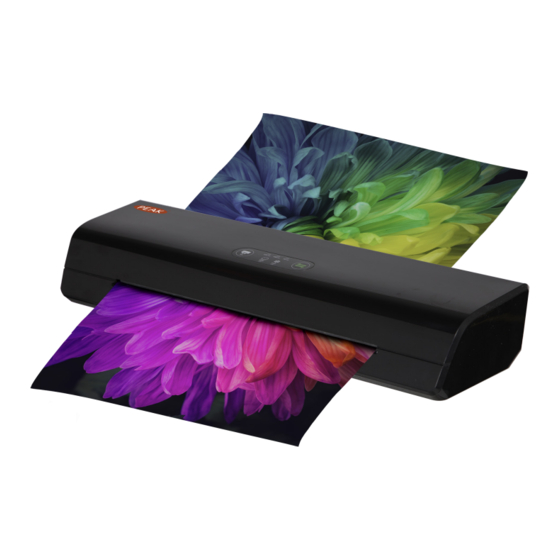

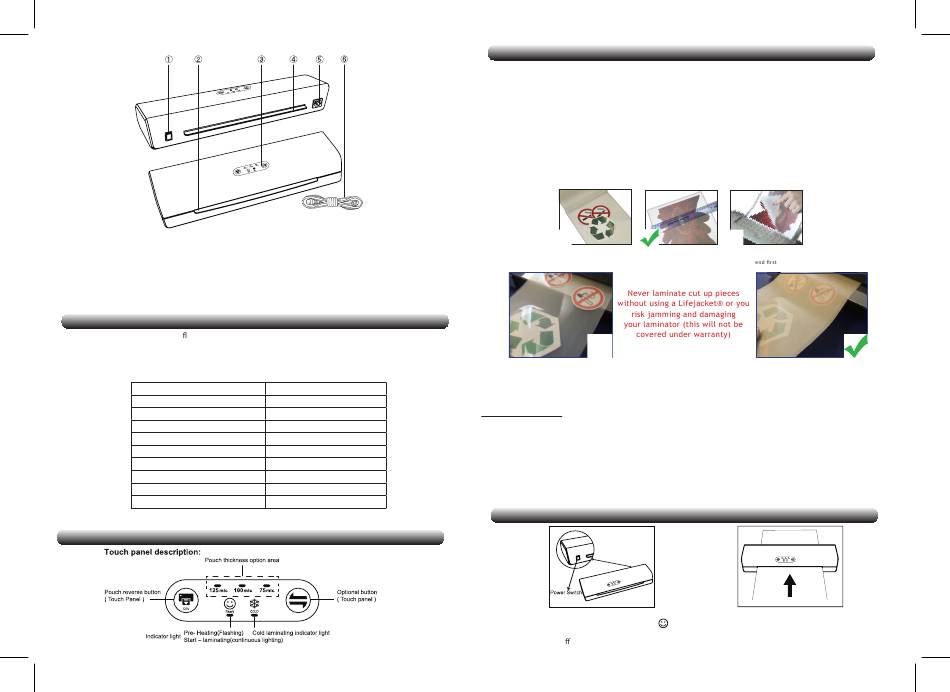

Vivid Peak PI-320 Product Instruction Manual

1. POWER SWITCH
2. POUCH ENTRANCE
3. OPERATION TOUCH PANEL
4. POUCH EXIT
Warning: Thank you for purchasing the Peak Instant PI-320. Peak laminators are designed to give you professional,
high quality results, quickly and easily. Please take a few minutes to read through this important document
as any damage caused to your laminator by user error is not covered under warranty.
SETUP
1. Always operate the machine on a at and stable surface.
2. Ensure there is enough space at the rear of the machine to exit.
3. Ensure that you are using the correct voltage AC240V/50Hz, the voltage information should relate to the rating
panel on the machine.
Max. entrance width
Max. laminating pouch thickness
Power voltage
Power consumption
No. of rollers
Pre-heating time
Machine size
Machine net weight
Supported pouch thickness
Speed/min
OPERATION DESCRIPTION
5. POWER SOCKET
6. POWER CABLE
330mm
0.6mm
AC240v/50Hz
1600W
4
1-minute
506 x 156 x 86 mm
3.15kg
75mic 100mic 125mic
800mm/min
CAUTION
When using electrical appliances, basic precautions should be followed to reduce the risk of injury or electric shock,
including the following:
1. After switching on the machine do not power off within 1-minute.
2. Always unplug the appliance when not in use.
3. The laminator will become hot in use and care should be taken when using the machine.
4. Do not immerse the power cord, plug or appliance in water or other liquids or use near water.
5. Do not insert any metal objects or other foreign objects such as hair, fingers or clothing into the appliance.
6. Remove paper clips and staples before laminating.
7. Only laminate paper or board. Do not laminate unusual objects.
8. Do not spray anything into or lubricate the machine.
9. It is normal to hear the sound of the motor running during operation especially when using a 75 mic pouch
10. Avoid use in direct sunshine or with other intensive light source
x
Don't overlap Leave an even border
x
What is a 'Lifejacket®'?
The Lifejacket® is a highly durable patented product made from Teflon® that should be used when laminating cut-up, odd
shaped pieces (such as shapes, letters, signs as show above) to prevent damage to your laminator and potential jamming.
Why use a Lifejacket®?
. Protects your laminator from jamming
. Extends the life of your laminator by using the Lifejacket® - stops adhesive seeping onto the rollers
. Eliminates repair bills as this product keeps your laminator working at an optimum level
. Available in A4, A3 and A2 sizes to protect documents of all sizes
Ask your supplier for more details.
Please note, if you do not follow the safety guidelines above and your laminator breaks, you will not be covered under
warranty.
Operation Method:
1. Turn on the power switch and choose
the suitable pouch thickness. When
light is on then you can start.
NB. For laminating di erent pouch thicknesses, the speed remains the same but the temperature varies.
x
Don't laminate open
2. Use the correct size pouch
for the work being laminated
and feed sealed edge first
