Housing
Hide thumbs

Advertisement

Table of Contents
2.

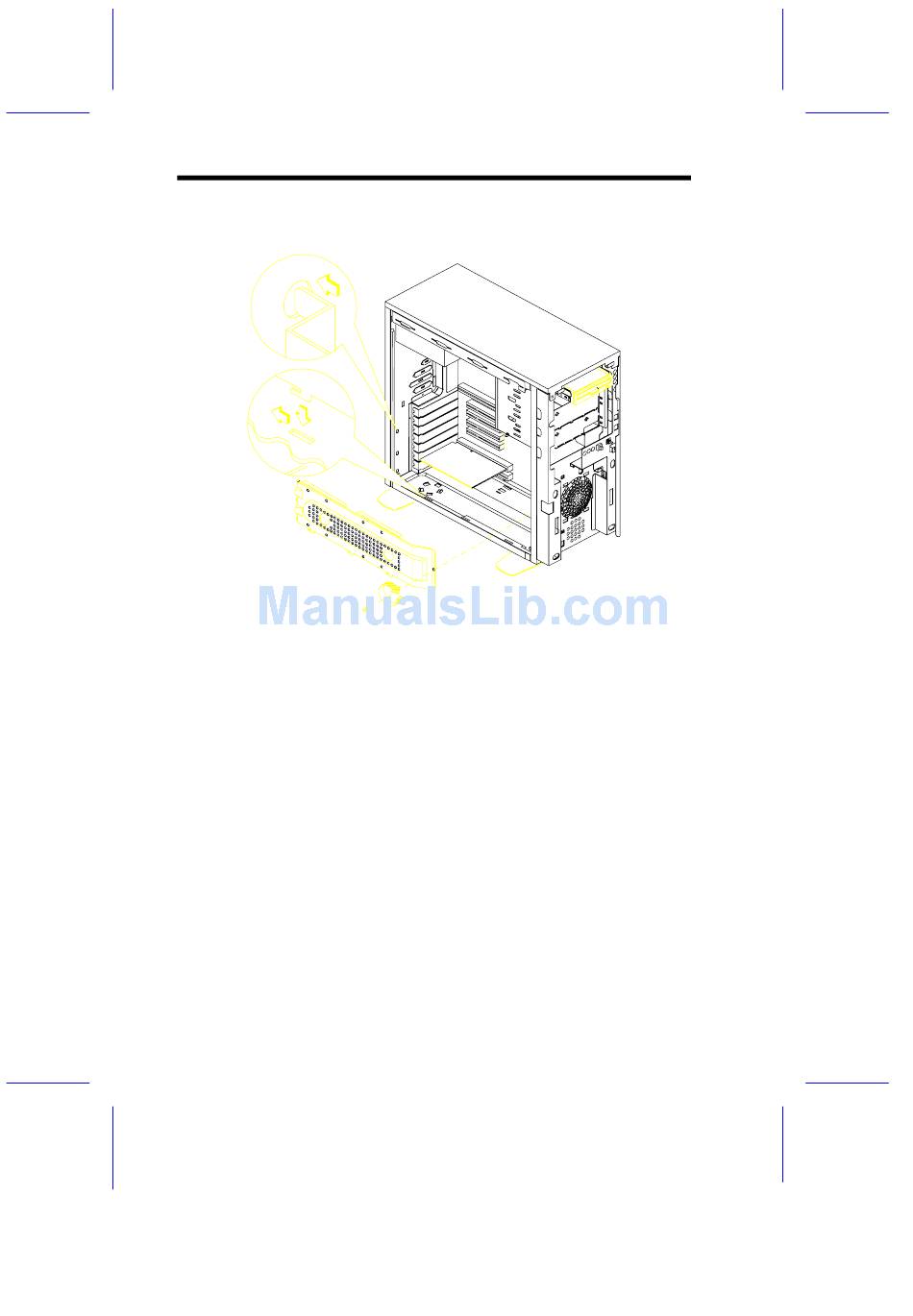

Locate the slots on the rear on the floor of the housing.
3.
Insert the frame tabs into these slots, with the hard disks facing the
system board.
4.
Carefully slide the frame toward the rear of the housing until it fits in
place.
5.
Secure the hard disk frame with a screw.
20
Installation Guide
