Innodisk SATA Slim 3MG2-P Series Manual

Industrial flash storage
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3MG2-P Series
Customer:
Customer
Part
Number:
Innodisk
Part
Number:
Innodisk
Model Name:
Date:
Innodisk
Customer
Approver
Approver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATA Slim 3MG2-P Series and is the answer not in the manual?

Questions and answers

Related Manuals for Innodisk SATA Slim 3MG2-P Series

Summary of Contents for Innodisk SATA Slim 3MG2-P Series

  • Page 1 3MG2-P Series Customer: Customer Part Number: Innodisk Part Number: Innodisk Model Name: Date: Innodisk Customer Approver Approver...

  • Page 2: Table Of Contents

    SATA Slim 3MG2-P Table of contents LIST OF FIGURES ......................6 1. PRODUCT OVERVIEW ....................7 1.1 I SATA S 3MG2-P ............7 NTRODUCTION OF NNODISK 1.2 P ..................7 RODUCT IEW AND ODELS 1.3 SATA I ....................8 NTERFACE 1.4 C ......................
  • Page 3 SATA Slim 3MG2-P 4. INSTALLATION REQUIREMENTS ................19 4.1 SATA S 3MG2-P P ..............19 IRECTIONS 4.2 E SATA S 3MG2-P ..........19 LECTRICAL ONNECTIONS FOR 4.3 D ..................... 19 EVICE RIVE 5. SMART FEATURE SET ..................... 20 6. PART NUMBER RULE ....................22 Rev 1.9 TPS, Oct.,2017...
  • Page 4 SATA Slim 3MG2-P EVISION ISTORY Revision Description Date Preliminary First Released July, 2014 Rev 1.0 Update power consumption Aug., 2014 Add CE/FCC Rev 1.1 Remove flash endurance Jan., 2015 Rev 1.2 Add SMART feature set May, 2015 Rev 1.3 Update performance May, 2015 Rev 1.4 Support Micron MLC...
  • Page 5 SATA Slim 3MG2-P List of Tables 1: D ............................. 9 ABLE EVICE PARAMETERS 2: P .............................. 10 ABLE ERFORMANCE 3: I SATA S 3MG2-P P ..............10 ABLE NNODISK OWER EQUIREMENT 4: P ..........................11 ABLE OWER ONSUMPTION 5: T SATA S 3MG2-P ................

  • Page 6: List Of Figures

    SATA Slim 3MG2-P List of Figures 1: I SATA S 3MG2-P ......................7 IGURE NNODISK 2: I SATA S 3MG2-P B ................. 15 IGURE NNODISK LOCK IAGRAM 3: S .................... 19 IGURE IGNAL EGMENT AND OWER EGMENT Rev 1.9 TPS, Oct.,2017...

  • Page 7: Product Overview

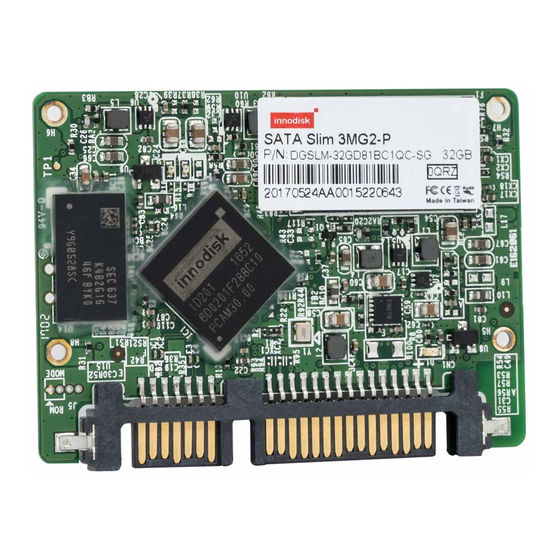

    1. Product Overview 1.1 Introduction of Innodisk SATA Slim 3MG2-P Innodisk SATA Slim 3MG2-P provides a totally brand new highly cost-effective SSD solution with good performance and longer lifespan. Customer can pay much less than SLC flash but embrace longer life and performance than current MLC flash IC based SSD solution. SATA Slim 3MG2-P is a perfect substitute for traditional HDD, which are applied with an evolved L2 Wear Leveling Architecture, and significantly improves SSD random data transfer rate and lifespan.

  • Page 8: Sata Interface

    SATA Slim 3MG2-P supports SATA III interface, and backward compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports 1.5Gbps /3.0Gbps/6.0Gbps data rate).. 1.4 Capacity Innodisk SATA Slim 3MG2-P provides unformatted 8GB, 16GB, 32GB, 64GB, 128GB, 256GB and 512GB capacities within MLC Flash IC. 1.5 MO-297 Form Factor SATA Slim 3MG2-P has a compact design 54.0mm (W) x 39.0mm (L) x 4.0mm (H) without metal...

  • Page 9: Product Specifications

    SATA Slim 3MG2-P 2. Product Specifications 2.1 Capacity and Device Parameters SATA Slim 3MG2-P device parameters are shown in Table 1. Table 1: Device parameters User Capacity Cylinders Heads Sectors Capacity(MB) 13587 13695696 6,687 16GB 29323728 16383 14,318 32GB 16383 60579792 29,580 64GB...

  • Page 10: Performance

    Note: Based on CrystalDiskMark 3.03 with file size 1000MB *Toshiba 15nm 16GB is 1 channel. **Toshiba 15nm 32GB is 2 channels. 2.3 Electrical Specifications 2.3.1 Power Requirement Table 3: Innodisk SATA Slim 3MG2-P Power Requirement Item Symbol Rating Unit Input voltage +5 DC +- 5% Rev 1.9...

  • Page 11: Power Consumption

    SATA Slim 3MG2-P 2.3.2 Power Consumption Table 4: Power Consumption Mode Power Consumption Read 301 mA (max.) Write 655 mA (max.) Idle 114 mA (max.) DEVSLP Mode 3mW (min.) Slumber Mode 30mW (min.) * Target: SATA Slim 3MG2-P 512GB (Toshiba 15nm) 2.4 Environmental Specifications 2.4.1 Temperature Ranges Table 5: Temperature range for SATA Slim 3MG2-P...

  • Page 12: Ce And Fcc Compatibility

    SATA Slim 3MG2-P support following transfer mode: Serial ATA III 6.0Gbps Serial ATA II 3.0Gbps Serial ATA I 1.5Gbps 2.9 Pin Assignment Innodisk SATA Slim 3MG2-P uses a standard SATA pin-out. See Table 8 for SATA Slim 3MG2-P pin assignment. Rev 1.9 TPS, Oct.,2017...

  • Page 13: Table 8: Innodisk Sata S

    SATA Slim 3MG2-P Table 8: Innodisk SATA Slim 3MG2-P Pin Assignment Name Type Description Differential Signal Pair A Differential Signal Pair B Key and Spacing separate signal and power segments 5V Power, Pre-Charge 5V Power 5V Power DAS/DSS Device Activity Signal / Disable Staggered Rev 1.9...

  • Page 14: Mechanical Dimensions

    SATA Slim 3MG2-P 2.10 Mechanical Dimensions 2.11 Assembly Weight An Innodisk SATA Slim 3MG2-P within MLC flash ICs, 32GB’s weight is 40 grams approx. The total weight of SSD will be less than 50 grams. 2.12 Seek Time Innodisk SATA Slim 3MG2-P is not a magnetic rotating design. There is no seek or rotational latency required.

  • Page 15: Theory Of Operation

    Communication with the flash device(s) occurs through the flash interface. 3.2 SATA III Controller Innodisk SATA Slim 3MG2-P is designed with ID 201, a SATA III 6.0Gbps (Gen. 3) controller, which supports external DDDR3 DRAM. The Serial ATA physical, link and transport layers are compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports 1.5Gbps/3.0Gbps/6.0Gbps...

  • Page 16: Error Detection And Correction

    Innodisk SATA Slim 3MG2-P uses a static wear-leveling algorithm to ensure that consecutive writes of a specific sector are not written physically to the same page/block in the flash. This spreads flash media usage evenly across all pages, thereby extending flash lifetime.

  • Page 17: Qeraser Function (Optional)

    SATA Slim 3MG2-P 3.8 QEraser Function (Optional) QEraser function is designed for emergency data erase in few seconds by providing ATA command. 3.8.1 QEraser Command FAh-66h Use to erase data blocks. When the command is issued, the flash is erased immediately. This command causes the SSD to erase all user data blocks, including any reallocated blocks, while retaining all other system data and bad block information.
  • Page 18 SATA Slim 3MG2-P DEV shall specify the selected device. Status register BSY will be cleared to zero indicating command completion DRDY will be set to one. DF (Device Fault) will be cleared to zero. DRQ will be cleared to zero ERR will be cleared to zero.

  • Page 19: Installation Requirements

    Additionally, Innodisk SATA Slim 3MG2-P provides LED signals which indicate power with red light, and DAS for green light. 4.3 Device Drive No additional device drives are required. Innodisk SATA Slim 3MG2-P can be configured as a boot device. Rev 1.9...

  • Page 20: Smart Feature Set

    SATA Slim 3MG2-P 5. SMART Feature Set Innodisk 3MG2-P support the SMART command set and defines some vendor-specific data to report SMART attributes of SSD. Value Command Read Data Read Attribute Threshold Enable/Disable Autosave Save Attribute Values Execute OFF-LINE Immediate...
  • Page 21 SATA Slim 3MG2-P 160 (A0h) LSB Uncorrectable sector count when read/write 161 (A1h) LSB Number of valid spare block 163 (A3h) LSB Number of initial invalid block 164 (A4h) LSB Total erase count 165 (A5h) LSB Maximum erase count 166 (A6h) LSB Minimum erase count 167 (A7h) LSB Average erase count...

  • Page 22: Part Number Rule

    SATA Slim 3MG2-P 6. Part Number Rule CODE D G S L M - 3 2 G D 8 SATA Slim Flash Operation Internal Customized Description Disk Capacity Category Flash 3MG2-P Mode Temp. Control Code Definition Code 1 (Disk) Code 13 (Flash Mode) D : Disk S: Synchronous flash...
  • Page 23 SATA Slim 3MG2-P Appendix Rev 1.9 TPS, Oct.,2017...
  • Page 24 SATA Slim 3MG2-P Rev 1.9 TPS, Oct.,2017...
  • Page 25 SATA Slim 3MG2-P Rev 1.9 TPS, Oct.,2017...
  • Page 26 SATA Slim 3MG2-P Rev 1.9 TPS, Oct.,2017...
