ACPL-C740 Evaluation Kit Board User Guide

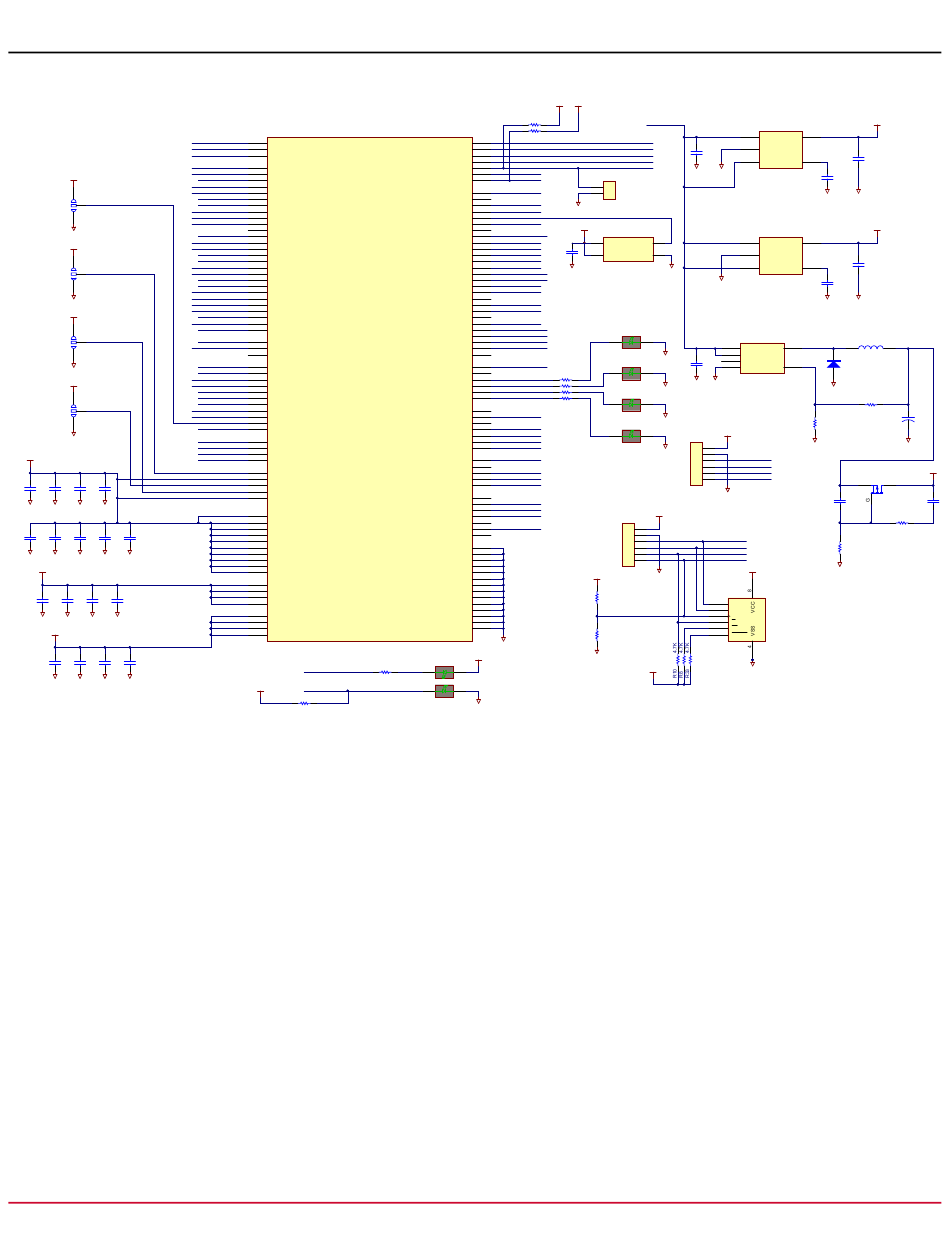

Figure 14: FPGA-EVBD Schematic Diagram (Part 2)
3V3X
T2
T2 shorted to GND2
GND2
3V3X
T3
GND2
3V3X
T4
T4 shorted to 3V3X
GND2
3V3X
T1
GND2
PROM TYPE SEL
3V3X
C21 C31 C41 C43
0.01 uF 0.1 uF 0.01 uF 0.1 uF
GND2 GND2 GND2 GND2
C28 C30 C37 C44 C27
0.01 uF 0.1 uF 0.01 uF 0.1 uF 0.1 uF
GND2 GND2 GND2 GND2 GND2
1V2
C32 C24 C35 C36
0.01 uF 0.1 uF 0.01 uF 0.1 uF
GND2 GND2 GND2 GND2
2V5
C38 C45 C29 C40
0.01 uF 0.1 uF 0.01 uF 0.1 uF
GND2 GND2 GND2 GND2
Broadcom
U5
SRAM_A0 2
IO_L01P_3
SRAM_A1 3
IO_L01N_3
SRAM_A2 4
IO_L02P_3
SRAM_A3 5
IO_L02N_3/VREF_3
SRAM_D1 52
IO/D5
USER_IN0 10
IP ****
SRAM_D0 51
IO_L04N_2/D6/GCLK13
USER_IN1 12
IP/VREF_3
FTDI_RXF 6
IP
6MHz 56
IP_L06P_2/RDWR_B/GCLK0
SRAM_A7 15
IO_L04N_3/LHCLK1
SRAM_A8 16
IO_L05P_3/LHCLK2
SRAM_A9 17
IO_L05N_3/LHCLK3
18
IP
FTDI_SI 22
IO_L07P_3/LHCLK6
SRAM_D7 23
IO_L07N_3/LHCLK7
SRAM_A11 21
IO_L06n_3/LHCLK5
LEDR_HEARTB 74
IO_L01P_1/ A 16
FTDI_TXE 24
IP
SRAM_A12 25
IO_L08P_3
SRAM_A13 26
IO_L08N_3
USER_IN2 29
IP ****
USER_IO4 96
IO_L08P_1/ A 2
SRAM_A14 32
IO_L09P_3
SRAM_A15 33
IO_L09N_3
SRAM_A16 34
IO_L10P_3
SRAM_WE 35
IO_L10N_3
USER_IN4 36
IP
USER_IO1 59
IO_L07N_2/D1/GCLK3
USER_IN5 38
IP
USER_IN6 41
IP
SRAM_A4 7
IO_L03P_3
43
IO_L02P_2/DOUT/BUSY
USER_IN7 47
IP_L03P_2
USER_IN8 48
IP_L03N_2/ VREF_2
SRAM_A6 14
IO_L04P_3/LHCLK0
SRAM_OE 50
IO_L04P_2/D7/GCLK12
FTDI_D0 81
IO_L03P_1/A12
FTDI_D5 87
IO_L05P_1/A8/RHCLK2
USER_IO2 93
IO_L07P_1/A4/RHCLK6
SRAM_D2 53
IO_L05P_2/D4/GCLK14
SRAM_D3 54
IO_L05N_2/D3/GCLK15
57
IP_L06N_2/M2/GCLK1
USER_IO0 58
IO_L07P_2/D2/GCLK2
SPI_CLK 71
IO_L10N_2/CCLK
SPI_CSO_B 39
IO_L01P_2/CSO_B
SPI_MOSI 44
IO_L02N_2/MOSI/CSI_B
SPI_DIN 63
IO_L08N_2/DIN/D0
USER_IN9 66
IO/VREF_2 ****
67
IO_L09P_2/VS2/A19
68
IO_L09N_2/VS1/A18
USER_IN10 69
IP
70
IO_L10P_2/VS0/A17
62
IO_L08P_2/M0
138
VCCO_0
121
VCCO_0
79
VCCO_1
100
VCCO_1
42
VCCO_2
64
VCCO_2
49
VCCO_2
13
VCCO_3
28
VCCO_3
115
VCCINT
45
VCCINT
80
VCCINT
9
VCCINT
65
VCCAUX
137
VCCAUX
102
VCCAUX
30
VCCAUX
XC3S250E
LEDR_HEARTB R26
2V5 LEDG_DONE
R31 330
2V5
R21 4.7K
R29 4.7K
110
JTAG_TCK
108
JTAG_TMS
144
JTAG_TDI
109
JTAG_TDO
1
JTAG_PROG_B
72 LEDG_DONE
JTAG_DONE
40 SPI_INIT
IO_L01N_2/INIT_B
135 USER_IO25
IO_L08N_0/VREF_0
136
IP
134 USER_IO24
IO_L08P_0
132 USER_IO23 GND2
IO
131 USER_IO22
IO_L07N_0/GCLK11
130 USER_IO21
IO_L07P_0/GCLK10
129
IP_L06N_0/GCLK9
128 FPG A_RESET
IP_L06P_0/GCLK8
126 USER_IO20
IO_L05N_0/GCLK7
125 USER_IO19 DNM
IO_L05P_0/GCLK6
124 USER_IO18 C51
IO/VREF_0
123 USER_IO17 0.01uF
IO_L04N_0/GCLK5
122 USER_IO16
IO_L04P_0/GCLK4
120 USER_INB GND2
IP_L03N_0
119 USER_INA
IP_L03P_0
117 USER_IO13
IO_L02N_0
116 USER_IO12
IO_L02P_0
114
IP
113 USER_IO11
IO_L01N_0
112 USER_IO10
IO_L01P_0
111
IP
31 USER_IN3
IO/VREF_3 ****
20 SRAM_A10
IO_L06P_3/ L HCLK4
76 SRAM_D5
IO_L02P_1/ A 14
77 SRAM_D6
IO_L02N_1/A13
8 SRAM_A5
IO_L03N_3
143
IO_L10N_0/HSWAP
75 SRAM_D4
IO_L01N_1/A15
107
IP
106 USER_IO9 R41
IO_L10N_1/ LDC2
105 USER_IO8 R42
IO_L10P_1/LDC1
104 USER_IO7 R43
IO_L09N_1/ LDC0
103 USER_IO6 R44
IO_L09P_1/HDC
101
IP
142 USER_IO28
IO_L10P_0
141
IP
140 USER_IO27
IO_L09N_0
139 USER_IO26
IO_L09P_0
82 FTDI_D1
IO_L03N_1/A11
97 USER_IO5
IO_L08N_1/A1
98 FTDI_WR
IO/A0
95
IP/VREF_1
94 USER_IO3
IO_L07N_1/A3/RHCLK7
92 FTDI_RD
IO_L06N_1/A5/RHCLK5
91 FTDI_D7
IO_L06P_1/ A 6/RHCLK4
89
IP
88 FTDI_D6
IO_L05N_1/A7/RHCLK3
86 FTDI_D4
IO_L04N_1/A9/RHCLK1
85 FTDI_D3
IO_L04P_1/ A 10/RHCLK0
84
IP
83 FTDI_D2
IO/VREF_1
78
IP
60
IO/M1
99
GND
90
GND
55
GND
46
GND
27
GND
73
GND
37
GND
11
GND
19
GND
133
GND
61
GND
118
GND
127
GND
GND2
3V3X
HB
360
GREEN
DONE
GND2
3V3X
3.3V REGULATOR
VCCSW
JTAG_TCK
JTAG_TMS
JTAG_DIN C18
JTAG_DOUT 0.1 uF
SPI_PR OG
GND2 GND2
JP1
1
2
DNM
2.5V R
3V3X
Y1
4 3
VCC OUTPUT
1 2
EN/Disable GND
GND2
GND2
1.2V REGULATOR
1.5A Maximum
LED1
U8
4
VIN_SW
GREEN 5
VIN_A
GND2 6
NC
LED2 C23 2
GND
4.7 uF
820R ST1S03 DFN6
820R GREEN GND2 GND2
820R GND2
820R LED3
GREEN
GND2
LED4
2V5
J2
GREEN 1
GND2 2
3 JTAG_TCK
4 JTAG_DOUT
5 JTAG_DIN
6 JTAG_TMS
Traditional J TAG
DNM GND2
J3 3V3X
Xilinx Parellel Cable Header
1
2
3 TDI SPI_MOSI
4 TDO SPI_DIN
5 TMS SPI_CSO_B
6 TCK SPI_CLK
DNM 3V3X
3V3X GND2
R11
4.7K 5
>Din
2
<Dout
6
C
1
S
3
W
R9 7
HOLD
4.7K
U4
VDFPN
GND2
3V3X GND2
Isolated Sigma-Delta Modulator
200 m A Maximum
3V3X
U6
1 5
IN OUT
2
GND
3 4 C19
EN BYPASS
2.2 uF
TPS79333DBVRQ1
C17
0.01 uF
GND2 GND2
EGULATOR
200 m A Maximum
2V5
U7
1 5
IN OUT
2
GND
3 4 C15
EN BYPASS
2.2 uF
TPS79325DBVR
C14
0.01 uF
GND2 GND2
L1
3
SW
3.3 uH
D1
1
FB
BAT54CT
GND2
R14
24.9K 1%
+
R15 C22
49.9K 1%
GND2 GND2
Q3 1V2
IRLML6401
S D
C20 C42
0.1 uF 0.1 uF
R30
100
R12
220K
GND2
SPI
Flas h
