Summary of Contents for HF Scientific CLX-Ex

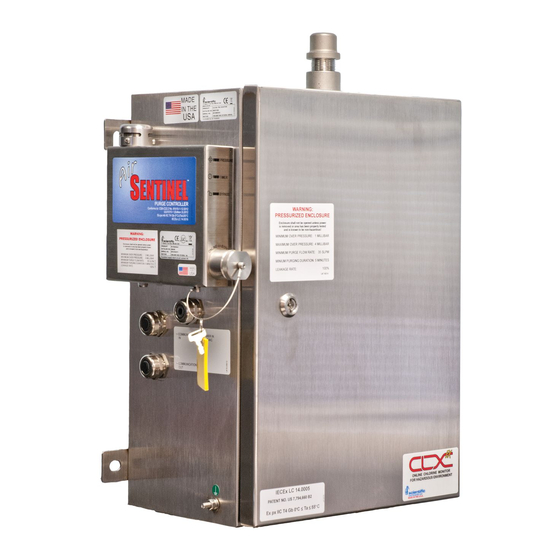

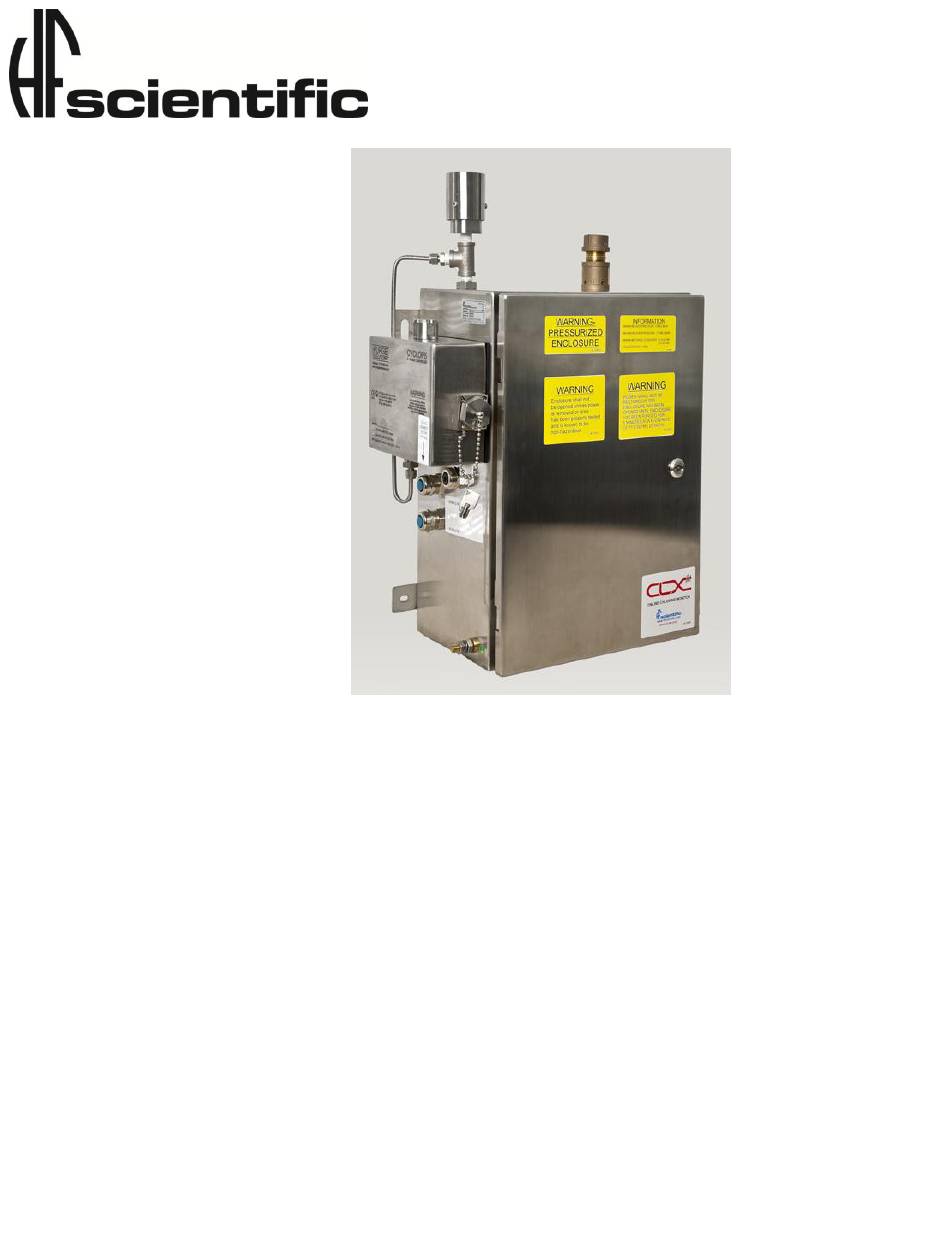

- Page 1 PURGE SYSTEM INSTALLATION MANUAL CLX-Ex Model 28031 HF scientific 3170 Metro Parkway Ft. Myers, FL 33916 Phone: 239-337-2116 Toll Free: 888-203-7248 Fax: 239-332-7643 EMail:HFInfo@Watts.com Website: www.hfscientific.com Catalog No 28815A Rev 1.6 (9/11)
- Page 3 Explosive Atmospheres –Part 2: Equipment Protection by Pressurized Enclosure “p”, EN60079-2: 2007 Emissions & Immunity – Tested and passed EN61326: 1997 + A1: 1998 + A2: 2001 + A3: 2003 Manufacturer’s Name: HF scientific inc. Manufacturer’s Address: 3170 Metro Parkway, Fort Myers, Florida 33916-7597 Importer’s Name:...
-
Page 5: Table Of Contents
Table of Contents Section Page Specifications ....................1 Orientation .......................2 Safety .........................3 Symbols Used In CLX-Ex ..............3 Use in Explosive Environments Safety ..........3 Installation and Commissioning ..............4 Air Supply ....................4 Electrical Connections ................4 System Power ..................4 Purge Control X-Purge Controller Operation ..........5 Start Up ....................5... -
Page 6: Specifications
EN61326:1997 + A1:1998 + A2:2001 + A3:2003 28 kg (62lbs.) Reagents are Shipped Separately Shipping Weight 775 mm X 622 mm X 318 mm (30½ ” X 24 ½” X 12 ½”) Shipping Dimensions CLX-Ex (9/11) Page 1 REV 1.6... -
Page 7: Orientation
WATER REGULATOR POWER INLET I/O SIGNALS WIRING COVER BUFFER REAGENT BOTTLE GROUND LUG REPLACEMENT REAGENT CONTAINER DRAIN AIR INLET & WATER INLET PUMP SOLENOID WATER INLET AIR INLET Figure 3: The CLX-Ex with Cover Open CLX-Ex (9/11) Page 2 REV 1.6... -
Page 8: Safety
Note: This manual is intended to be used in conjunction with the companion manual Cat. No. 28815B. 2.1 Symbols Used In CLX-Ex Standard IEC symbols are used on the high voltage cover. ISO 3864, No. B.3.6 Caution, risk of electric shock This symbol indicates that hazardous voltages. -
Page 9: Installation And Commissioning
600VAC with a temperature rating of 90 ˚C or higher. Common earth bond points are provided both inside the enclosure on the chassis and outside of the enclosure. CLX-Ex (9/11) Page 4 REV 1.6... -
Page 10: Purge Control X-Purge Controller Operation
4.1 Start Up When power is applied to the CLX-Ex for the first time, ensure that the air supply is connected as stated in section 4.1 and the cabinet is closed and locked. Once power is... -
Page 11: Maintenance By-Pass Operation
The indicator lamp will flash Red to indicate the by-pass mode. Assuming the area around the CLX-Ex has been tested and known to be safe, the enclosure door can now be safely opened and power will remain on to the entire system. The key cannot be removed while operating in the maintenance by-pass mode. -
Page 12: Instrument Labels
Instrument Labels The following labels can be found on the outside of the CLX-Ex. Purpose Location Label Electrical Enclosure Left Grommet Side Purpose Water and Air Enclosure Lower Connections Panel Model Name, Enclosure front Manufacturer door Warning Enclosure Front door... - Page 13 Door Warning Enclosure Front Door Warning Reagent Kit WARNING THE REAGENT KIT ENCLOSURE IS NOT TO BE OPENED OR RESEALED UNLESS THE ATMOSPHERE IS KNOWN TO BE FREE FROM EXPLOSIVE GASSES Information Front Cover CLX-Ex (9/11) Page 8 REV 1.6...
