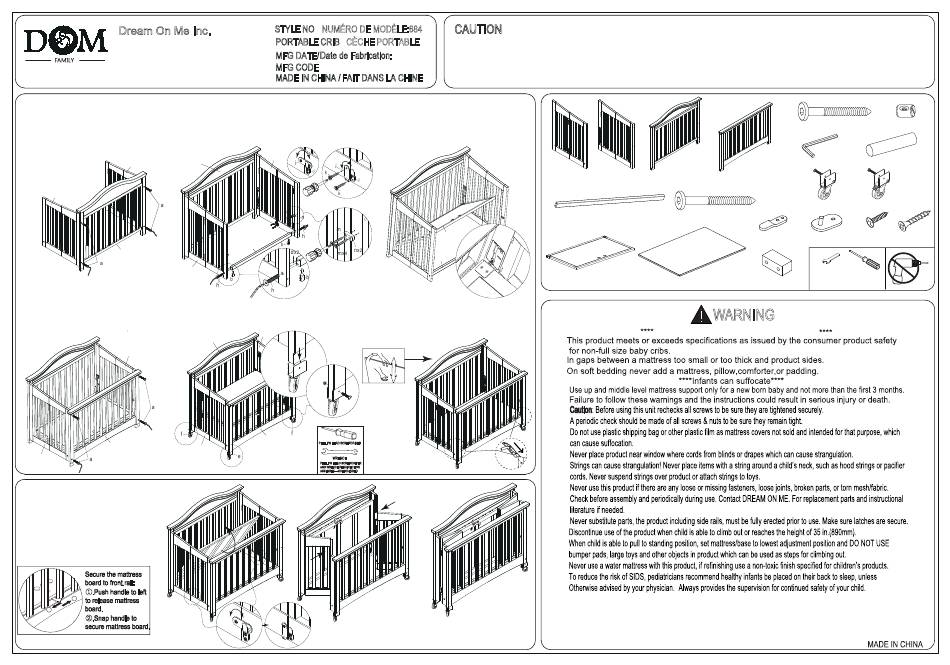

DOM FAMILY Dream On Me Venice 684 Quick Start Manual

Dream On Me Inc.
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
OFFICE: 732-752-7220
CUSTOMER SERVICE: 732-366-1788
STEP 2
Assemble latch (i & j) to the
STEP 1
using 5/8" screw (k). Then assemble plastic block(n) horizontal to to the
Connect Back Rail (C) to the
Left Crib End and Right Crib
Left Crib End and Right Crib End
(A & B) by Bolts ( a) DO NOT fully tighten the bolts.
End
using phillips head screwdriver.Make sure that the latch on the bottom of each
head board (A&B) are locked.
Connect stabilizer bar (E)to the
DO NOT fully tighten the bolts.
C
A
B
C
A
STEP 5
STEP 4
Assemble castors (e&f ) to the leg bottoms on the leg
Connect rail (D) to the Left Crib End and Right Crib
on Back Rail and Front Rail (C&D).2 castors (e) with brake are in
End (A & B) by Bolts ( a) . THEN FULLY tighten all the bolts.
the front.THEN add the mattress(F).
B
D
A
A
Follow bellow to fold the crib:
1.take out the mattress (F)
2.take out the mattress board (E)
3.unlock the latch on the headboard
4.fold the crib
①
2
1
②
/
STYLE NO NUMÉRO DE MODÈLE:684
PORTABLE CRIB / CÈCHE PORTABLE
MFG DATE/ Date de Fabrication:JUN 2018
MFG CODE SY
MADE IN CHINA / FAIT DANS LA CHINE
Left Crib End and Right Crib End (A & B) by
STEP 3
Slot in the metal pin into the notch of left and
(A & B) by using 3/4"screw (m).Tighten screws
Right Crib End
downo highest level.
(A & B) by bolts (h) and nuts (b),wood dowel (d).
Left Crib End and Right Crib End
B
B
B
E
A
E
STEP 6
Select the desire level,and use both hand to lift up
the mattress base,then adjust the level to your
require height of the 2 level.Slide in the bolt
underneath the mattress board (E) to keep the
B
C
mattress support fixed.
G
D
PHILLIPS HEAD SCREWDRIVER
WRENCH
PHILLIPS HEAD SCREWDRIVER
AND WRENCH REQUIRED FOR
ASSEMBLY----NOT INCLUDED
CAUTION:ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 23-5/8"(600MM) BY 37-3/4"
(959MM) WITH A THICKNESS NOT EXCEEDING 2" (51MM) . THE CRIB CONFORMS TO
APPLICABLE REGULATIONS PROMULGATED BY THE CONSUMER PRODUCTS SAFETY
COMMISSION.
side corner post.then move up and
A
A:
Left Crib End (1PC)
B:
Right Crib End (1PC)
E:
Stabilizer bar (1PC)
F
B
E
F:
F Mattress board (1PC)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Child can become entrapped and die when improvised netting or covers are placed on top of product.
Never add such items to confine child in product.
.
Please note that the warning sticker is placed on the cribs to keep parents and caregivers informed it is a
requirement by law under CPSC and ASTM. We do apologize for any inconvenience this may cause you.
.
Follow warnings on all products in a crib.
B
C: D:
Back rail (1PC) Front rail (1 pc)
h:
2-1/4" Allen head bolt (2 pcs)
i: Latch 1 (2 pcs)
n: Plastic block (2 pcs)
G:
Mattress (1PC)
WARNING
KEEP INSTRUCTIONS FOR FUTURE USE
Replace teething rail if damaged,cracked,or loose.
a: 1-1/2" Allen head bolt (8 pcs) b: Barrel nuts (2 pcs)
c:
2" Allen wrench (1 pc) d:
1-1/2" Wood dowel (2 pcs)
e:
Castors (2 pcs) f:
Castors (2 pcs)
k: 5/8" screw m: 3/4"screw
j: Latch 2 (2 pcs)
(6 pcs) (4 pcs)
WRENCH AND
PHILLIPS--HEAD SCREWDRIVER
REQUIRED FOR ASSEMBLY
----NOT INCLUDE
