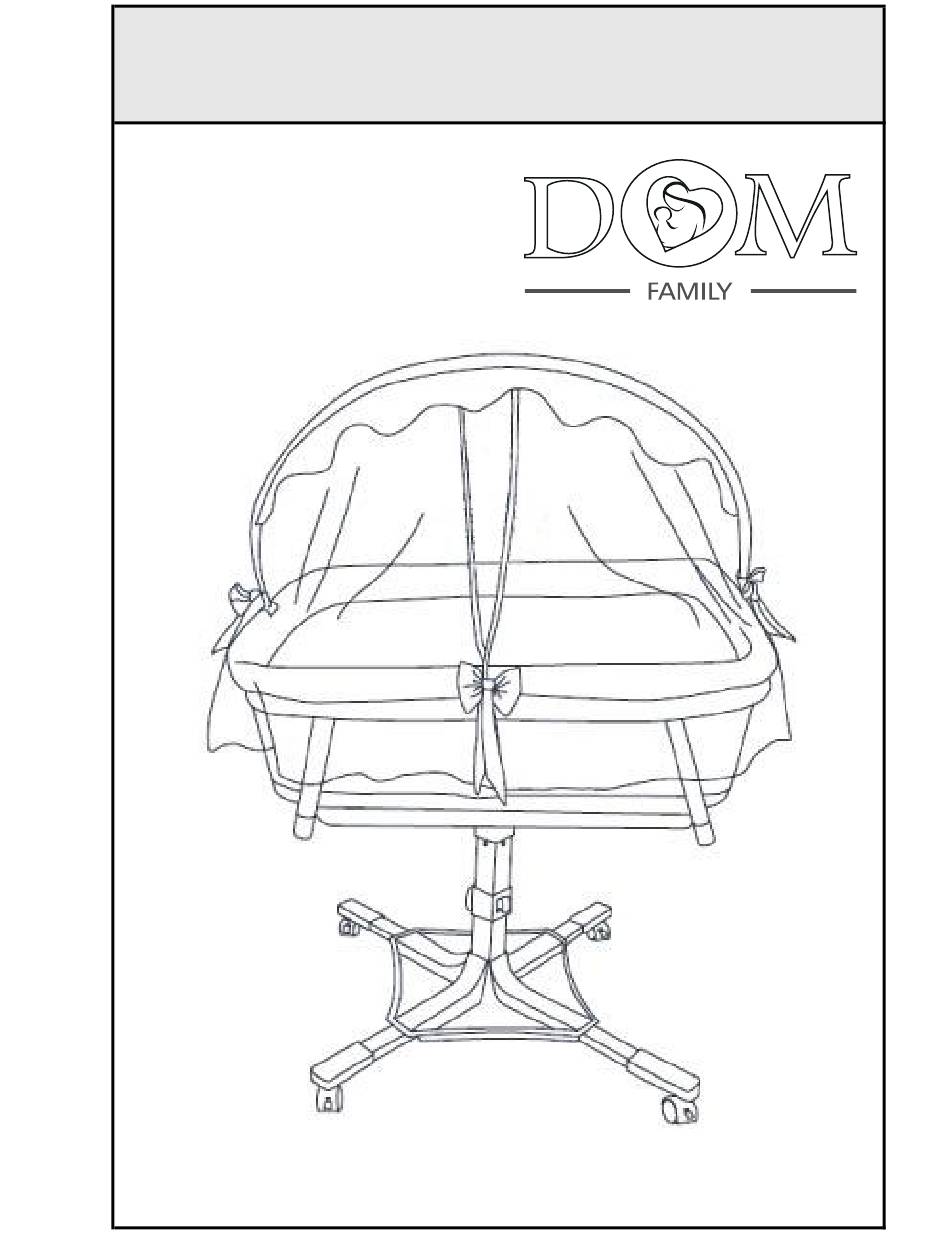

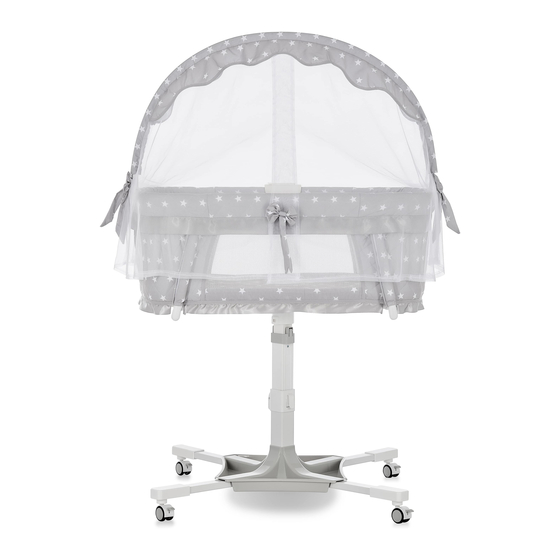

- Page 1 Grand 360 Degree Swivel Bassinet 4470 MODEL NO.: USER MANUAL IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 2 Parts Lists Please check to make sure that all of the following parts listed are included in the box when opened. If there are any missing parts, please contact Dream On Me before using the product. Bassinet Frame Mattress support, Upper Pole and Cover Bottom frame...
- Page 3 WARNING • DO NOT use this bassinet if you cannot exactly follow the instructions. Failure to follow these warnings and the instructions could result in serious injury or death. • If a sheet is used with the mattress pad, use only the one provided by Dream On Me, or one specifically designed to fit the dimensions of the mattress pad.
-
Page 4: Lower Frame Assembly
LOWER FRAME ASSEMBLY Parts used in this stage Lower Pole Bottom Tray Height adjuster Caster x 4 Short Screw x 4 Metal Plate Bottom Tube x2 Screw x8 Screw Driver Lock Nuts x4 Wrench 1. Insert one end of the Bottom Tube into the hole of the Castor. - Page 5 LOWER FRAME ASSEMBLY Metal Plate Lock Nut 4. Use 4 screws, the 4 lock nuts, and the metal plate to connect the Lower Pole to the X-shape bottom tubes as shown in Figure 5. Use the wrench to tighten 4 screws. Figure 5 5.
-
Page 6: Upper Frame Assembly
UPPER FRAME ASSEMBLY Parts used in this stage Bassinet Frame Upper Pole Mattress support, bottom frame Screw x4 Screw Driver 7. Open up the Bassinet Frame as shown in Figure 8 (to the right). Keep the bassinet frame upside down for the following step. - Page 7 UPPER FRAME ASSEMBLY 10. Slide the Upper Pole into the Center Plastic Holder by sliding the metal plate into the 2 side channels until it is locked into place as shown in Figure 11. Center Plastic Holder Metal Plate on Upper Pole Figure 11 ATTACH THE UPPER FRAME TO THE LOWER FRAME 11.
- Page 8 PLACE MATTRESS BOARD & MATTRESS PAD 12. Place the mattress board into the bassinet. Make sure that the locking mechanism is aligned with the crossbar as shown in Figure 13. 13. Push on the Mattress Board until the locking mechanism clicks into place. Repeat on the other side as shown in Figure 14 14.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE Thank you for choosing Dream On Me and congratulations on joining The DOM Family, a family that has been transforming lives for 30 years! We appreciate your feedback and wish you the very best in the coming years with your new addition. -
Page 10: Disassembly And Storage
REMOVE THE BASSINET FABRIC FOR WASHING Unzip them and remove the 4 zippers under the fabric around the bassinet for washing. CLEANING Fabric Assembly: Bassinet fabric may be removed for cleaning. Always follow instructions for removal and applying. Bassinet fabric may be hand washed in mild detergent. Never use bleach. Dry and iron on low setting for best appearance.
