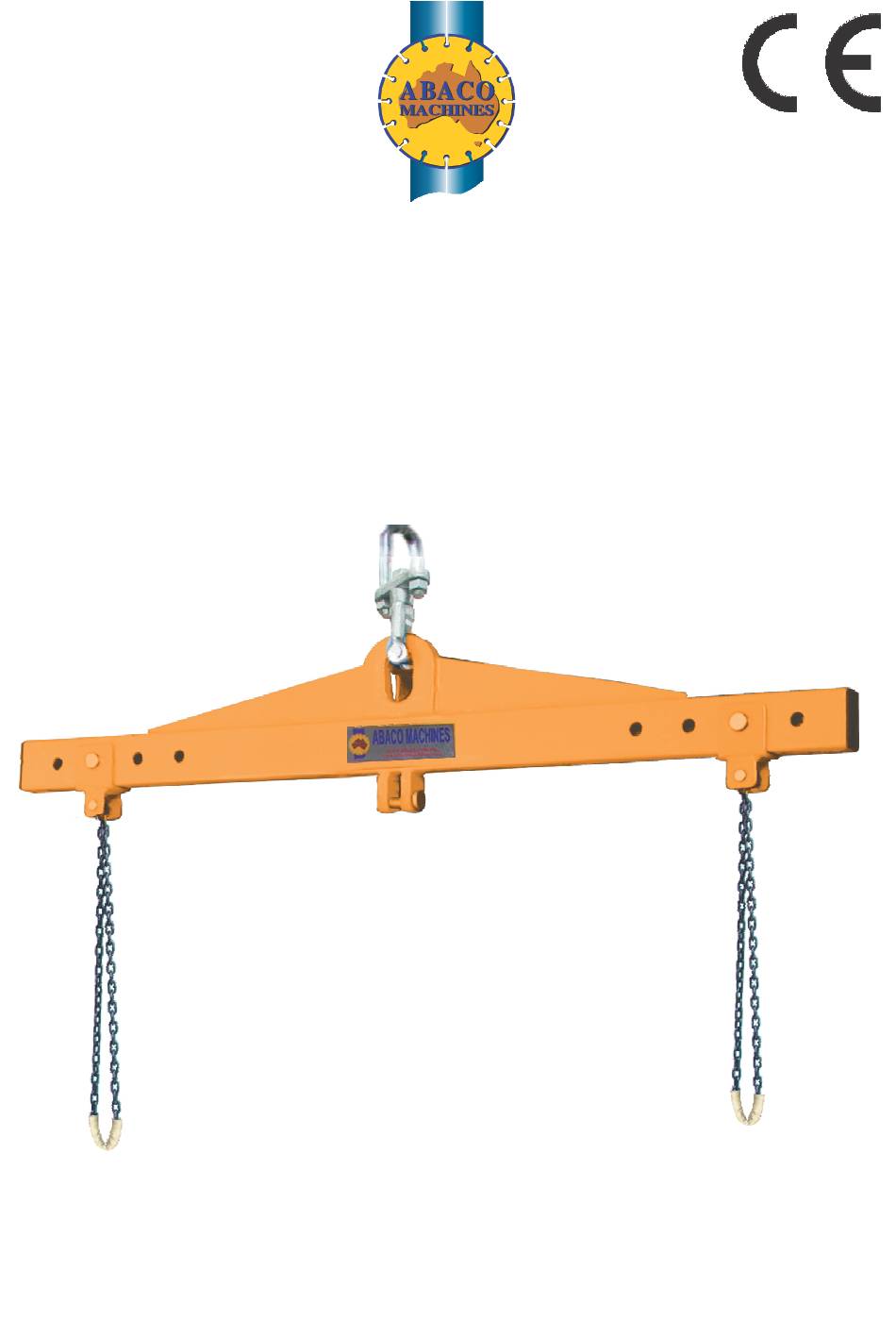

- Page 1 ABACO MACHINES OPERATION MANUAL ABACO SPREADER B (ASB056M3) ABACO MACHINES (USA) 14508 S. Garfield Ave., Paramount, CA 90723, USA Tel : 310-532-0366 Fax : 310-532-0499 Email : sales@abacomachines.com Website : www.abacomachines.com...
- Page 3 OPERATION MANUAL APPLICABLE MODEL of this ABACO SPREADER BAR M3: ASB056M3...
-
Page 4: Table Of Contents
INDEX Item Pages General ................ 3 Structure ..............3 III Assembly Instruction ........... 5 IV Instruction For Use ............7 Inspection, Maintenance & Repair ......11 VI Warranty ..............11 Warranty Certificate ............ 12 Note: - Please read this operation manual carefully before using the device. -
Page 5: General
GENERAL: - Spreader Bar M3 is a useful tool for supporting workers when they want to move stones from one place to another. - The Bar is hung by a swivel shackle. By this way, the users can rotate the slab easily and safely. - There are four gaps to hook two loading chain with the bar for supporting the size and weight of the slab. - Page 6 SPECIFICATION: - Length (A): 55 ⅛ ” (1400mm) - Width (B): 3 ⁹⁄₁₆ ” (91mm) - Height (C): 13 ¾” (350mm) - Net Weight: 96.8 lbs (44 kg) - Work Load Limit: 7700 lbs(3500 kg) ” ¹¹⁄₁₆” - Length Range: 30 ~ 49 ⅝...
-
Page 7: Assembly Instruction
III. ASSEMBLY CONSTRUCTION:... - Page 8 POS. DESCRIPTION CODE QTY. Main Bar ASB056M3-01 ASB056M3-02 Snap Pin ASB056M3-03 Circlip Ø20 ASB056M3-04 Aluminum Washer Ø20xØ28x1 ASB056M3-05 Hanging Pad ASB056M3-06 Roller ASB056M3-07 Pin, Roller ASB056M3-08 Lock Pin ASB056M3-09 V-Block ASB056M3-10 Chain ASB056M3-11 Washer Ø10xØ24x3 ASB056M3-12 Nut M10 ASB056M3-13 Rubber Cap...
-
Page 9: Instruction For Use
INTRUCTION FOR USE How to use the Spreader Bar M3 Step 1: Hang Spreader bar M3 with the forklift truck by the swivel shackle. (pic 1). Pic 1... - Page 10 Step 2: Pick the gaps for loading chains to the bar depending on the slab's size. (pic 2). Lock the pin Pic 2...
- Page 11 Step 3: Handle the loading chains for supporting the slab's size and make sure the centre of gravity in the middle between two loading chains. (pic 3). Pic 3...
- Page 12 Step 4: Lift and move the slab (pic 4). Lock the chain Pic 4...
-
Page 13: Inspection, Maintenance & Repair
V. INSPECTION, MANTENACE & REPAIR: - Regularly check the loading chains. - Set up the maintenance inspection regularly. - Always reserve replacement parts for maintenance. VII. WARRANTY: At the time of delivery, it is necessary to inspect the Abaco Spreader Bar M3 to make sure that has not been damaged during shipment. -
Page 14: Warranty Certificate
WARRANTY CERTIFICATE You are kindly requested to read the following carefully. PERIOD The warranty starts from the date of purchase (date on distributors invoice). Warranty is valid for a period of twelve (12) months WARRANTY This warranty is limited only to provide replacements of the parts recognized by the Company as defective (excluding worn- outs and consumables.) The Company is not responsible for any misuse or abuse of the... - Page 15 THIS MANUAL SHALL BE REVISED WITHOUT PRIOR NOTICE FOR IMPROVEMENT PURPOSES Copyright: Abaco Machines. DO NOT COPY AND/OR QUOTE THE CONTENTS WITHOUT PRIOR WRITTEN CONSENTS OF A BACO ACHINES...
