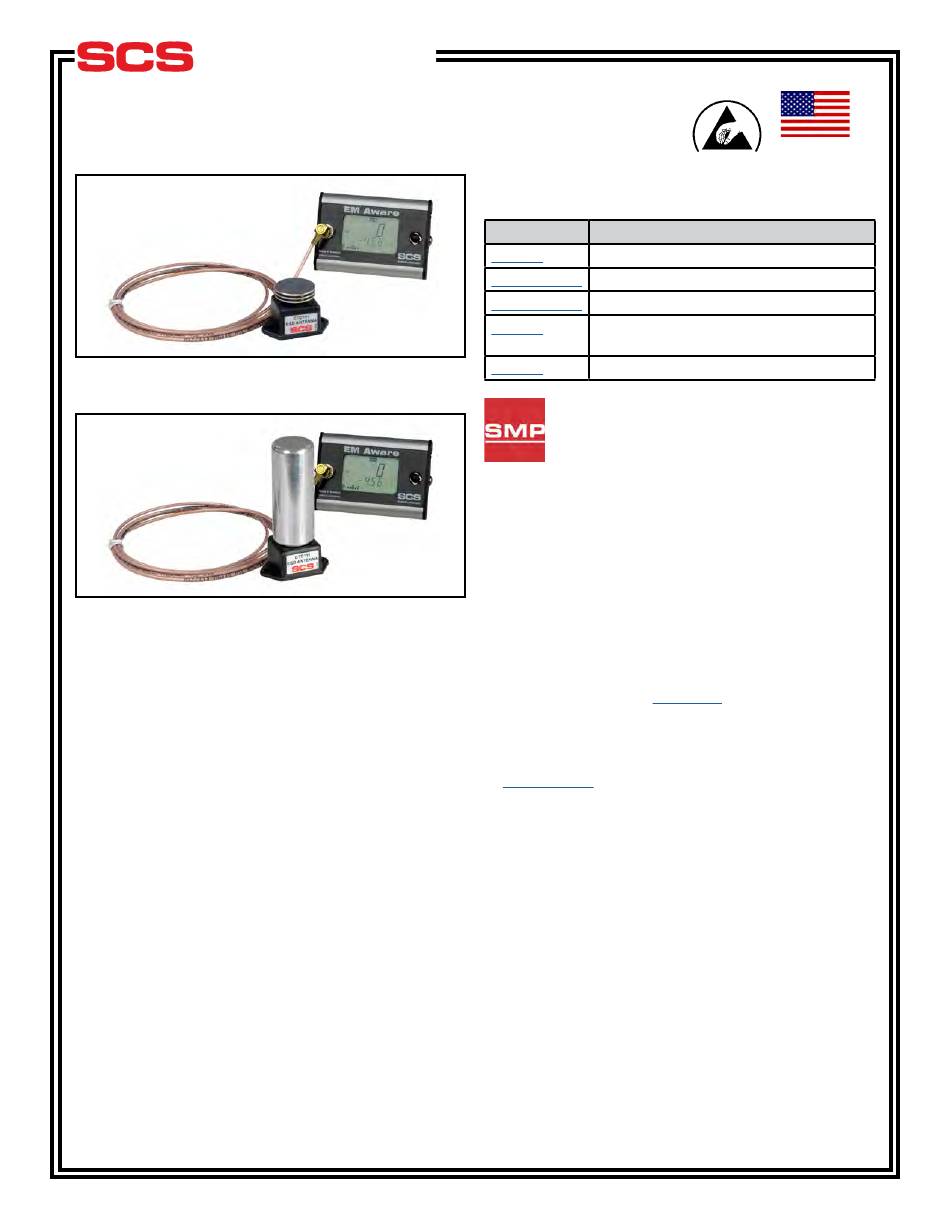

SCS 770066 User Manual

EM Aware Monitor
Installation, Operation and Maintenance

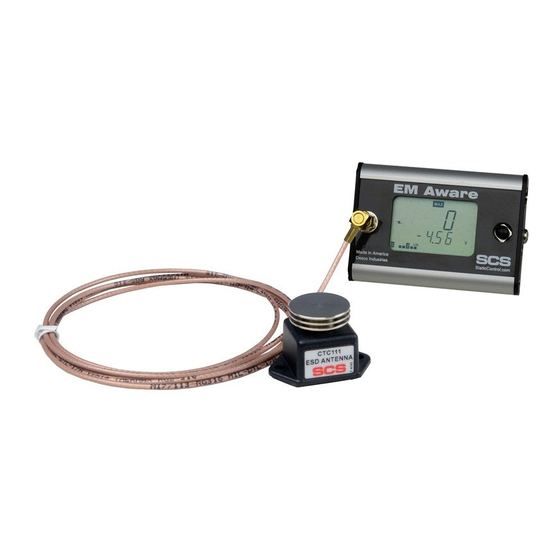

Figure 1. SCS 770066 EM Aware Monitor with standard
antenna
Figure 2. SCS 770066 EM Aware Monitor with ionizer
antenna
Description
The SCS 770066 EM Aware Monitor monitors three key
parameters that keep you aware of critical symptoms
of ESD problems: ESD events, change in static voltage
field, and ionizer performance*. The thresholds for
these parameters are fully adjustable. The monitor is
constructed of an aluminum enclosure, LCD display,
control joystick, remote antenna, relay terminal and
Ethernet connectivity.
ESD events generate electromagnetic radiation.
The stronger the ESD event, the stronger the
electromagnetic radiation. The EM Aware Monitor is a
miniature radio receiver tuned to detect and measure
the unique waveform generated by an ESD event.
The EM Aware Monitor meets the Continuous Monitor
requirements of ANSI/ESD S20.20 in accordance with
ESD TR1.0-01 and ANSI/ESD STM3.1. It meets the
recommendations of ESD Handbook ESD TR20.20
which includes "if the products that are being produced
are of such value that knowledge of a continuous,
reliable ground is needed, and then continuous
monitoring should be considered or even required".
*The ionizer must have a balance (offset voltage) of
±40 V or better.
TB-9097 Page 1 of 19 May 2019
Find Quality Products Online at:
USER GUIDE TB-9097
GlobalTestSupply
www.
The EM Aware Monitor and its accessories are available
as the following item numbers:
Item Description
770066 EM Aware Monitor
CTC111-6FT Antenna, Room Temperature, 6 ft.
CTC118-6FT Antenna, High Temperature, 6 ft.
770064 Power Adapter, 100-240 VAC Input,
7.5 VDC 1.5 A Output, All Plugs
770055 SMP Software
Static Management Program
The SCS 770066 EM Aware Monitor is compatible
with SCS Static Management Program (SMP). SMP
continuously monitors your ESD process control system
throughout all stages of manufacturing. SMP captures
data from SCS workstation, equipment and ESD event
continuous monitors and provides a real-time picture of
critical manufacturing processes. All activity is stored
into a database for on-going quality control purposes.
SMP allows you to pinpoint areas of concern and
prevent ESD events. Quantifiable data allows you to see
trends, become more proactive and prove the efficiency
of your ESD process control system.
SMP is sold separately. Click here
Packaging
1 EM Aware Monitor
1 CTC111-6FT Antenna with 6 ft. Cable
1 Interchangeable Ionizer Antenna
1 Monitor Ground Cord (Green and Yellow)
2 Ring Magnets
1 Ring Terminal
2 Screw, Flat Head, 4-40 x 3/8"
1 Screw, Pan-Head, 6-32 x 1/4"
1 Star Washer
1 Power Adapter, 7.5 VDC, with interchangeable plugs
(North America, UK/Asia, Europe, China)
1 Certificate of Calibration
.com
Made in the
United States of America
to learn more.
© 2019 DESCO INDUSTRIES INC
Employee Owned
