Summary of Contents for technoac Success CBI-116N
-
Page 2: Table Of Contents
Table Page of Contents Introduction ......................3 1. The general description ..................3 Specification АP-014 ....................4 Receiver AP-014 ....................5 2.1 General view and buttons mapping ..............5 2.2 Receiver control and indication modes ............6 ............3. Electromagnetic sensor EMD-247 ............. 4. Search the route in passive mode 4.1 Route location methods .................10 ................ -
Page 3: Introduction

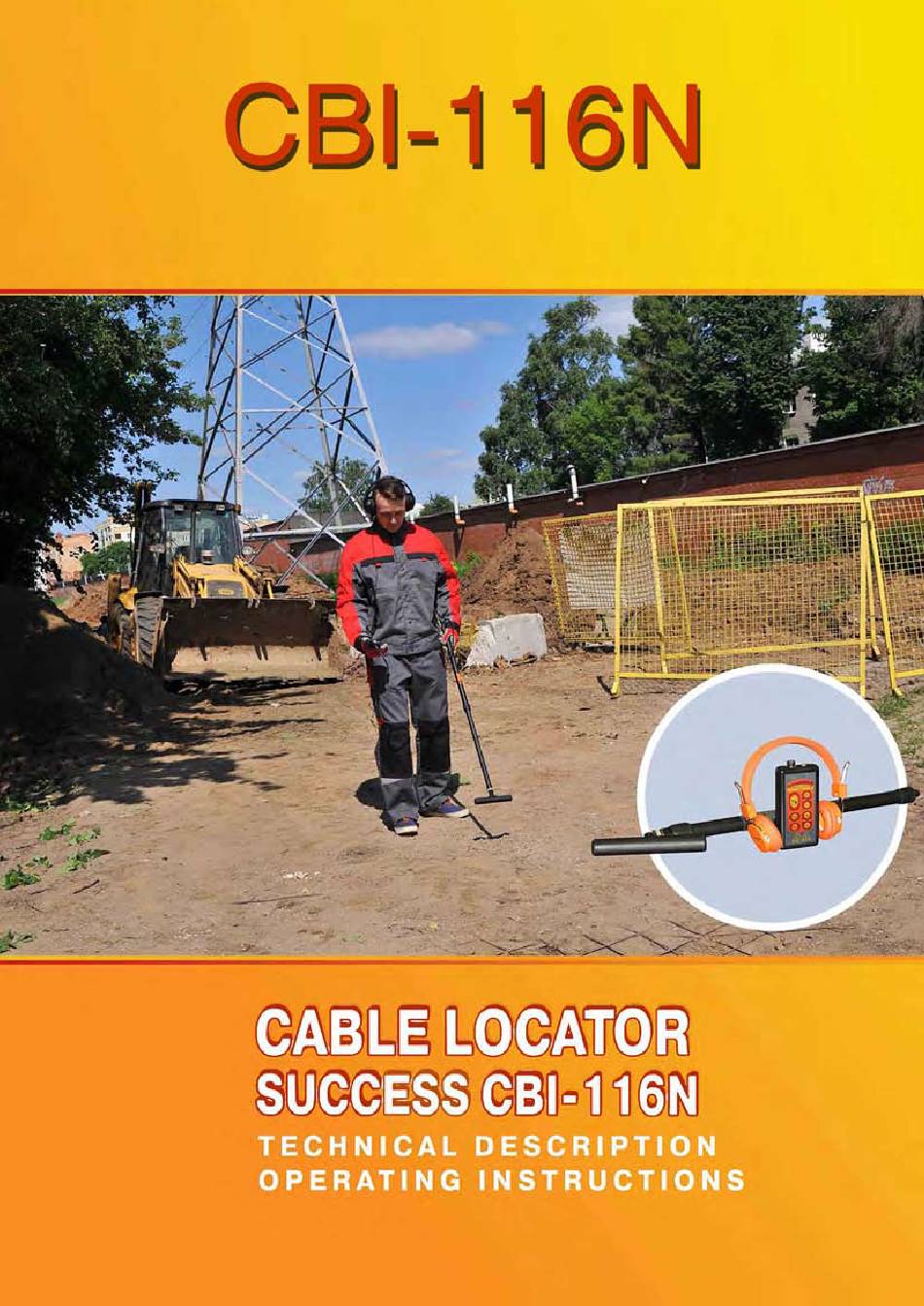

Introduction The Cable locator «Success CBI-116N» is the detective-diagnostic set, intended to survey a terrain before digging or excavation, locating electrical cables and electrically conductive underground utilities, determination of depth of their occurrence. Benefits of the set - Possibility to use in conditions of low temperatures,... -
Page 4: Specification Аp-014
Specification АP-014 AP-014 receiver Main filter frequency 50 Hz /100 Hz /512 Hz / 1024 Hz Frequencies of the receiver’s filter 8192 Hz / 32768 Hz. «Broadband», (frequency range) 0.05...8.2 KHz Gain factor 100 dB Visual indication LED scale – 7 values. Headphones - natural, filtered and synthesized signal. -
Page 5: Receiver Ap-014

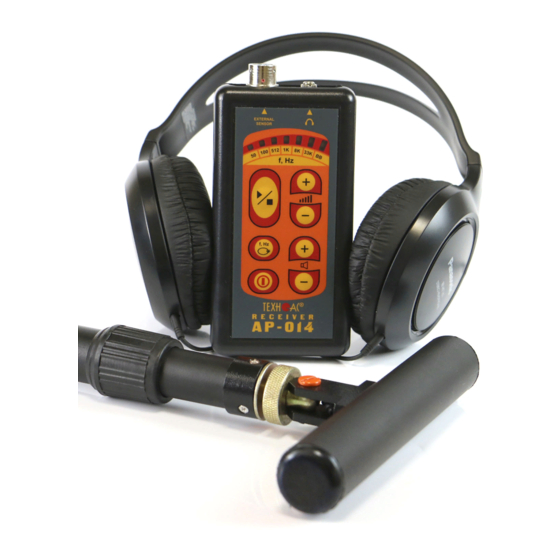

2. Receiver AP-014 Reciever «АP-014» is made in the dimensions of the cell phone, has a built-in micro processor 2.1 General view and buttons mapping. Sensor connector Headphone connector Led scale Pause Sensitivity Frequency and sound modes (>3c) Volume On/Off Batteries Battery cover compartment... -
Page 6: Receiver Control And Indication Modes
2.2 Receiver control and indication modes The receiver can work with acoustics or electromagnetism sensors. The type of the sensor is determined automatically. For an electromagnet sensor there are several reception frequencies. The light emitting diode scale executes indication of several functions: а) this is an indication of a power battery condition, b) a frequency of the received signal is switched in a circle, c) a sensitivity is more-less,... - Page 7 - The choice of the operating frequency. The LED indicators of the receiver on the front panel have inscriptions, corresponding to certain frequencies of the receiver:«50» 50 Hz, «100»: 100 Hz, «512»: 512 Hz, «1k» – 1024 Hz, «8k» – 8192 Hz, «33k» - –32768 Hz, «WB»...
-
Page 8: Electromagnetic Sensor Emd-247
Change of the volume in headphones level does not affect the input level. - The mode «Pause». When pressing the «Pause» button, any audio indication stops and in pressing the light emitting diode indicator displays input level measured at the moment of the «Pause»... -
Page 9: Search The Route In Passive Mode
4. Search the route in passive mode The source of the electromagnetic field in this case are frequency currents 50 Hz in cables under mains voltage and 100 Hz in pipelines with cathodic protection mode, the route search is performed without using the trace generator. -
Page 10: Route Location Methods
4.1 Route location methods 1.The Maximum method This method consists of positioning the electromagnetic sensor in the direction of the magnetic field created by the utility radiation (fig.4.3). EMD sensor must be positioned horizontally and the sensor placed in a plane perpendicular to the cable route. In this case the maximum signal level is observed when the sensor antenna passes directly above the utility line. -
Page 11: Additional Features
5. Additional features 5.1 Task: Indirect electromagnetic mode of depth measuring Equipment used: receiver AP-014, electromagnetic sensor EMD Tip: When determining the depth, one should take into account the terrain. In order to obtain precise results, select flat surface areas. Method: 1.
