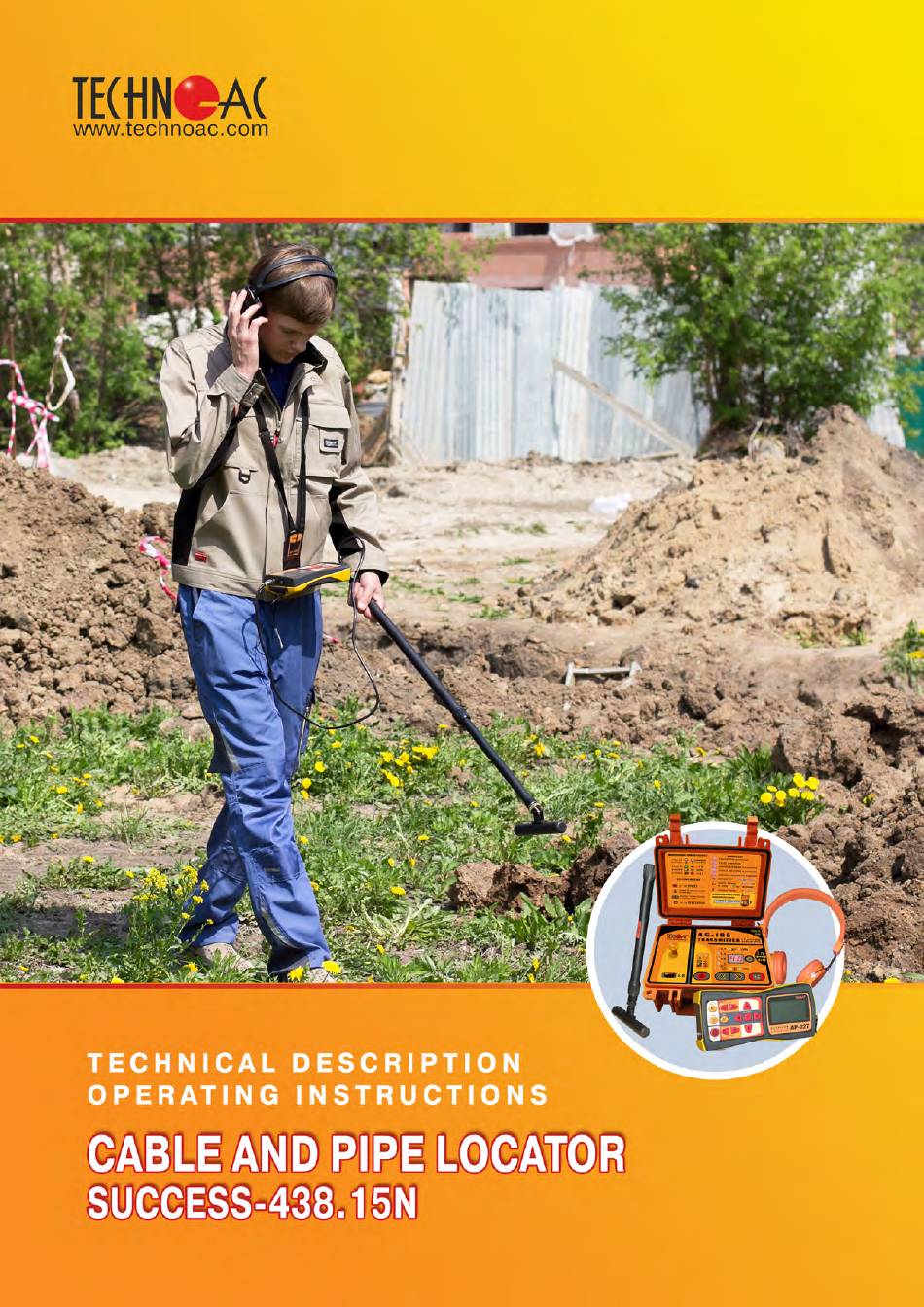

technoac SUCCESS-438.15N Technical Description, Operating Instructions

Cable and pipe locator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUCCESS-438.15N and is the answer not in the manual?

Questions and answers

Related Manuals for technoac SUCCESS-438.15N

Summary of Contents for technoac SUCCESS-438.15N

  • Page 2: Design And Principle Of Operation

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 1. Design and principle of operation Cable and pipe locator «Success АG 438.15N» is designed for: - detection of cables up to 6 m depth - detection of metal pipelines up to 6 m depth - survey the ground before the ground works ( “Broadband”...
  • Page 3 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 2. Receiver AP-027 Appearance and Controls Fig. 2.1 selected parameter adjustment ▲/▼ power on/off button buttons (up/down) frequency button (filter frequency visual indication type button adjustment on/off) sound indication type button LCD screen parameter selection buttons (left/...
  • Page 4 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 2. Set the receiver on the holder 3. Put one end of the holder below protective rubber of the receiver. 4. Put other end of the holder below the second rubber 5. The receiver is ready for the operation.
  • Page 5 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 3. Operation sequence in passive cable route detection mode Used equipment: receiver electromagnetic headphones AP-027 sensor EMD-247 Fig. 3.1 3.1 Connection of sensors and check of the receiver operability 2.1 To set the electromagnetic sensor from 1.
  • Page 6 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 4. In the start window of the receiver display: Check the received signal type as «continuous» (by any of Check accuracy of the buttons ▲/▼) sensor connection.
  • Page 7 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 8. Set the required gain factor of filtered signal to «×1/2/4/8», by pressing buttons ▲/▼ 9. Commence detection or tracing according to the method set in p.4.3, avoiding prolonged input/output overloads 3.3 Route location methods...
  • Page 8 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12. Transmitter AG-105 AUTONOMOUS • POWERFUL • PORTABLE • MEASURING Device introductory information 12.1 Purpose of use and physical configuration The AG-105 is an automatic utility locating transmitter designed for the generation of the propagating electric oscillations in the traces of the buried utilities using electromagnetic method of the trace search.
  • Page 9 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators creates quite intense electromagnetic field under relatively Internal transmitting inductor low energy consumption. There is a possibility to connect the external induction transmitting antenna which produce intense emitting and provide an immediate access to the “buried”...
  • Page 10 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators Colour combinations «U ↔ I». The possibility in principle to raise the output signal level Colour of the glow «U,В» depending on the combination of the indicators colours «U ↔...

  • Page 11: Control Buttons

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12.2.4 «Modes field» in accordance with the operator choice shows operating modes under various load types and different «modulation» options of the output signal. 1)«...
  • Page 12 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12.3. Ways of external commutation Three-pin connector «EXTERNAL SUPPLY» for battery supply or main supply source. As illustrated the rubber cover protects the connector when unused from the external factors.

  • Page 13: Design And Function

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12.5. Design and function Convenient and user-friendly control and indication units with explanations, the elementary control algorithm backed by automation (“intuitive interface”), several protection levels from emergency modes, all these things help any untrained operator to master the device within the shortest period.
  • Page 14 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators NOTE While changing batteries use only all 8 elements of “type C” produced by the same company, from same series and condition (all 8 cells are always operable or inoperable altogether). ALKALINE 1,5V batteries are recommended.

  • Page 15: Sound Signals

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12.8. Sound signals The sound signals correspond with the specific events and conditions. «Welcome tune» consists of 9 notes activating by the device switching on via pressing POWER «...
  • Page 16 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12.1.4 Connect the output of the device to the utility under examination via contact or non- contact (induction) method (in accordance with the chosen utility locating method). The contact method is more efficient for “utility locating”...
  • Page 17 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators If the utility forms part of the complete electrical circuit “source – utility – consumer” (as per illustration) then in case of the specific electric properties of these chain loops the utility locating via the “non-contact”...
  • Page 18 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 13.2. Settings 12.2.1 Open the cover. Turn on the device by pushing POWER « » button. 12.2.2 After switching on of the device “on default” the indicator POWER SUPPLY VOLTAGE «...
  • Page 19 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 12.3.4 After that manual alterations (by LESS/ MORE « » buttons) of the output signal voltage are possible in the range of provided by the automation. 13.4. Internal transmitting inductor «In»...

  • Page 20: External Power Sources

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 13.6. Transmitting induction “clamp” (extra accessory for “non-contact” connection) 12.6.1 In case of several nearby utilities for specially efficient current inducing specifically into one of them or for “non-contact” connection to the utility under voltage it is recommended to use transmitting induction “clamp”...

  • Page 21: Electromagnetic Compatibility

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 2) Mains power supply adapter АG114М.02.020 (based on GS60A15-P1J «MEAN WELL») energizes from the mains with the voltage of 220V and supply a direct-current voltage of 15V ±...
  • Page 22 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators Appendix A Receiver AP-027 Technical specifications Parameter Tracing Leak detection Type of accepted signal Uninterrupted /pulse Uninterrupted signal Range limitation Central frequency of quasi- “below” resonant filter 50..60 Hz,100….450 0,1/0,15/0,21/0,31/0,45/0,65/0,95/1, Frequencies of the receiver’s Hz through 50 Hz,...
  • Page 23 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators Transmitter AG-105 Technical specifications The frequencies of the continuous «Co» or pulse «Pu» signal, Hz ± 0,1% - «kHz» Load «clips» or «clamp» 512 - «0.5»...

  • Page 24: Operational Characteristics

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators Operational characteristics An automatic control over Proportional control over the output power depending on the “energy potential” the output voltage during of the power supply source. oscillation process Automatic shutdowns of the At power supply voltage in the “stop”...

  • Page 25: Switching-On The Receiver

    DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators Appendix B Switching-on the receiver 1. Switching-on the receiver When the receiver is switched on, the display shows the following sequence: manufacturer’s trademark (logo) «TECHNO-AC», Business card of the Receiver with the Software version number and the Start window (fig.А.1).
  • Page 26 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 3. Scale window When measurement mode is selected (except the two-frequency), Scale working window appears first fig.А.3. Filtering Displays the frequency range scales with numerical and graphical representation of the pass band During work with AD: - pass band filter...
  • Page 27 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 4. Graph window The graph displays the changes in processed signal levels over time and moves at constant speed from right to left. The graph shows processed signal - in mode - change in the level of processed valid signal over time...
  • Page 28 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 6. Power range spectrum window The window is available in the electromagnetic mode of broadband and can be called for by the additional touch of a button .
  • Page 29 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators 9. Audio indication The sound is output to the headphones or the built-in sound transmitter. Three categories of sound are used: - «Natural» without filtering (broadband) to the phones; - «Natural»...
  • Page 30 DEVELOPMENT, PRODUCTION, DELIVERY Detection and locating, measuring equipment, water leak detectors, cable locators, cable and pipe locators Appendix C Transmitter AG-105 Indication Electrical power supply field Output parameters field Battery holder with the handle in the One of the three categories of VOLTAGE «U, V», CURRENT «I, А»...
